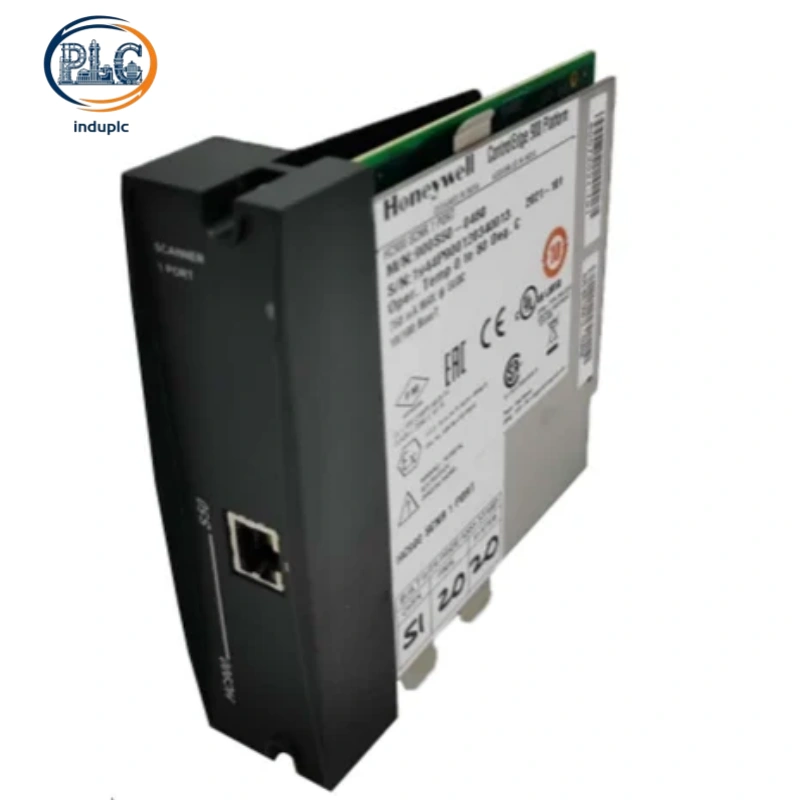

Honeywell 900C30‑0460‑00 High-Performance CPU Controller Module for ControlEdge HC900 Control System

1. Hardware Structure and Functional Configuration of Honeywell 900C30‑0460‑00

The Honeywell 900C30‑0460‑00 is a high-performance CPU controller module belonging to the Honeywell HC900 series, designed as the core processing unit for ControlEdge HC900 industrial control platforms. The Honeywell 900C30‑0460‑00 serves as the central “brain” of the HC900 system, responsible for executing complex control logic, managing I/O operations, and facilitating seamless communication across the automation network. The Honeywell 900C30‑0460‑00 features a compact, rugged industrial form factor optimized for seamless integration into standard HC900 controller chassis, with reinforced casing to withstand harsh industrial environments characterized by high vibration, electromagnetic interference, and extreme temperatures.

The Honeywell 900C30‑0460‑00 adopts a rack-mounting structure that fits perfectly into designated slots of HC900 control cabinets without additional adapters or modifications. The front panel of the Honeywell 900C30‑0460‑00 is equipped with clear status indicators, allowing operation and maintenance personnel to quickly identify CPU operation status, communication abnormalities, and system faults. The module supports both non-redundant and split-rack redundant architectures, enabling flexible configuration to meet different reliability requirements of industrial control systems. The Honeywell 900C30‑0460‑00 is compatible with a wide range of HC900 I/O modules and power supply components, supporting easy system expansion and hardware replacement for existing automation setups.

2. Core Performance and Functional Principles of Honeywell 900C30‑0460‑00

The Honeywell 900C30‑0460‑00 is built with a 64-bit industrial CPU with a 1.2 GHz clock speed, delivering exceptional processing power for complex industrial control tasks. The Honeywell 900C30‑0460‑00 is equipped with 2 GB DDR3 RAM and 4 GB NAND flash memory, along with 32 GB eMMC data storage, ensuring efficient data processing and reliable data retention for critical industrial operations. The module executes control logic synchronously with the HC900 system scan cycle, ensuring real-time and accurate processing of I/O signals and control commands, and supports up to 1920 universal analog inputs (UOI) to meet the demands of large-scale control systems.

Core Hardware Parameters

• Core Function: Central processing unit (CPU) for HC900 system, supporting complex control logic and large-scale I/O management

• Processor Type: 64-bit industrial CPU with 1.2 GHz clock speed

• Memory Configuration: 2 GB DDR3 RAM, 4 GB NAND flash memory, 32 GB eMMC data storage

• I/O Capacity: Supports up to 1920 universal analog inputs (UOI) and 384 digital outputs

• Communication Interfaces: Supports Ethernet (Modbus TCP, Ethernet/IP), serial communication (Modbus RTU, RS-485), and PROFIBUS protocols

• Redundancy Support: Compatible with non-redundant and split-rack redundant architectures

• Power Supply: 24 VDC nominal (18–32 VDC range), power consumption of 12 W

• Operating Temperature Range: -40℃ to +70℃, non-condensing humidity 5% to 95%RH

3. Industry Adaptation, System Compatibility and Maintenance Points of Honeywell 900C30‑0360‑00

The Honeywell 900C30‑0460‑00 is fully compatible with the ControlEdge HC900 process control system, and can be combined with HC900 I/O modules, power supply components, and operator interfaces to build a complete industrial control system. The Honeywell 900C30‑0460‑00 supports configuration through Honeywell’s Designer software, allowing users to set control logic, configure I/O parameters, and adjust system thresholds efficiently. The module is also compatible with Experion PKS systems, enabling seamless integration into Honeywell’s industrial control ecosystem and reducing engineering and maintenance costs.

The Honeywell 900C30‑0460‑00 is widely applied in industrial scenarios requiring high-performance processing and large-scale I/O management, such as petroleum refining, pharmaceutical processing, boiler control, water treatment, and power generation. The Honeywell 900C30‑0460‑00 executes critical control logic, manages I/O signal transmission, and ensures the safe and stable operation of industrial processes. Daily maintenance of the Honeywell 900C30‑0460‑00 includes regular inspection of connection tightness, firmware updates, and system diagnostic checks. The module supports hot-swapping in redundant configurations, minimizing downtime during maintenance and ensuring uninterrupted production operations.
