Honeywell 900C30‑0360‑00 C30 SIL CPU Controller Module for ControlEdge HC900 Control System

1. Hardware Structure and Functional Configuration of Honeywell 900C30‑0360‑00

The Honeywell 900C30‑0360‑00 is a high-performance C30 SIL-rated CPU controller module belonging to the Honeywell HC900 series, designed as the central processing unit for ControlEdge HC900 industrial control platforms. The Honeywell 900C30‑0360‑00 serves as the core “brain” of the HC900 system, responsible for executing control logic, managing I/O operations, and facilitating communication across the automation network. The Honeywell 900C30‑0360‑00 features a compact, rugged industrial form factor optimized for seamless integration into standard HC900 controller chassis, with reinforced casing to withstand harsh industrial environments characterized by high vibration and electromagnetic interference.

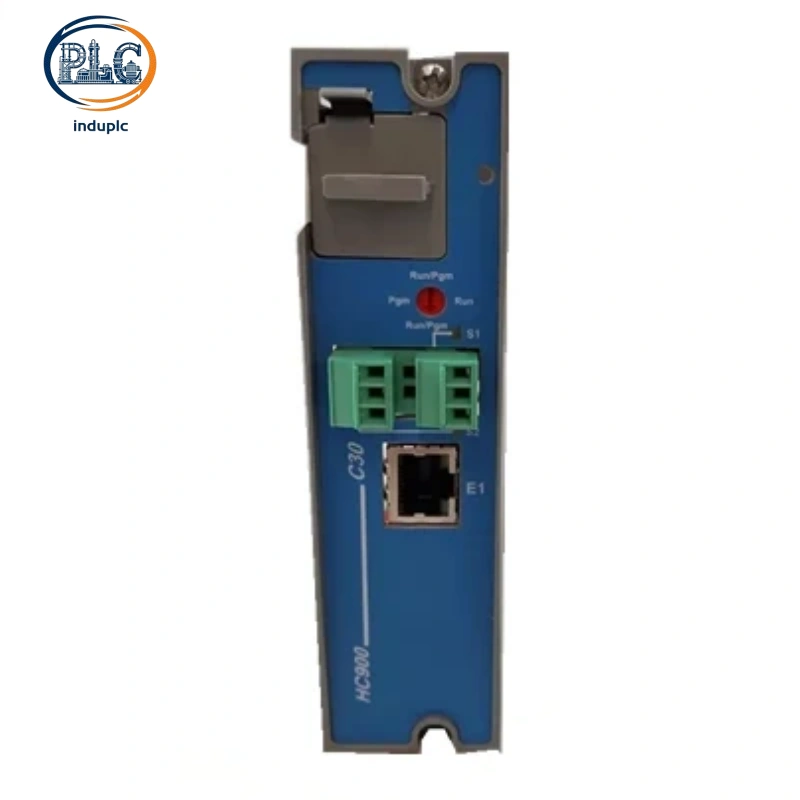

The Honeywell 900C30‑0360‑00 adopts a rack-mounting structure that fits perfectly into designated slots of HC900 control cabinets without additional adapters or modifications. The front panel of the Honeywell 900C30‑0360‑00 is equipped with clear status indicators, allowing operation and maintenance personnel to quickly identify CPU operation status, communication abnormalities, and system faults. The module supports both non-redundant and split-rack redundant architectures, enabling flexible configuration to meet different reliability requirements of industrial control systems. The Honeywell 900C30‑0360‑00 is compatible with a wide range of HC900 I/O modules and power supply components, supporting easy system expansion and hardware replacement for existing automation setups.

2. Core Performance and Functional Principles of Honeywell 900C30‑0360‑00

The Honeywell 900C30‑0360‑00 integrates both standard process control and Safety Instrumented Functions (SIF), making it suitable for both conventional control and safety-critical industrial applications. The Honeywell 900C30‑0360‑00 supports up to 400 function blocks, with a capacity of 96 universal analog inputs or 192 high-level analog inputs, enabling efficient handling of complex control tasks and large-volume data processing. The module executes control logic synchronously with the HC900 system scan cycle, ensuring real-time and accurate processing of I/O signals and control commands.

Core Hardware Parameters

• Core Function: Central processing unit (CPU) for HC900 system, integrating process control and safety instrumented functions

• Function Block Capacity: Up to 400 blocks

• Analog Input Capacity: 96 universal analog inputs / 192 high-level analog inputs

• Communication Interfaces: Supports Ethernet (Modbus TCP) and serial communication capabilities

• Redundancy Support: Compatible with non-redundant and split-rack redundant architectures

• Power Supply: Derived from HC900 rack backplane power supply, compatible with standard 24VDC industrial power systems

• Operating Temperature Range: -25℃ to +70℃, non-condensing humidity 5% to 95%RH

• Safety Rating: SIL-capable, compliant with industrial safety standards for critical control applications

3. Industry Adaptation, System Compatibility and Maintenance Points of Honeywell 900C30‑0360‑00

The Honeywell 900C30‑0360‑00 is fully compatible with the ControlEdge HC900 process control system, and can be combined with HC900 I/O modules, power supply components, and operator interfaces to build a complete industrial control system. The Honeywell 900C30‑0360‑00 supports configuration through Honeywell’s Designer software, allowing users to set control logic, configure I/O parameters, and adjust safety function thresholds efficiently. The module is also compatible with Experion PKS systems, enabling seamless integration into Honeywell’s industrial control ecosystem and reducing engineering and maintenance costs.

The Honeywell 900C30‑0360‑00 is widely applied in industrial scenarios requiring both process control and safety functions, such as petroleum refining, pharmaceutical processing, boiler control, water treatment, and power generation. The Honeywell 900C30‑0360‑00 executes critical control logic, manages I/O signal transmission, and ensures the safe and stable operation of industrial processes. Daily maintenance of the Honeywell 900C30‑0360‑00 includes regular inspection of connection tightness, firmware updates, and system diagnostic checks. The module supports hot-swapping in redundant configurations, minimizing downtime during maintenance and ensuring uninterrupted production operations.
