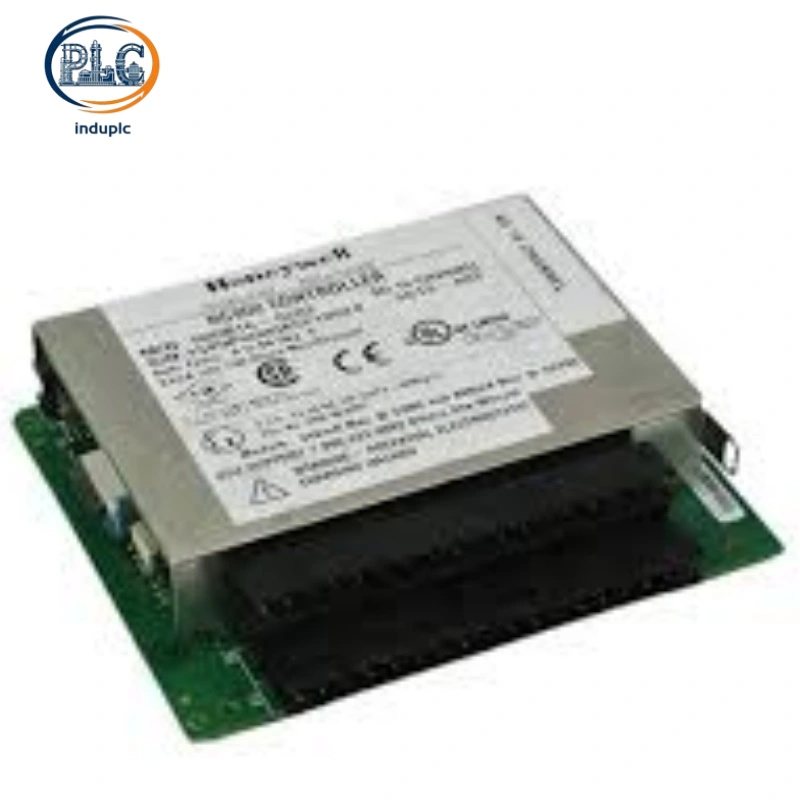

Honeywell 900B16‑0202 16-Channel Analog Output Module for ControlEdge HC900 Control System

1. Hardware Structure and Channel Configuration of Honeywell 900B16‑0202

The Honeywell 900B16‑0202 is a high-performance analog output module belonging to the Honeywell HC900 series, specifically designed for converting digital control signals into analog output signals for industrial field devices such as control valves, actuators, and variable frequency drives. The Honeywell 900B16‑0202 is equipped with 16 isolated output channels, each supporting 4-20mA DC current output (with a range of 0 to 21.0 mA), ensuring stable and precise signal transmission to meet diverse industrial control requirements. Each channel features independent isolation protection, and the module’s internal circuit is reinforced with anti-interference design to prevent signal distortion caused by on-site electromagnetic interference.

The Honeywell 900B16‑0202 adopts a compact rack-mounting structure, which can be seamlessly inserted into the standard I/O rack slots of the HC900 system without additional adapters or modifications. The front panel of the Honeywell 900B16‑0202 is equipped with clear status indicators for each channel, allowing operation and maintenance personnel to quickly identify channel abnormalities, signal output faults, and bus communication issues. The module’s casing is made of rugged industrial materials, with moisture-proof, vibration-resistant, and dust-proof treatments, making it suitable for harsh industrial environments such as petrochemical refineries, pharmaceutical workshops, and power plants.

2. Signal Output Principle and Core Performance Parameters of Honeywell 900B16‑0202

The Honeywell 900B16‑0202 adopts a high-precision digital-to-analog conversion mechanism, which synchronizes with the HC900 main controller’s scan cycle to ensure real-time and accurate conversion of digital control signals into analog output signals. The Honeywell 900B16‑0202 features a minimum resolution of 12-bit (13+ bits in actual operation) and a full-scale accuracy of ±0.1%, ensuring that the output signal can precisely reflect the control requirements of the main controller. The module supports a signal refresh rate of 20 ms for complete channel updates, enabling timely adjustment of field device status to meet the needs of real-time process control.

Core Hardware Parameters

• Available Output Channels: 16 isolated analog output channels

• Supported Signal Specifications: 4-20mA DC current (0 to 21.0 mA range)

• Resolution: Minimum 12-bit (13+ bits in actual operation)

• Accuracy: ±0.1% full scale

• Load Capacity: 0-850 ohm load resistance

• Power Supply: Derived from 24VDC power supply of the HC900 rack backplane (18–36 VDC external power supply range)

• Operating Temperature Range: -25℃ to +70℃, non-condensing humidity 5% to 95%RH

• Protection Mechanisms: Short-circuit and overload protection for each channel

3. Industry Adaptation, System Compatibility and Maintenance Points of Honeywell 900B16‑0202

The Honeywell 900B16‑0202 is fully compatible with the ControlEdge HC900 process control system, and can be combined with HC900 main controllers, digital I/O modules, and power supply components to build a complete industrial control system. The Honeywell 900B16‑0202 supports configuration through the Designer software, allowing users to adjust signal ranges, set output thresholds, and configure fault alarm parameters for each channel independently. The module is also compatible with Experion PKS systems, enabling seamless integration into Honeywell’s industrial control ecosystem.

The Honeywell 900B16‑0202 is widely applied in industrial scenarios such as petroleum refining, pharmaceutical processing, boiler control, water treatment, and building material production. The module converts digital control signals from the HC900 controller into analog signals to drive field devices, realizing precise control of process parameters such as pressure, flow, and temperature. Daily maintenance of the Honeywell 900B16‑0202 includes regular inspection of terminal wiring tightness, cleaning of circuit board dust, and calibration of channel output accuracy. The module supports hot-swapping, so the HC900 control system does not need to be shut down during fault replacement, ensuring uninterrupted production operations.
