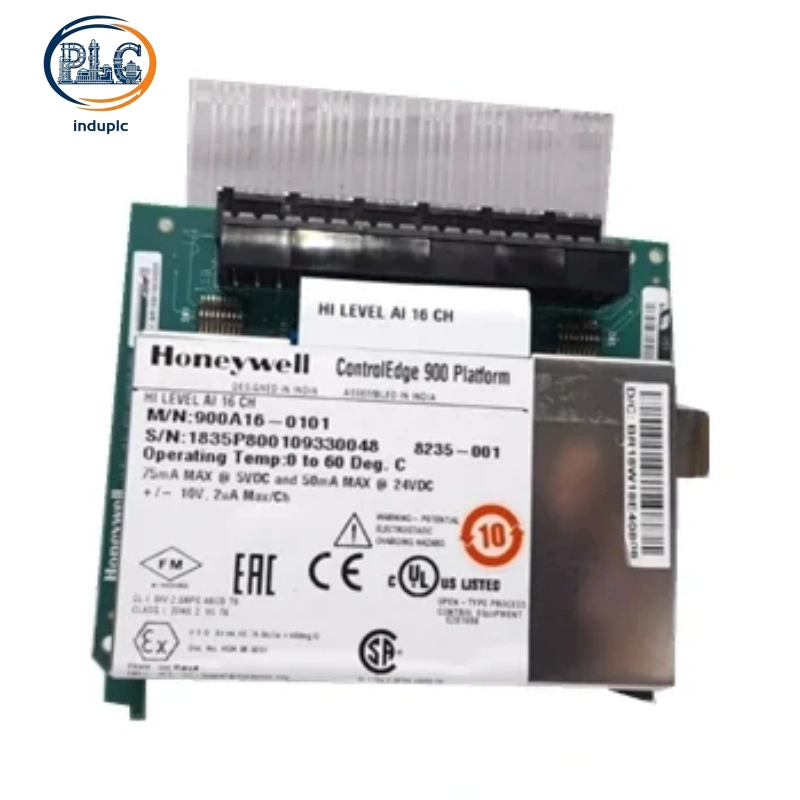

Honeywell 900A16‑0101 16-Channel High-Level Analog Input Module for ControlEdge HC900 Control System

1. Hardware Structure and Channel Configuration of Honeywell 900A16‑0101

The Honeywell 900A16‑0101 is a high-performance analog input module belonging to the Honeywell HC900 series, specifically developed for analog signal acquisition from pressure, flow, level, and temperature transmitters in industrial sites. The Honeywell 900A16‑0101 is equipped with 16 fully independent and configurable channels, each supporting two types of conventional industrial signals—4-20mA current and 0-10V voltage—with parameters adjustable individually. Each channel features point-to-point electrical isolation, and the backplane bus is also equipped with an isolation protection structure to prevent surge interference from on-site circuits from damaging the HC900 controller host.

The Honeywell 900A16‑0101 adopts a snap-in rack mounting structure, which can be directly inserted into the standard I/O rack slots of the HC900 system. A green status indicator is located on the front of the Honeywell 900A16‑0101, allowing operation and maintenance personnel to quickly identify channel faults and bus communication abnormalities through the flashing status of the light. The circuit board is reinforced with moisture-proof and vibration-resistant treatments, making it suitable for cabinet environments with fluctuating working conditions such as chemical workshops, boiler rooms, and pharmaceutical factories.

2. Signal Acquisition Principle and Core Performance Parameters of Honeywell 900A16‑0101

The Honeywell 900A16‑0101 adopts an analog-to-digital conversion mechanism that starts synchronously with the HC900 main controller. The analog-to-digital conversion task is executed synchronously with the controller scan cycle, eliminating data transmission delay between the module and the main controller. All analog input channels of the Honeywell 900A16‑0101 adopt a parallel processing mode, which will not slow down the overall scan rate even if more I/O modules are added later, ensuring that the acquisition efficiency will not be reduced during the expansion of large-scale complete control systems.

Core Hardware Parameters

• Available Acquisition Channels: 16 independent high-level analog input channels

• Supported Signal Specifications: 4-20mA DC current, 0-5V / 0-10V DC voltage signals

• Isolation Specifications: Channel-to-channel isolation, channel-to-backplane bus double-layer electrical isolation

• Power Supply: Derived from 24VDC power supply of the HC900 rack backplane

• Operating Temperature Range: -20℃ to +70℃, non-condensing humidity 0-95%RH

3. Industry Adaptation, System Compatibility and Maintenance Points of Honeywell 900A16‑0101

The Honeywell 900A16‑0101 is only compatible with the complete ControlEdge HC900 process control system. It can be matched with the HC900 main controller, digital I/O modules, and power supply components to build a complete SIL-2 grade process control system. The Honeywell 900A16‑0101 supports HART transmitter signal reading, and each channel’s signal type, range upper and lower limits, and fault alarm threshold can be adjusted separately through the Designer configuration software.

The Honeywell 900A16‑0101 is widely applied in industrial scenarios such as petroleum refining, pharmaceutical processing, boiler temperature control, water treatment, and building material kilns. The module collects process values returned by various on-site sensors and provides original signals for host PID adjustment, interlock triggering, and process data recording. Daily maintenance of the Honeywell 900A16‑0101 only requires regular inspection of terminal wiring tightness and cleaning of circuit board dust. The module supports hot-swapping, so the complete HC900 control system does not need to be shut down during fault spare parts replacement, ensuring uninterrupted operation of the production line.
