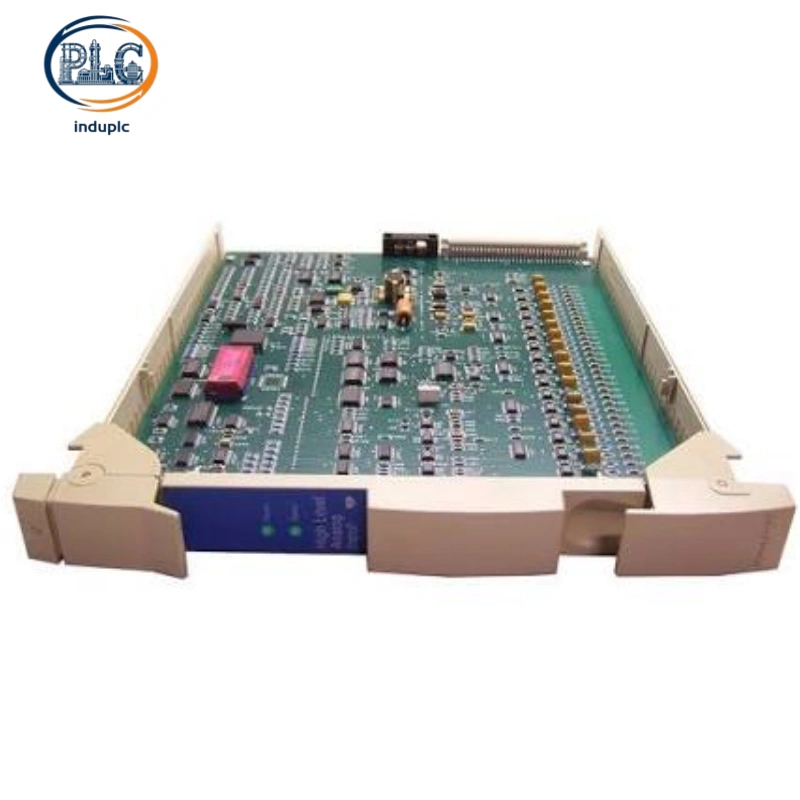

Honeywell MC‑PAIH03 Analog Input Module For Industrial Control Systems

1. Hardware Design And Installation Adaptability

The Honeywell MC‑PAIH03 is a high‑performance analog input module designed for Honeywell industrial control and automation systems. The Honeywell MC‑PAIH03 features a compact industrial form factor, optimized for seamless integration into standard control cabinets and I/O racks, saving valuable space in panel layouts. The Honeywell MC‑PAIH03 adopts a rugged industrial casing with reinforced protection, ensuring stable physical connection and reliable operation even in industrial environments with high vibration and electromagnetic interference. The Honeywell MC‑PAIH03 supports standard rack‑mounting installation, fitting perfectly into designated slots without additional adapters or modifications, simplifying installation and maintenance. The Honeywell MC‑PAIH03 is compatible with a wide range of industrial control hardware, including PLCs, DCS systems, and field devices, enabling easy replacement and system expansion for existing automation setups.

2. Core Communication Performance And Redundancy Capability

The Honeywell MC‑PAIH03 serves as a critical signal acquisition hub for industrial control systems, providing high‑accuracy and reliable analog signal processing for critical industrial operations. The Honeywell MC‑PAIH03 features 16 differential input channels, supporting multiple input ranges including 0 to 5 V, 1 to 5 V, 0.4 to 2 V, and 4‑20 mA (with 250Ω resistor), adapting to diverse field instrument requirements. The Honeywell MC‑PAIH03 is equipped with a 16‑bit A/D converter (14 bits effective), ensuring high resolution and accuracy with a full‑scale accuracy of ±0.075% at normal operating temperatures. The Honeywell MC‑PAIH03 features excellent signal isolation and noise suppression, with 70 dB common‑mode rejection and 60 dB crosstalk suppression, ensuring signal integrity even in electrically noisy industrial environments. The Honeywell MC‑PAIH03 supports efficient signal scanning, with a sampling rate of four samples per second per channel and a full‑channel scan cycle of ≤250ms, delivering timely data for real‑time process monitoring and control.

3. Industrial Application Scenarios And Maintenance Guidelines

The Honeywell MC‑PAIH03 is widely deployed in process industries relying on industrial control systems, including petrochemical refineries, natural gas processing plants, pharmaceutical manufacturing facilities, and power plants. The Honeywell MC‑PAIH03 excels in environments with high electromagnetic interference and fluctuating operating conditions, ensuring stable and accurate signal acquisition for critical control loops. The Honeywell MC‑PAIH03 features a wide operating temperature range of -20°C to +50°C, adapting to diverse industrial environmental conditions, and supports reliable operation in harsh industrial settings. The Honeywell MC‑PAIH03 requires regular preventive maintenance, including channel calibration and connection inspections, to maintain optimal signal acquisition performance. The Honeywell MC‑PAIH03 is designed for easy on‑site replacement, minimizing downtime during maintenance and reducing operational risks for continuous production processes. The Honeywell MC‑PAIH03 works in tandem with other industrial control components, such as PLC modules and communication devices, to form a stable and efficient industrial automation system.
