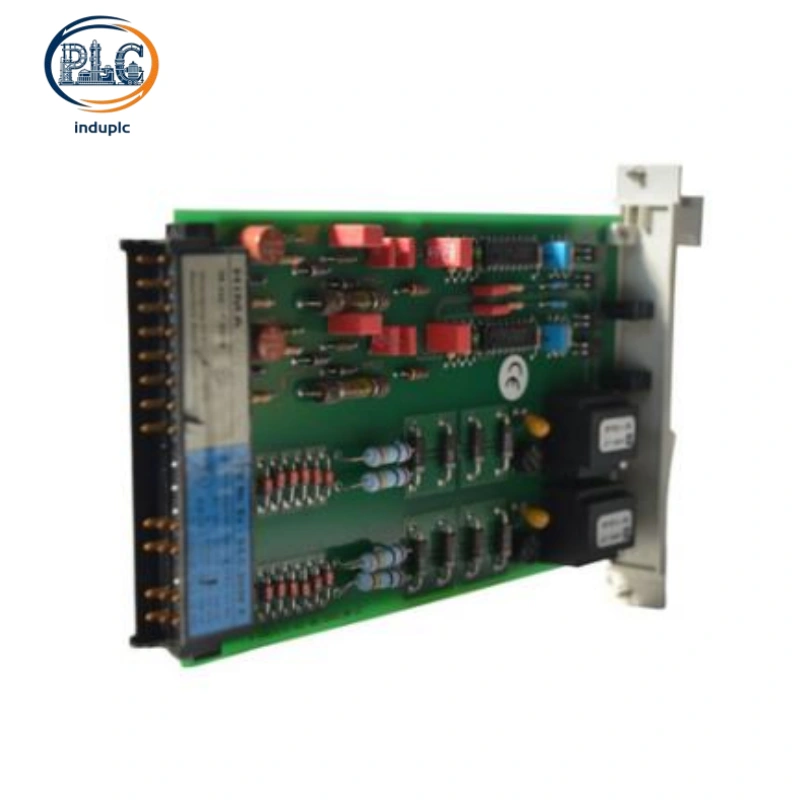

HIMA F3328: 8-Channel Digital Output Safety Module

1. Hardware Composition and Functional Characteristics

The HIMA F3328 is a dedicated 8-channel digital output safety module belonging to HIMA’s safety control series, designed for reliable control signal output in safety instrumented systems (SIS). Focused on high-precision output functionality, it delivers stable control signals for field safety devices, supporting medium-sized industrial safety system configurations. Certified for SIL 3 (IEC 61508) applications, it meets global safety regulations, with a compact, rugged housing engineered for stable operation in standard and moderately harsh industrial environments, supporting seamless integration into HIMA’s safety control platforms.

The hardware of F3328 is built around a dedicated safety output processing core, ensuring efficient and reliable control signal transmission for safety-related applications. Its 8 digital output channels support 24V DC signal levels, with each channel equipped with independent fault detection mechanisms to monitor output status, detect short-circuits and line breaks in real time. The module supports 24V DC power input with a maximum power consumption of 4W, featuring built-in surge protection and EMC filtering to resist electromagnetic interference and voltage fluctuations. With a compact form factor (185mm x 90mm x 25mm) and a weight of 0.25kg, it supports DIN-rail installation for easy integration into standard control cabinets. It operates stably in temperatures ranging from -20°C to +65°C and storage temperatures from -40°C to +85°C, with a non-condensing humidity range of 5%-95%, adapting to diverse industrial conditions. It adopts standard industrial cables and terminal blocks for field wiring, with built-in safety isolation to ensure reliable electrical isolation between the control system and field devices.

2. Compatible Platforms and Supporting Accessories

The F3328 is compatible with HIMA’s H41q and H51q safety systems, supporting seamless integration into medium-sized safety control systems and critical industrial control setups. It is not compatible with older HIMA safety platforms that do not support its dedicated output interface and communication protocols. The module can be configured and programmed via HIMA’s SILworX engineering software, which provides professional tools for channel configuration, fault diagnosis and system integration, with dedicated safety configuration functions to ensure SIL 3 compliance. It supports multiple industrial communication protocols including Ethernet/IP, Modbus TCP and HIMA’s proprietary protocols, enabling seamless data exchange with DCS systems, third-party safety PLCs and monitoring devices. Designed for use with isolated 24V DC SELV power supplies, it minimizes electromagnetic interference while meeting SIL 3 safety requirements, and supports advanced channel-level diagnostics and automatic functional testing for quick fault localization and enhanced operational reliability.

Compatible peripheral accessories and field‑side equipment:

1. HIMA H41q and H51q safety systems (for system integration and logic coordination in medium-sized safety control setups)

2. Isolated 24V DC SELV power supplies (compatible with the module’s power requirements, ensuring stable power input and SIL 3 compliance)

3. HIMA safety CPU modules (for processing input signals and executing safety logic, compatible with F3328’s communication protocols and safety requirements)

4. DIN-rail mounting kits (for secure installation in standard control cabinets, matching the module’s compact form factor)

5. Standard industrial cables and terminal blocks (for reliable field wiring, compatible with the module’s signal requirements and line monitoring specifications)

6. Field devices including control relays, safety valves, and alarm indicators (compatible with the module’s 24V DC output signal requirements, for safety control execution)

Note that the F3328 requires an isolated 24V DC SELV power supply; non-isolated power supplies may cause electromagnetic interference and compromise safety performance, failing to meet SIL 3 compliance. Always use HIMA-certified components and follow the manufacturer’s wiring guidelines to ensure proper safety isolation and global safety compliance. Regularly monitor the module’s automatic functional testing status, and address fault alerts promptly to maintain system safety. Install the module in a controlled environment to avoid exposure to harsh chemicals, excessive moisture or extreme mechanical stress. Configure and monitor channel-level diagnostics regularly to enhance system reliability, facilitate quick fault localization and minimize maintenance downtime. Ensure the output signal specifications match the connected field devices to ensure stable and reliable control operation.

3. Application Scenarios and Practical Solutions

3.1 Medium-Sized Process Industry Safety Control

Medium-sized process industry applications (such as pharmaceutical batch processing, chemical pilot plants and food and beverage production) require dedicated safety output modules to execute control commands for safety valves and alarm devices. Common on-site pain points include limited cabinet space, cost constraints and compliance with SIL 3 safety standards. The F3328’s compact design saves cabinet space, while its 8 output channels meet the needs of medium-sized safety systems, reducing the need for additional modules and lowering system costs. Its SIL 3 certification ensures compliance with strict safety standards, while its stable output capabilities ensure reliable operation in moderately harsh process environments. The module’s advanced diagnostic features enhance fault diagnosis efficiency, reducing maintenance time and minimizing downtime in critical process operations.

3.2 Automated Production Line Safety Control

Automated production lines (such as packaging equipment, material handling systems and small-scale assembly lines) require compact, reliable safety output modules to control safety-related field devices. On-site challenges include limited installation space, high-frequency vibration from equipment operation and the need for flexible system integration. The F3328’s compact, lightweight design enables easy installation in tight control cabinets, while its DIN-rail mounting capability simplifies integration into existing control systems. Its 8 output channels support the control of various safety devices, providing comprehensive safety coverage. The module’s built-in surge protection and EMC filtering ensure resistance to vibration and electromagnetic interference, ensuring stable operation in high-volume production environments.

3.3 Distributed Power Generation Safety Monitoring

Distributed power generation systems (such as small-scale gas turbines and renewable energy power plants) require compact, dedicated safety output modules to control critical safety devices and execute safety shutdown commands. Common on-site pain points include diverse operating conditions, distributed system setups and the need for seamless integration with monitoring systems. The F3328’s wide operating temperature range enables stable operation in diverse environmental conditions, while its compact design facilitates installation in distributed control cabinets. Its 8 output channels support comprehensive control of critical power generation safety devices, complying with SIL 3 standards. Support for standard industrial communication protocols enables seamless integration with DCS and monitoring systems, facilitating centralized safety management. Its advanced diagnostic features ensure reliable operation, reducing the risk of unexpected downtime in power generation systems.
