HIMA F3236: 16-Channel High-Integrity Safety Digital Input Module for Industrial Safety Systems

1. Hardware Architecture And Redundancy Execution Mechanism

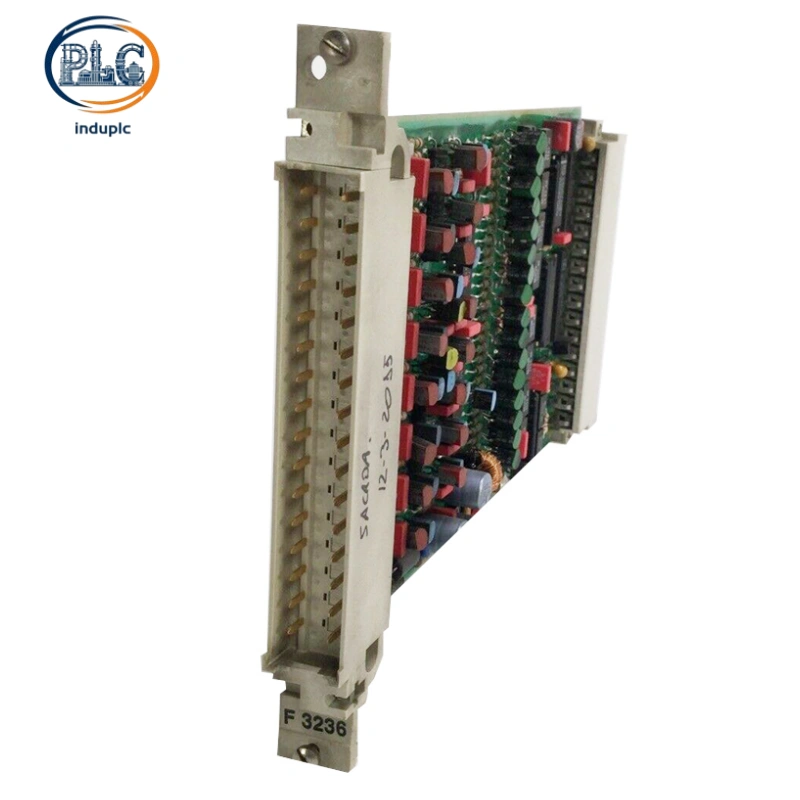

The HIMA F3236 is a high-integrity 16-channel safety digital input module designed for industrial safety and critical control applications, serving as a specialized input component for acquiring safety-related digital signals in safety instrumented systems (SIS) and critical industrial control setups. Unlike compact 8-channel input modules focused on medium-sized systems, the F3236 is optimized for high-capacity signal acquisition with 16 independent digital input channels, balancing high performance and flexibility for large-scale industrial safety systems. It is certified for SIL 3 (IEC 61508) applications and meets TÜV, ATEX II 3G Ex nA IIC T4 Gc, and IEC safety standards, ensuring compliance with global safety regulations. The module features a compact, rugged 4TE HIMatrix rack module design with a robust housing, engineered for long-term stable operation in harsh industrial environments, including hazardous and high-interference settings.

The hardware architecture of the F3236 is built around a high-integrity safety signal processing core, providing efficient and reliable acquisition of safety-related digital signals for critical industrial applications. It features 16 independent digital input channels, supporting both 5V DC and 24V DC signal levels, with current sinking logic compliant with IEC 61131-2 Type 3 specifications, and each channel is equipped with advanced fault detection mechanisms to monitor signal integrity, detect cable breaks, short circuits, and component failures in real time. The module supports dual power input options (5V DC and 24V DC), with a current consumption of 120mA at 5V DC and 200mA at 24V DC, minimizing energy load while ensuring stable operation. It features a compact 4TE standard HIMatrix rack module form factor, supporting hot-swap functionality for online replacement without system shutdown, and has a weight of just 0.12kg, enabling easy integration into standard control cabinets. The F3236 has an operating temperature range of -25°C to +85°C and a storage temperature range of -40°C to +85°C, with an operating humidity range of 5%-95% non-condensing, ensuring adaptability to diverse industrial conditions. It is designed for use with standard industrial cables and terminal blocks for reliable field wiring, with a maximum line resistance of 11Ω per channel and a safe isolation of 2.5 kVrms to protect against electrical interference and ensure safety isolation between field devices and the control system. Its typical switching time is 8ms, ensuring high-speed signal processing for safety-critical applications.

2. Supported Operating Platforms And Full Hardware Compatibility Inventory

The F3236 is compatible with HIMA’s H41q and H51q safety systems, supporting seamless integration into large-scale safety control systems and critical industrial control setups. It cannot be used with older HIMA safety platforms that do not support its 4TE rack module interface and dual power input protocols. The module can be configured and programmed using HIMA’s SILworX engineering software, which provides comprehensive tools for channel configuration, fault diagnosis, and system integration, with dedicated safety configuration functions to ensure compliance with SIL 3 standards. It supports multiple industrial communication protocols, including RS-485 and Ethernet, enabling seamless data exchange with DCS systems, third-party safety PLCs, and monitoring devices. The F3236 is designed to work with both 5V DC and 24V DC isolated SELV power supplies, ensuring compliance with SIL 3 safety standards and minimizing electromagnetic interference. It also supports advanced channel-level diagnostics and hot-swap functionality, enabling quick fault localization and online module replacement for enhanced system reliability and maintenance efficiency.

Compatible peripheral accessories and field‑side equipment:

1. HIMA H41q and H51q safety systems (for system integration and logic coordination in large-scale safety and critical control setups)

2. Isolated 5V DC or 24V DC SELV power supplies (compatible with the module’s dual power input requirements, ensuring safe and stable power input and compliance with SIL 3 standards)

3. HIMA safety CPU modules (for processing the input signals and executing safety logic, compatible with the F3236’s communication protocols and safety requirements)

4. HIMA HIMatrix rack mounting kits (for secure installation in standard control cabinets, compatible with the module’s 4TE rack module form factor)

5. Standard industrial cables and terminal blocks (for reliable field wiring of input channels, compatible with the module’s signal requirements and maximum line resistance specifications)

6. Field devices including emergency stop buttons, safety door contacts, proximity sensors, and pressure switches (compatible with 5V DC or 24V DC signal levels, for safety-related digital signal input acquisition)

It should be noted that the F3236 requires an isolated 5V DC or 24V DC SELV power supply; non-isolated power supplies may cause electromagnetic interference and compromise the module’s safety performance, failing to meet SIL 3 compliance requirements. Always use HIMA-certified components and follow the manufacturer’s wiring guidelines to ensure proper safety isolation and compliance with global safety standards. The module’s ATEX certification makes it suitable for use in explosive hazardous areas, but installation must comply with relevant hazardous area regulations. The module’s hot-swap functionality should be used in accordance with the manufacturer’s guidelines to avoid system disruptions during online replacement. The module’s advanced channel-level diagnostic features should be configured and monitored regularly to enhance system reliability, facilitate quick fault localization, and minimize maintenance downtime.

3. Industry-Oriented Deployment Scenarios and On-Site Pain-Point Solutions

3.1 Large-Scale Process Industry Safety Instrumented Systems (SIS)

Large-scale process industry applications (such as oil and gas processing, chemical manufacturing, and pharmaceutical production) require high-capacity safety input modules to monitor numerous safety loops and critical process signals. Common on-site pain points include limited cabinet space, strict safety compliance requirements, and reliable signal acquisition in harsh, high-interference environments. The F3236’s 16 input channels reduce the need for multiple input modules, saving valuable cabinet space and lowering system costs. Its SIL 3 certification and ATEX compliance ensure compliance with strict safety standards, while its robust design and wide operating temperature range ensure reliable operation in harsh process environments, including hazardous areas. The module’s high-speed signal processing (8ms switching time) ensures quick response to safety hazards, while its advanced diagnostic features enhance fault diagnosis capabilities, reducing maintenance time and minimizing downtime in critical process operations.

3.2 Heavy Machinery and Robotics Safety Control

Heavy machinery and robotics safety control applications require high-capacity, reliable safety input modules to monitor numerous critical safety devices and ensure operator safety in high-risk environments. On-site challenges include high-frequency vibration from equipment operation, limited installation space, and the need for online maintenance to avoid production shutdowns. The F3236’s compact 4TE rack module design allows for easy installation in tight control cabinets, while its hot-swap functionality enables online module replacement without system shutdown, minimizing production downtime. Its 16 input channels support the integration of numerous safety devices, including emergency stop buttons, safety door contacts, and light curtains, providing comprehensive safety coverage. The module’s dual power input options and high safety isolation (2.5 kVrms) ensure reliable signal acquisition in high-interference environments, enhancing the overall reliability of heavy machinery and robotics safety control systems.

3.3 Power Plant Safety Control Systems

Power plant safety control systems (including thermal power plants, gas-fired power plants, and renewable energy power plants) require high-capacity safety input modules to monitor critical equipment and ensure safe, uninterrupted operation. Common on-site pain points include high-temperature environments, distributed system setups, and the need for seamless integration with existing DCS systems. The F3236’s wide operating temperature range (-25°C to +85°C) allows for stable operation in high-temperature power plant environments, while its 16 input channels support the monitoring of numerous critical safety signals from boilers, turbines, and generators. Its support for standard industrial communication protocols enables seamless integration with DCS systems, facilitating centralized monitoring and data exchange. The module’s advanced diagnostic features and hot-swap functionality enable proactive maintenance and online replacement, reducing the risk of unexpected downtime and ensuring the reliability of power plant safety systems.
