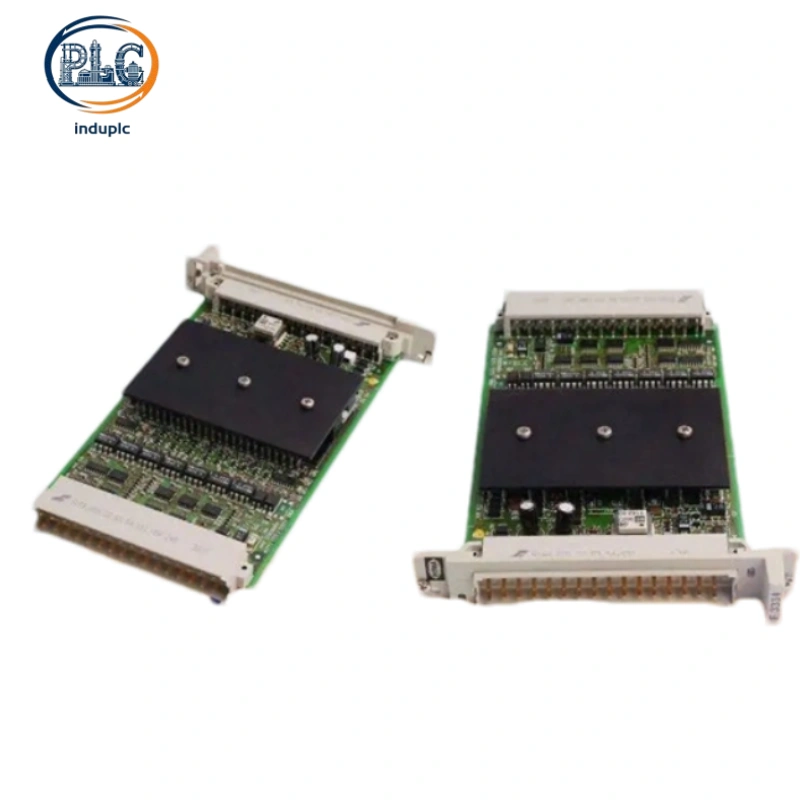

HIMA F3224: High-Reliability Safety Digital Input Module for Industrial Safety Systems

1. Hardware Architecture And Redundancy Execution Mechanism

The HIMA F3224 is a high-reliability safety digital input module designed for industrial safety and critical control applications, serving as a specialized input component for acquiring safety-related digital signals in safety instrumented systems (SIS) and critical industrial control setups. Unlike compact general-purpose input modules, the F3224 is optimized for safety-critical signal acquisition with 16 digital input channels, featuring enhanced fault detection and safety isolation capabilities to meet strict safety requirements. It is certified for SIL 3 (IEC 61508) applications and meets EN 954-1 Category 4 and ISO 13849-1 PL e standards, ensuring compliance with global safety regulations. The module features a robust, compact design with a metal housing and IP20 protection rating, engineered for long-term stable operation in harsh industrial environments, including hazardous and high-interference settings.

The hardware architecture of the F3224 is built around a high-reliability safety signal processing core, providing efficient and secure acquisition of safety-related digital signals for industrial safety applications. It features 16 digital input channels, supporting 24V DC signal levels, with current sinking logic compliant with IEC 61131-2 Type 3 specifications, and each channel is equipped with advanced fault detection mechanisms to monitor signal integrity, detect cable breaks, short circuits, and component failures in real time. The module supports 24V DC power input, with a current consumption of 150mA, minimizing energy load while ensuring stable operation. It features a compact form factor (135mm x 35mm x 105mm) with a weight of 0.3kg, supporting DIN-rail installation for easy integration into standard control cabinets. The F3224 has an operating temperature range of -25°C to +70°C and a storage temperature range of -40°C to +85°C, with an operating humidity range of 5%-95% non-condensing, ensuring adaptability to diverse industrial conditions. It is designed for use with standard industrial cables and terminal blocks for reliable field wiring, with a safe isolation of 2.5 kVrms to protect against electrical interference and ensure safety isolation between field devices and the control system.

2. Supported Operating Platforms And Full Hardware Compatibility Inventory

The F3224 is compatible with HIMA’s HIMax and HIMatrix safety platforms, supporting seamless integration into medium to large-scale safety control systems and critical industrial control setups. It cannot be used with older HIMA safety platforms that do not support its safety-focused interface and communication protocols. The module can be configured and programmed using HIMA’s SILworX engineering software, which provides comprehensive tools for channel configuration, fault diagnosis, and system integration, with dedicated safety configuration functions to ensure compliance with SIL 3 standards. It supports multiple industrial communication protocols, including RS485 and Ethernet, enabling seamless data exchange with DCS systems, third-party safety PLCs, and monitoring devices. The F3224 is designed to work with isolated 24V DC SELV power supplies, ensuring compliance with SIL 3 safety standards and minimizing electromagnetic interference. It also supports Single-Event Logging (SOE) and comprehensive channel-level diagnostics, enabling critical event tracking and quick fault localization for enhanced system reliability and maintenance efficiency.

Compatible peripheral accessories and field‑side equipment:

1. HIMA HIMax and HIMatrix safety platforms (for system integration and logic coordination in medium to large-scale safety and critical control setups)

2. Isolated 24V DC SELV power supplies (compatible with the module’s power requirements, ensuring safe and stable power input and compliance with SIL 3 standards)

3. HIMA safety CPU modules (for processing the input signals and executing safety logic, compatible with the F3224’s communication protocols and safety requirements)

4. DIN-rail mounting kits (for secure installation in standard control cabinets, compatible with the module’s compact form factor)

5. Standard industrial cables and terminal blocks (for reliable field wiring of input channels, compatible with the module’s signal requirements and safety isolation specifications)

6. Field devices including emergency stop buttons, safety door contacts, proximity sensors, and safety switches (compatible with 24V DC signal levels, for safety-related digital signal input acquisition)

It should be noted that the F3224 requires an isolated 24V DC SELV power supply; non-isolated power supplies may cause electromagnetic interference and compromise the module’s safety performance, failing to meet SIL 3 compliance requirements. Always use HIMA-certified components and follow the manufacturer’s wiring guidelines to ensure proper safety isolation and compliance with global safety standards. The module’s IP20 protection rating ensures dust and splash resistance, but it should be installed in a controlled environment to avoid exposure to harsh chemicals, excessive moisture, or extreme mechanical stress. The module’s SOE and channel-level diagnostic features should be configured and monitored regularly to enhance system reliability, facilitate quick fault localization, and minimize maintenance downtime.

3. Industry-Oriented Deployment Scenarios and On-Site Pain-Point Solutions

3.1 Large-Scale Process Industry Safety Instrumented Systems (SIS)

Medium to large-scale process industry applications (such as oil and gas processing, chemical manufacturing, and pharmaceutical production) require high-reliability safety input modules to monitor numerous safety loops and critical process signals. Common on-site pain points include strict safety compliance requirements, limited cabinet space, and reliable signal acquisition in harsh, high-interference environments. The F3224’s SIL 3 certification and advanced fault detection capabilities ensure compliance with strict safety standards, while its 16 input channels reduce the need for additional modules, saving valuable cabinet space and lowering system costs. Its robust metal housing and high safety isolation (2.5 kVrms) ensure reliable operation in harsh process environments, including those with corrosive gases and electromagnetic interference. The module’s SOE and diagnostic features enhance fault diagnosis capabilities, reducing maintenance time and minimizing downtime in critical process operations.

3.2 Heavy Machinery and Robotics Safety Control

Heavy machinery and robotics safety control applications require high-reliability safety input modules to monitor critical safety devices and ensure operator safety in high-risk environments. On-site challenges include high-frequency vibration from equipment operation, limited installation space, and strict safety compliance requirements. The F3224’s robust metal housing and compact design allow for easy installation in tight control cabinets, while its resistance to vibration and shock ensures stable operation in heavy machinery environments. Its 16 input channels support the integration of numerous safety devices, including emergency stop buttons, safety door contacts, and light curtains, providing comprehensive safety coverage. The module’s advanced fault detection and safety isolation capabilities ensure reliable signal acquisition, reducing the risk of safety incidents and enhancing the overall reliability of heavy machinery and robotics safety control systems.

3.3 Power Plant Safety Control Systems

Power plant safety control systems (including thermal power plants, gas-fired power plants, and renewable energy power plants) require high-reliability safety input modules to monitor critical equipment and ensure safe, uninterrupted operation. Common on-site pain points include high-temperature environments, distributed system setups, and the need for seamless integration with existing DCS systems. The F3224’s wide operating temperature range (-25°C to +70°C) allows for stable operation in high-temperature power plant environments, while its compact design enables easy installation in distributed control cabinets. The module’s high-reliability signal acquisition and safety features ensure reliable monitoring of critical safety signals from boilers, turbines, and generators, complying with SIL 3 standards. Its support for standard industrial communication protocols enables seamless integration with DCS systems, facilitating centralized monitoring and data exchange, while its diagnostic features enable proactive maintenance, reducing the risk of unexpected downtime.
