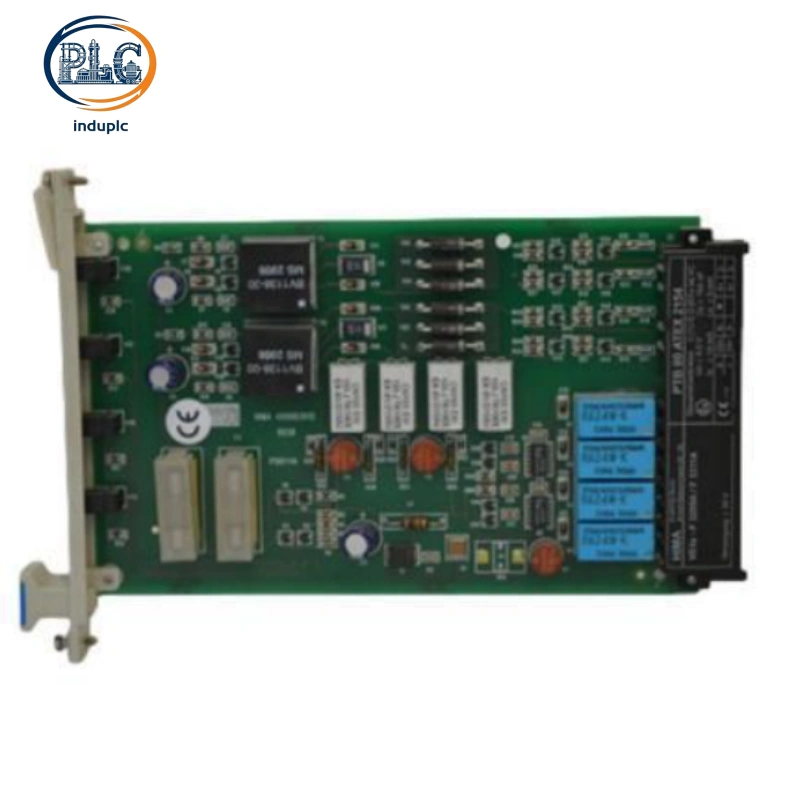

HIMA F3211A: High-Density Safety Input Module for Industrial Safety Systems

1. Hardware Architecture And Redundancy Execution Mechanism

The HIMA F3211A is a high-density safety input module designed for industrial safety applications, serving as a specialized input component for implementing reliable safety instrumented systems (SIS) across diverse industries. Unlike compact control boards focused on integrated processing, the F3211A is optimized for high-capacity safety signal acquisition, with 16 safe digital input channels to meet the needs of medium to large-scale safety loop monitoring. It is TÜV-certified for SIL 3 (IEC 61508) applications and meets EN 954-1 Category 4 and ISO 13849-1 PL e standards, ensuring compliance with global safety regulations. The module features a robust, compact design with a stainless steel enclosure and protective coatings for electronic components, engineered for long-term stable operation in harsh industrial environments, including explosive hazardous areas.

The hardware architecture of the F3211A is built around a high-density signal processing core, providing efficient and reliable acquisition of safety-related digital signals. It features 16 safe digital input channels, supporting 24V DC signal levels, with each channel equipped with independent fault detection mechanisms to monitor signal integrity, detect cable breaks, short circuits, and component failures in real time. The module adopts intrinsic safety design, with ATEX/IECEx certification for explosion-proof applications, making it suitable for use in hazardous industrial environments. It supports 24V DC power input, with built-in surge protection and EMC filtering to resist electromagnetic interference and voltage fluctuations in industrial settings. The F3211A has fast response times, ensuring quick transmission of safety signals to the control unit, and features a compact form factor (140mm x 100mm x 120mm) with a weight of 0.9kg, suitable for installation in standard control cabinets. It has an operating temperature range of -20°C to +60°C and a storage temperature range of -40°C to +85°C, with an operating humidity range of 5%-95% non-condensing, ensuring adaptability to diverse industrial conditions. It is designed for use with LiYY 16 x 0.25 mm² cables and flat pin plugs sized 2.8 x 0.8 mm² for reliable field wiring.

2. Supported Operating Platforms And Full Hardware Compatibility Inventory

The F3211A is compatible with HIMA’s HIMatrix and HIMax safety platforms, supporting seamless integration into medium to large-scale safety control systems. It cannot be used with older HIMA safety platforms that do not support its high-density input interface and communication protocols. The module can be configured and programmed using HIMA’s SILworX engineering software, which provides comprehensive tools for channel configuration, fault diagnosis, and system integration. It supports multiple industrial communication protocols, including Ethernet and Modbus TCP, enabling seamless data exchange with DCS systems, third-party PLCs, and monitoring devices. The F3211A is designed to work with isolated 24V DC SELV power supplies, ensuring compliance with SIL 3 safety standards and minimizing electromagnetic interference. It also features embedded encryption and CRC error checking, complying with FDA 21 CFR standards to protect against cyber threats in industrial control networks.

Compatible peripheral accessories and field‑side equipment:

1. HIMA HIMatrix and HIMax safety platforms (for system integration and logic coordination in medium to large-scale safety setups)

2. Isolated 24V DC SELV power supplies (compatible with the module’s power requirements, ensuring safe and stable power input)

3. HIMA safety CPU modules (for processing the input signals and executing safety logic, compatible with the F3211A’s communication protocols)

4. Mounting accessories (for secure installation in control cabinets, compatible with the module’s compact form factor)

5. LiYY 16 x 0.25 mm² cables and flat pin plugs (2.8 x 0.8 mm²) (for reliable field wiring of input channels)

6. Field devices including emergency stop buttons, safety door contacts, proximity sensors, and safety switches (compatible with 24V DC signal levels, for safety signal input acquisition)

It should be noted that the F3211A requires an isolated 24V DC SELV power supply; non-isolated power supplies may cause electromagnetic interference and compromise the module’s safety performance. Always use HIMA-certified components and follow the manufacturer’s wiring guidelines to ensure compliance with SIL 3 safety standards. The module’s intrinsic safety design and ATEX/IECEx certification make it suitable for use in explosive hazardous areas, but installation must comply with relevant hazardous area regulations. The module’s embedded encryption and CRC error checking features enhance data security, protecting against cyber threats in industrial control networks.

3. Industry-Oriented Deployment Scenarios and On-Site Pain-Point Solutions

3.1 Large-Scale Process Industry Safety Instrumented Systems (SIS)

Medium to large-scale process industry applications (such as oil and gas processing, chemical manufacturing, and pharmaceutical production) require high-density safety input modules to monitor numerous safety loops across large facilities. Common on-site pain points include limited cabinet space, the need for reliable signal acquisition in hazardous environments, and compliance with strict SIL 3 safety standards. The F3211A’s 16 high-density input channels reduce the need for multiple input modules, saving valuable cabinet space and lowering system costs. Its intrinsic safety design and ATEX/IECEx certification ensure reliable operation in explosive hazardous areas, while its built-in fault detection mechanisms enable quick fault localization, reducing maintenance time and minimizing downtime. The module’s support for standard communication protocols enables seamless integration with DCS systems, facilitating centralized monitoring and control of safety loops.

3.2 Heavy Machinery and Robotics Safety Control

Large-scale manufacturing and assembly lines (such as automotive production, heavy machinery assembly, and automated packaging lines) require high-density safety input modules to monitor numerous safety devices and ensure operator safety. On-site challenges include high-frequency vibration from production equipment, limited cabinet space, and the need for reliable signal transmission in high-interference environments. The F3211A’s robust stainless steel enclosure protects against vibration and electromagnetic interference, ensuring stable signal acquisition in high-volume production environments. Its 16 input channels support the integration of numerous safety devices, including emergency stop buttons, safety door contacts, and light curtains, providing comprehensive safety coverage. The module’s comprehensive fault detection capabilities enable quick fault localization, reducing maintenance time and minimizing production downtime. Its compatibility with HIMA’s safety platforms enables seamless integration into existing safety control systems.

3.3 Power Plant Safety Control Systems

Power plants (including thermal power plants, gas-fired power plants, and renewable energy power plants) require high-density safety input modules to monitor critical equipment and ensure safe operation. Common on-site pain points include high-temperature environments, distributed system setups, and the need for reliable signal acquisition in harsh conditions. The F3211A’s wide operating temperature range allows for stable operation in high-temperature power plant environments, while its compact design enables easy installation in distributed control cabinets. The module’s high-density input channels support the monitoring of numerous safety-related signals from critical equipment, including boilers, turbines, and generators. Its built-in surge protection and EMC filtering ensure reliable signal transmission in high-interference power plant environments, while its compliance with SIL 3 standards ensures the reliability of safety loop operation.
