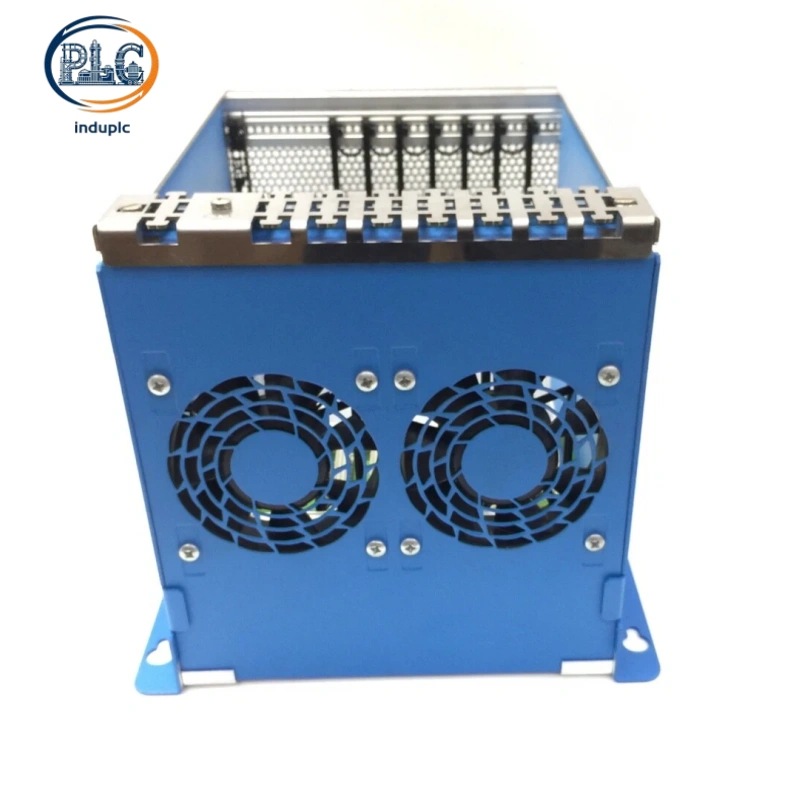

HIMA HIMatrix F60-GEH01: High-Density Safety I/O Expansion Module for HIMatrix F60 Systems

1. Hardware Architecture And Redundancy Execution Mechanism

The HIMA HIMatrix F60-GEH01 is a high-density safety I/O expansion module designed to extend the functionality of HIMatrix F60 safety control systems, serving as a critical component for scaling safety I/O capacity in large-scale industrial applications. Unlike standalone CPU modules, the F60-GEH01 is optimized for seamless integration with F60 series CPUs, providing additional digital and analog I/O channels to meet the demands of complex safety instrumented systems (SIS). It is TÜV-certified for SIL 3 (IEC 61508) and meets Cat. 4/PL e (EN ISO 13849-1) standards, ensuring reliable fail-safe operation in diverse harsh industrial environments. The module features a compact, DIN-rail mountable design with a robust metal housing and EMC shielding, engineered for long-term stable operation with comprehensive channel-level diagnostic capabilities.

The hardware architecture of the F60-GEH01 is built around a high-density I/O design, featuring 32 digital input channels, 16 digital output channels, and 8 analog input channels, all with dual-channel safety processing for signal validation. Each input and output channel is equipped with independent diagnostic circuits that continuously monitor signal integrity, detecting faults such as cable breaks, short circuits, and component failures in real time. The module connects to the F60 CPU via a dedicated safety bus interface, supporting high-speed data transmission with integrated error checking to ensure reliable communication. It is equipped with LED indicators for each channel, enabling quick fault localization and status monitoring. The F60-GEH01 supports 24V DC power input, with built-in surge protection and EMC filtering to resist electromagnetic interference and voltage fluctuations in industrial environments. Its compact dimensions (180mm x 120mm x 85mm) allow for easy installation in tight control cabinets, while its low power consumption minimizes energy load during long-term operation.

2. Supported Operating Platforms And Full Hardware Compatibility Inventory

The F60-GEH01 is exclusively compatible with the HIMatrix F60 series safety platform, including F60-CPU03 and other F60 CPU modules. It cannot be used with other HIMatrix series CPUs (such as F30 or F40) or older HIMA safety platforms (such as H41q) due to differences in safety bus communication protocols and hardware interface specifications. The module is configured and programmed using the SILworX engineering software, which provides comprehensive tools for channel configuration, diagnostic setup, and system integration. It supports standard industrial communication protocols including SafeEthernet, Modbus/TCP, and PROFINET, enabling seamless integration with DCS systems, third-party PLCs, and other industrial devices. The F60-GEH01 is designed to work with isolated 24V DC SELV power supplies, ensuring compliance with SIL 3 safety standards and minimizing electromagnetic interference.

Compatible peripheral accessories and field‑side equipment:

1. HIMA F7126 24V DC power supply modules (for reliable power input, compatible with the module’s power requirements)

2. HIMatrix F60 series CPU modules (F60-CPU03 or other F60 CPUs, for system control and logic execution)

3. HIMA safety bus cables (for seamless communication between F60-GEH01 and F60 CPU modules)

4. Spring-loaded detachable terminal blocks (for secure and efficient wiring of field devices to I/O channels)

5. Industrial Ethernet cables (for network integration and communication with DCS/third-party systems)

6. Field devices including emergency stop buttons, safety door contacts, proximity sensors, and analog transmitters (compatible with 24V DC signal levels and analog input requirements)

It should be noted that the F60-GEH01 requires an isolated 24V DC SELV power supply; non-isolated power supplies may cause electromagnetic interference and compromise the module’s safety performance. Always use HIMA-certified components and follow the manufacturer’s wiring guidelines to ensure compliance with SIL 3 safety standards. The module’s operating temperature range is -20°C to +60°C, making it suitable for use in extreme industrial conditions.

3. Industry-Oriented Deployment Scenarios and On-Site Pain-Point Solutions

3.1 Large-Scale Process Industry Safety Instrumented Systems (SIS)

Process industries such as oil and gas, chemical, and pharmaceutical require scalable safety instrumented systems (SIS) with high-density I/O capacity to monitor and control numerous safety loops across large facilities. Common on-site pain points include limited cabinet space, the need for flexible I/O expansion, and strict compliance with SIL 3 safety standards. The F60-GEH01’s high-density I/O design (32 DI, 16 DO, 8 AI) allows for significant I/O expansion without requiring additional cabinet space, addressing the challenge of limited installation room. Its seamless integration with F60 CPUs enables flexible system scaling, while channel-level diagnostics allow for quick fault localization, reducing maintenance time and minimizing downtime in critical process environments. The module’s EMC shielding and surge protection ensure reliable operation in harsh process environments, including those with corrosive gases and high levels of electromagnetic interference.

3.2 Heavy Machinery and Robotics Safety Control

Large-scale manufacturing and assembly lines require comprehensive safety control to protect operators from hazardous moving parts and ensure uninterrupted production. On-site challenges include the need for numerous safety sensors and actuators, high-frequency vibration from production equipment, and the need for quick response times in safety-critical situations. The F60-GEH01’s high-density I/O capacity allows for the integration of dozens of safety devices, including emergency stop buttons, safety door contacts, and light curtains, providing comprehensive safety coverage for complex production lines. Its robust metal housing and EMC shielding protect against vibration and interference, while dual-channel safety processing ensures fast and reliable signal validation. The module’s compatibility with SILworX software enables easy configuration and monitoring of safety functions, reducing maintenance complexity and improving operational efficiency.

3.3 Power Plant Safety Control Systems

Power plants require highly reliable safety control systems with expandable I/O capacity to monitor critical equipment such as boilers, turbines, and generators. Common on-site pain points include distributed I/O points across large power plant facilities, high-temperature environments, and the need for seamless integration with existing DCS systems. The F60-GEH01’s compact design allows for easy installation in distributed control cabinets across the power plant, while its high-density I/O capacity provides sufficient channels for monitoring and controlling numerous safety loops. The module’s wide operating temperature range (-20°C to +60°C) allows for stable operation in high-temperature power plant environments, while its support for standard industrial communication protocols enables seamless integration with DCS systems, facilitating centralized monitoring and data exchange. Its comprehensive channel-level diagnostics enable proactive maintenance, reducing the risk of unexpected downtime and ensuring the reliability of power plant safety systems.
