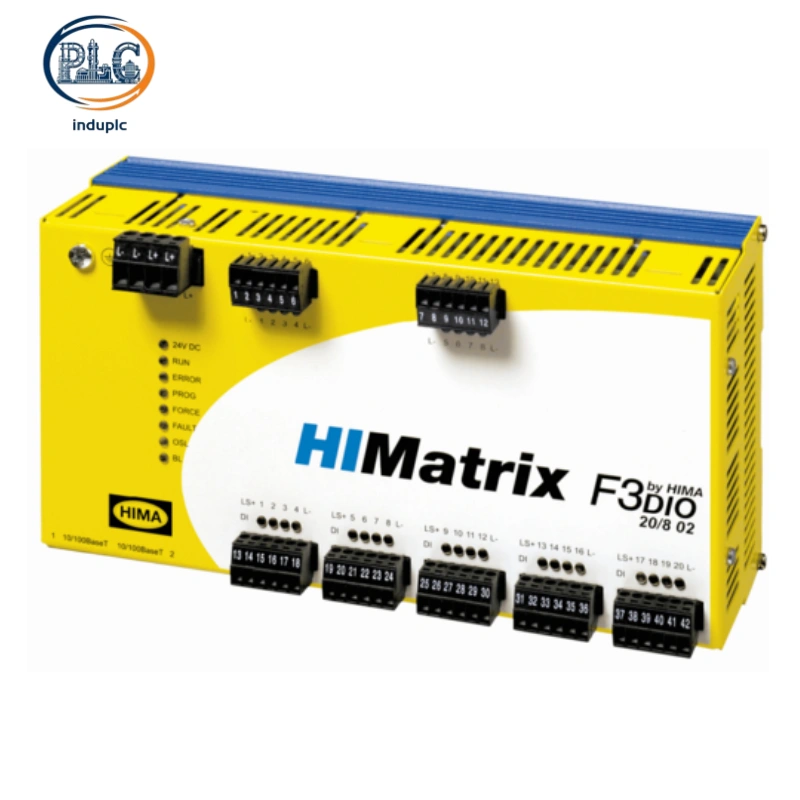

HIMA F3 DIO 20/8 02: 20-Input 8-Output Safety Remote I/O Module for HIMatrix Systems

1. Hardware Structure And Built‑in Redundancy Scheme

The HIMA F3 DIO 20/8 02 is a safety-related remote I/O module belonging to the HIMatrix F3 series, designed for seamless integration into HIMA’s safety control systems. It features a compact, DIN-rail mountable design with 20 digital input channels and 8 digital output channels, optimized for distributed safety signal collection and control in industrial environments. The module is TÜV-certified for SIL 3 (IEC 61508) and SIL 4 (EN 50126/50128/50129) applications, also meeting Cat. 4 and PL e (EN ISO 13849-1) standards, ensuring reliable fail-safe operation in diverse industrial scenarios. As a remote I/O module, it eliminates the need for extensive wiring between field devices and the main safety controller, simplifying system layout and reducing installation costs.

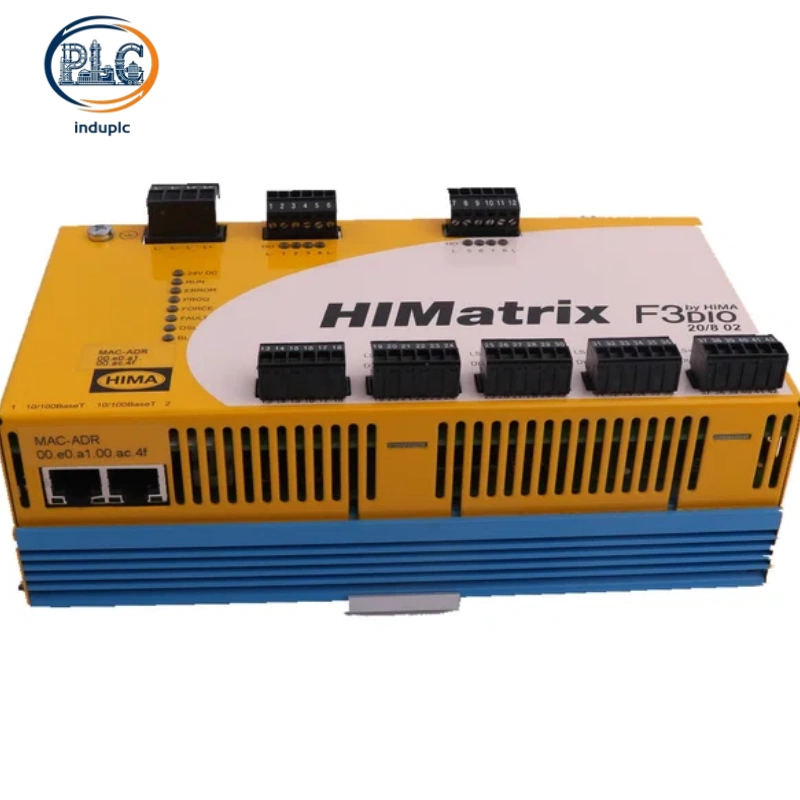

The hardware architecture of the F3 DIO 20/8 02 is built around a dual-channel safety processing design, with independent signal acquisition and logic processing circuits for each input and output channel. This dual-channel configuration ensures that signal errors or component failures in one channel do not compromise the safety function, as the module continuously compares data from both channels to validate signal integrity. The module features two RJ-45 Ethernet ports with an integrated switch, supporting 10BASE-T/100BASE-TX communication for seamless connection to the safety controller and other network devices. It also includes built-in EMC filtering and surge protection, with an IP20 protection rating, ensuring resistance to electromagnetic interference and voltage fluctuations in harsh industrial environments. The compact design (170mm x 120mm x 85mm) allows for easy installation in tight control cabinets, while the low power consumption (25mA per channel) minimizes energy load during long-term operation.

2. Adaptable System Platform And Hardware Compatibility Checklist

The F3 DIO 20/8 02 remote I/O module is primarily compatible with HIMA HIMatrix and HIMax safety controller platforms, including F35, F40, F60, and F-series CPU modules. It cannot be used with older HIMA safety platforms such as H41q or non-safety PLC systems due to differences in safety bus communication protocols and hardware interface specifications. The module supports standard industrial communication protocols including Modbus/TCP and EtherCAT, enabling seamless integration with third-party safety systems and field devices that comply with these protocols. It is designed to work with standard 24V DC industrial power supplies and field devices, ensuring flexible integration into existing control setups.

Compatible peripheral hardware and requirements:

1. HIMA F7126 power supply modules (for 24V DC power input, compatible with the module’s 25mA per channel power requirement)

2. Standard 24V DC industrial power supplies (rated for 1A or higher, with overvoltage protection and EMC filtering)

3. HIMA safety I/O modules (compatible with HIMatrix/HIMax platforms, for expanded system functionality)

4. Field devices such as safety door switches, emergency stop buttons, proximity sensors, and safety relays (compatible with 24V DC signal levels)

5. Standard terminal blocks, Ethernet cables, and wiring accessories (for secure installation and reliable communication)

It should be noted that the F3 DIO 20/8 02 requires a 24V DC power input, and incompatible power supplies or non-certified accessories may compromise the module’s safety performance. Always use HIMA-certified components and follow the manufacturer’s wiring guidelines to ensure compliance with SIL 3/SIL 4 safety standards. The module’s operating temperature range is -25°C to +60°C, making it suitable for use in harsh industrial environments with extreme temperature fluctuations.

3. Industry‑oriented Deployment Scenarios And Practical Working‑Condition Pain‑point Solutions

3.1 Railway Safety Control Systems

Railway systems require high-reliability safety control to ensure the safe operation of trains and signaling systems, with strict compliance to SIL 4 safety standards. Common on-site pain points include distributed signal collection across large railway networks, exposure to harsh outdoor environments (extreme temperatures, dust, and vibration), and the need for seamless communication between field devices and control centers. The F3 DIO 20/8 02’s SIL 4 certification meets the strict safety requirements of railway applications, while its dual-channel design ensures reliable signal transmission even in harsh conditions. The module’s compact size and DIN-rail mountable design allow for easy installation in distributed control cabinets along railway lines, and its integrated Ethernet switch simplifies network layout, reducing wiring costs and maintenance efforts.

3.2 Industrial Machinery Safety Control

Industrial machinery such as CNC machines, robotic systems, and packaging equipment requires decentralized safety control to protect operators from hazardous areas and moving parts. On-site challenges include limited space in machine control panels, frequent maintenance requirements, and the need for quick fault detection. The F3 DIO 20/8 02’s compact design saves valuable cabinet space, while its dual-channel safety processing ensures that the safety function remains intact even if one channel fails. The module’s integrated self-diagnostic function continuously monitors the status of each channel, detecting faults such as signal loss or component failure in real time and sending diagnostic signals to the control system, enabling quick fault resolution and minimizing downtime.

3.3 Process Industry Safety Instrumented Systems (SIS)

Process industries such as chemical, pharmaceutical, and oil and gas require reliable safety instrumented systems (SIS) to prevent accidents caused by process abnormalities. Common on-site pain points include distributed I/O points across large process plants, exposure to corrosive and dusty environments, and the need for redundant signal transmission to ensure safety loop integrity. The F3 DIO 20/8 02’s IP20 protection rating and EMC filtering make it suitable for use in harsh process environments, while its 20 input and 8 output channels provide sufficient capacity for collecting and controlling multiple safety signals. The module’s compatibility with HIMatrix/HIMax safety controllers ensures seamless integration into existing SIS, and its dual-channel design eliminates single points of failure, ensuring the reliability of safety interlock systems.
