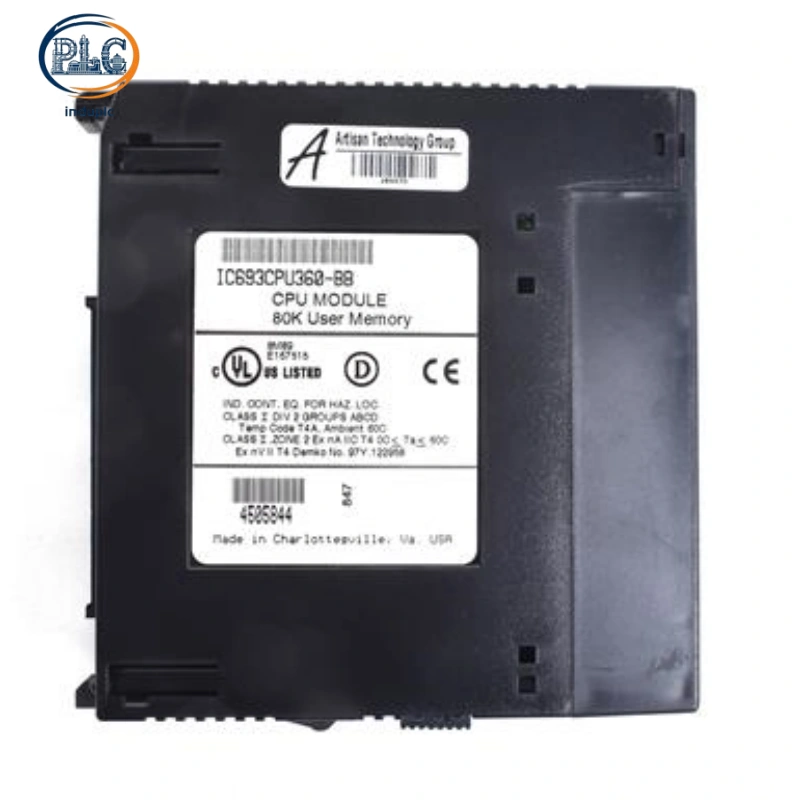

GE Fanuc IC693CPU360 Series 90-30 CPU Module for Industrial Control System Processing

Product Overview

The GE Fanuc IC693CPU360 is a high-performance CPU module designed for Series 90-30 PLC systems, serving as the core processing unit for executing complex control logic and managing system operations in industrial automation setups. This IC693CPU360 features a 25MHz 80386EX processor and up to 240K bytes of configurable user memory (with firmware 9.0+), enabling efficient execution of large-scale control programs and seamless coordination with I/O modules and communication devices. As a key part of the Series 90-30 hardware lineup, the IC693CPU360 boasts robust processing power, dual communication interfaces, and wide compatibility, making it ideal for medium-to-large industrial automation applications, including motion control, process monitoring, and manufacturing lines. Its compact single-slot design enables easy integration into existing Series 90-30 racks, with built-in diagnostic features to simplify maintenance and ensure stable system operation.

Compact Technical Specifications

• Part Number: IC693CPU360 | Product Family: Series 90-30 PLC CPU Modules

• Processor Specifications: 25MHz 80386EX processor, with a scan rate of 0.22ms per 1K Boolean logic for fast control execution

• Memory Configuration: Up to 240K bytes of configurable user program memory (firmware 9.0+), with battery-backed clock to ensure data retention during power outages

• I/O Capacity: Supports up to 4K I/O points, with 2048 discrete input points (%I) and 2048 discrete output points (%Q), plus 1280 discrete global memory points for extensive signal handling

• Functional Features: Supports over 2000 timers and counters, advanced shift register operations, comprehensive interrupt handling, floating-point math, and dual communication ports for flexible connectivity

• System Compatibility: Compatible with all Series 90-30 I/O modules and communication modules, supporting up to 8 baseplates per system (1 CPU + 7 expansion/remote)

• Power Consumption: Draws 670mA from the +5V PLC backplane, with low-power design to minimize energy load and heat generation

Core Selling Points

The GE Fanuc IC693CPU360 stands out for its enhanced memory capacity, with up to 240K configurable user memory enabling execution of large-scale control programs without additional memory modules. Its dual communication interfaces support RS-232 and RS-485 connectivity, facilitating seamless communication with HMIs, SCADA systems, and other industrial devices. The IC693CPU360’s support for advanced functions like floating-point math and interrupt handling enables precise control of diverse industrial processes. Its compact single-slot design optimizes cabinet space, while wide compatibility with Series 90-30 modules allows for flexible system configuration.

Practical Application Highlights

The IC693CPU360 delivers consistent performance and flexible adaptability for industrial automation systems, making it a preferred choice for engineers. Its robust processing power, extensive memory capacity, and dual communication ports eliminate the need for additional control and communication components, reducing overall system costs. The IC693CPU360’s built-in diagnostic functions enable quick fault localization and resolution, boosting maintenance efficiency and minimizing downtime. It is widely used in motion control, process automation, and manufacturing lines, serving as a dependable CPU solution for Series 90-30 PLC systems.
