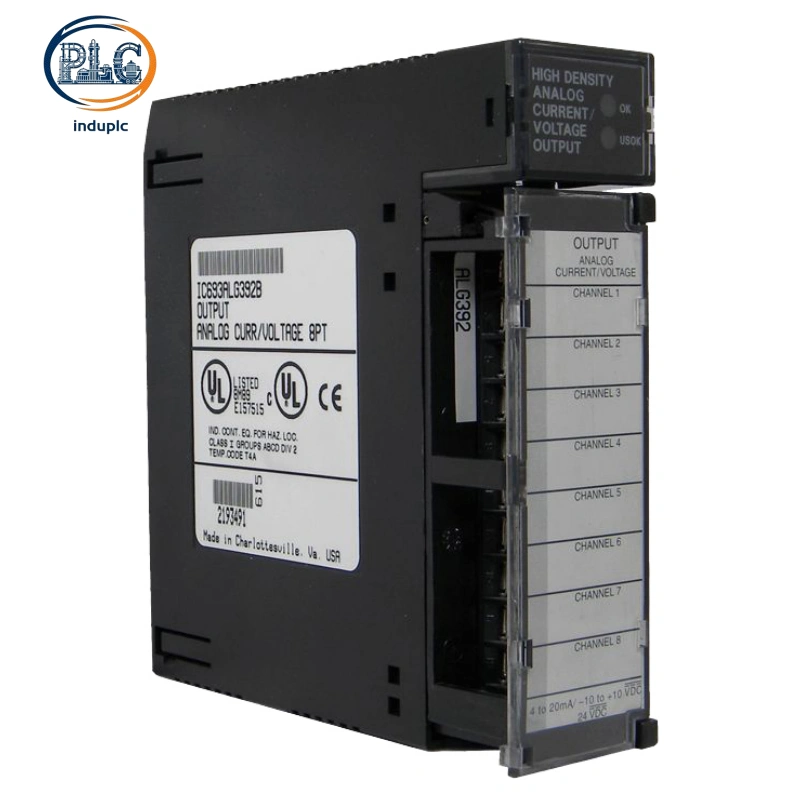

GE Fanuc IC693ALG392 Series 90-30 Analog I/O Module for Industrial Automation

Product Overview

The GE Fanuc IC693ALG392 is a multifunctional analog I/O module designed for Series 90-30 PLC systems, serving as an integrated solution for both analog signal acquisition and control in industrial automation setups. This IC693ALG392 combines high-precision analog input and stable analog output capabilities, enabling seamless interaction between the PLC core and field analog devices. As a key part of the Series 90-30 I/O lineup, the IC693ALG392 boasts versatile performance and wide signal compatibility, making it ideal for process monitoring, manufacturing, and other industrial applications. Its compact modular design enables easy integration into existing Series 90-30 racks, with built-in diagnostic features to simplify maintenance and ensure reliable operation.

Compact Technical Specifications

• Part Number: IC693ALG392 | Product Family: Series 90-30 PLC Analog I/O Modules

• Channel Configuration: 4 analog input channels + 2 analog output channels, integrating signal acquisition and control in one module

• Signal Compatibility: Supports 4-20mA current and ±10VDC voltage for inputs; 4-20mA current and 0-10VDC voltage for outputs

• Resolution & Accuracy: 12-bit resolution for both input and output, with typical accuracy of ±0.2% FS for reliable performance

• Isolation Performance: Optical isolation between field circuits and internal logic, effectively suppressing electromagnetic interference and protecting the PLC system

• Power Consumption: Low-power design, minimizing energy load on the PLC backplane and reducing heat generation during long-term operation

• Working Temperature: 0℃ to +60℃, ensuring stable operation in harsh industrial environments

Core Selling Points

The GE Fanuc IC693ALG392 stands out for its integrated analog I/O design, combining 4 input channels and 2 output channels in a single compact module to maximize cabinet space efficiency. This multifunctional design reduces the number of modules needed for simultaneous signal acquisition and control, lowering overall system costs. The IC693ALG392 supports both current and voltage modes for both inputs and outputs, adapting to diverse field device requirements and simplifying on-site wiring. Its optical isolation design effectively blocks electromagnetic interference, ensuring stable and accurate signal transmission and control even in noisy industrial environments.

Practical Application Highlights

The IC693ALG392 delivers consistent performance and flexible adaptability for industrial automation systems, making it a preferred choice for engineers. Its wide signal compatibility adapts to diverse industrial sensors, transmitters, actuators, and valves, eliminating the need for additional signal converters. The IC693ALG392’s built-in diagnostic functions enable quick fault localization and resolution, boosting maintenance efficiency and minimizing downtime. It is widely used in process control, manufacturing lines, and industrial automation systems, serving as a dependable integrated analog I/O solution for Series 90-30 PLC systems.
