1. Product Overview

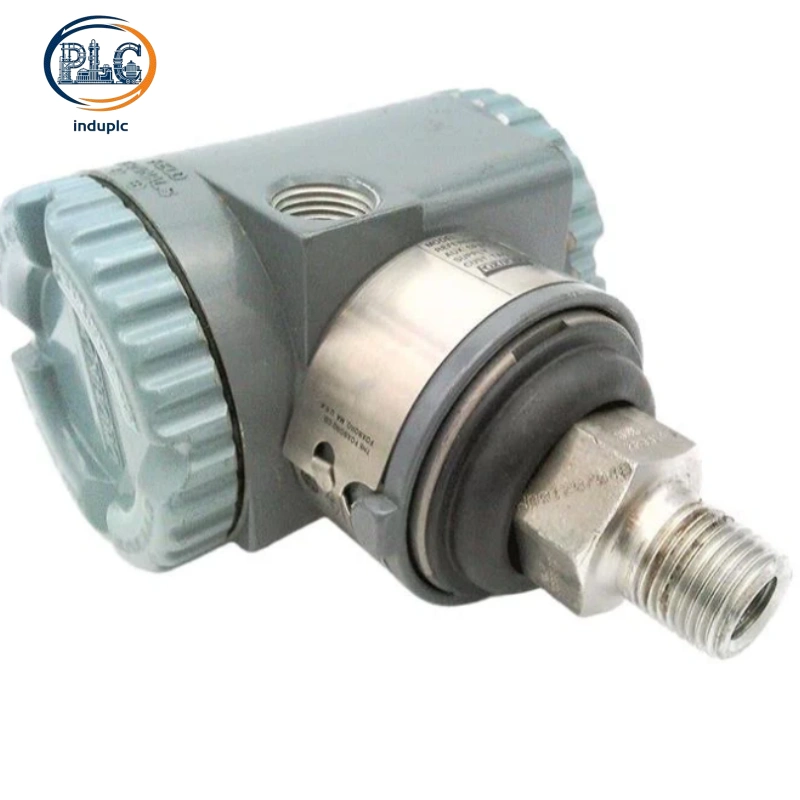

The Foxboro IAP10-A22A1F is a high-precision intelligent absolute pressure transmitter belonging to the I/A Series process instrument lineup. Different from DCS I/O and communication modules, this field measuring instrument is dedicated to real-time absolute pressure detection of gas and liquid media in process pipelines and vessels. It adopts advanced micro-sensing technology and digital temperature compensation algorithm, delivering stable and accurate absolute pressure measurement under complex working conditions, serving as the core on-site sensing device for industrial pressure monitoring and closed-loop regulation systems.

Adopting industry-standard two-wire system design, the transmitter outputs standard 4–20mA analog signals while supporting superimposed HART digital communication. It enables remote parameter configuration, range calibration and equipment health diagnosis, compatible with Foxboro DCS and mainstream industrial control systems. Equipped with high-strength die-cast aluminum housing and IP66/NEMA 4X waterproof and dustproof grade, it complies with NAMUR industrial electromagnetic compatibility standards and G3 harsh environment adaptability, supporting long-term stable measurement operation in petrochemical, power, pharmaceutical and energy process industries.

2. Core Technical Parameters

• Instrument Type: On-site intelligent absolute pressure transmitter

• Measuring Principle: High-precision micro pressure sensing + digital temperature compensation

• Output Signal: 4–20mA DC analog + HART 7 digital superimposed signal

• Communication Specification: 1200 baud FSK half-duplex HART bidirectional communication

• Measurement Accuracy: ±0.1% full scale high precision steady-state measurement

• Power Supply: 10.5–42VDC wide-range industrial DC power supply

• Loop Load Requirement: Minimum 250Ω loop resistance for stable HART communication

• Response Performance: Fast pressure response, low measurement hysteresis

• Structural Grade: IP66 / NEMA 4X waterproof, dustproof and anti-corrosion housing

• Environmental Adaptability: Compliant with NAMUR NE21 & NE43 industrial standards

• Working Temperature: -40°C ~ +85°C industrial wide temperature range

• Process Material: High corrosion-resistant pressure sensing diaphragm

3. Core Product Features

As a professional absolute pressure measuring instrument, IAP10-A22A1F features exclusive high-precision sensing and intelligent diagnosis capabilities that differ from conventional differential and gauge pressure transmitters:

• Professional Absolute Pressure Measurement Specifically designed for absolute pressure monitoring scenarios, the instrument takes absolute vacuum as the reference zero point, eliminating atmospheric pressure interference. It provides accurate and stable pressure data for vacuum systems, closed container gas phase monitoring and high-precision process pressure calibration, solving measurement deviation problems of ordinary gauge pressure transmitters in variable atmospheric environments.

• Dual Analog + HART Digital Integration The two-wire system realizes simultaneous transmission of 4–20mA analog measurement signals and HART digital data. It supports real-time upload of pressure values, internal temperature and instrument status, and allows remote modification of measuring range, damping parameters and unit calibration without on-site disassembly, greatly improving instrument maintenance efficiency.

• High-stability Temperature Anti-drift Algorithm Built-in intelligent digital temperature compensation mechanism automatically corrects measurement errors caused by ambient and medium temperature changes. It maintains consistent high measurement accuracy in wide temperature fluctuation environments, avoiding data drift and ensuring long-term reliable operation of process pressure control loops.

• Industrial-grade Anti-interference & Sealed Protection The split double-chamber structural design isolates circuit components and field wiring terminals, effectively preventing dust, moisture and corrosive gas intrusion. It strictly complies with NAMUR industrial EMC standards, resisting on-site electromagnetic interference and power frequency clutter, adapting to harsh industrial field working conditions.

• Wide Compatibility & Easy System Integration Fully compatible with Foxboro I/A Series DCS and mainstream brand control systems and HART handheld configurators. It supports seamless docking with FBM214B/FBM216B HART input modules, realizing unified system monitoring and intelligent instrument management, with flexible deployment and strong system scalability.

4. Industrial Application Scenarios

Foxboro IAP10-A22A1F is widely deployed in industrial scenarios requiring high-precision absolute pressure monitoring. It is mainly used for vacuum system pressure detection and closed-loop control in petrochemical reaction processes, boiler and pipeline absolute pressure monitoring in thermal power units, sterile container pressure detection in pharmaceutical fine chemical production, precise pressure measurement of energy storage and pressure-bearing equipment, and high-standard process parameter calibration for industrial automation systems. It is a core high-precision sensing instrument for ensuring stable and safe operation of process pressure loops.
