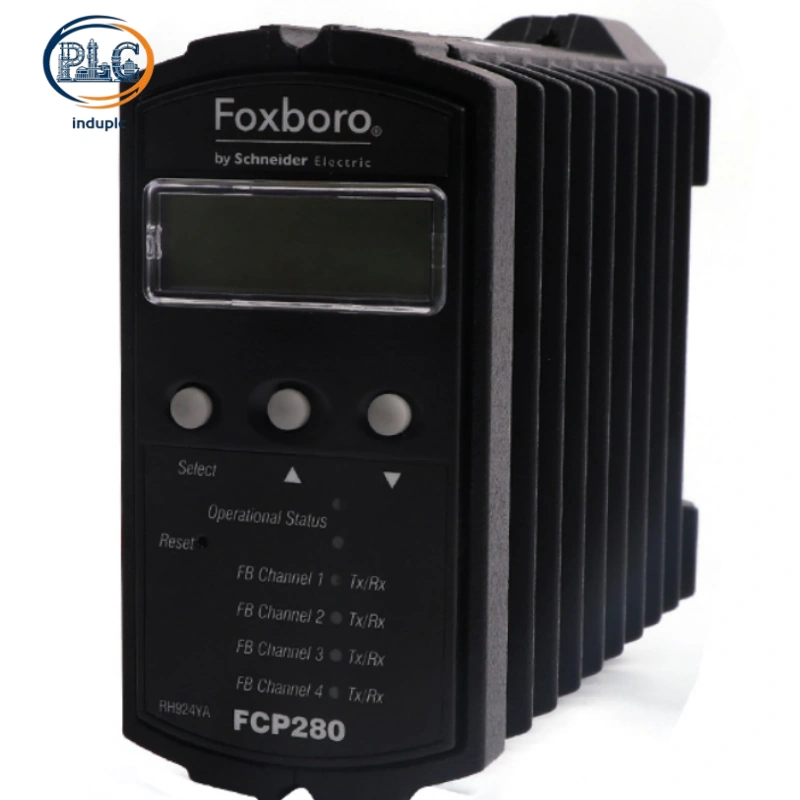

Foxboro FCP280 High-capacity Field Control Processor | Next-gen Evo DCS Main Controller

1. Product Overview

The Foxboro FCP280 is a next-generation high-capacity field control processor exclusively optimized for Foxboro Evo modern DCS platforms. Serving as an upgraded iteration of traditional field processing units, this controller targets large-scale, high-complexity process automation projects that demand massive logic operation and ultra-stable node scheduling. It acts as the core field computing backbone for upgraded Compact 200 subsystems, delivering stronger algorithm processing power, expanded I/O carrying capacity and optimized network transmission efficiency compared with conventional controller models.

Adopting advanced upgraded RISC processing architecture and expanded embedded storage configuration, the FCP280 supports ultra-large-loop concurrent operation and complex customized control strategy execution. It features dual redundant fiber Ethernet network design and full hardware hot standby fault tolerance, eliminating single-point node failure risks in high-load production scenarios. Fully compliant with ISA G3 industrial environmental standards and optimized for long-cycle continuous operation, it adapts to ultra-large petrochemical integration plants, supercritical power units and other high-standard process industrial scenarios with rigorous control stability requirements.

2. Core Technical Parameters

• Product Positioning: Next-gen high-capacity field main controller for Evo DCS large-node scheduling

• Processing Architecture: Upgraded industrial RISC high-speed real-time processing core

• Storage Allocation: Expanded operating memory and high-capacity Flash program storage for complex algorithms

• Network Configuration: Dual redundant 100Mbps fiber Ethernet communication ports

• Redundancy Mode: Full hardware-level hot standby automatic switching support

• Max I/O Carrying Capacity: Supports expanded FBM module cluster management for large-scale subsystems

• Control Support: Mass PID loop concurrent operation, complex sequence logic, customized interlock strategy

• Time Synchronization: High-precision system-wide unified clock synchronization mechanism

• Platform Adaptation: Exclusive compatibility and performance optimization for Foxboro Evo DCS systems

• Industrial Grade: ISA Class G3 anti-vibration, anti-corrosion and anti-aging standard

• Operating Temperature: 0°C ~ +60°C stable full-load operating range

• Installation Form: Standard dedicated baseplate rack modular installation

3. Core Product Features

Different from conventional field controllers with limited load capacity, FCP280 focuses on large-scale node processing, high-complexity algorithm operation and ultra-high system stability, with unique upgraded core strengths:

• Upgraded High-load Computing Performance Optimized real-time processing architecture significantly improves single-node algorithm operation efficiency, effectively supporting concurrent calculation of hundreds of control loops and complex customized control programs. It eliminates operation delay, logic congestion and data jitter caused by excessive system load, ensuring high real-time performance and accuracy of large-scale process regulation and interlock protection.

• Expanded Large Cluster Scheduling Capability The controller boosts subsystem I/O expansion capacity, capable of stably managing super-scale FBM module groups covering analog, discrete, HART and multi-protocol communication signals. It realizes unified data collection, centralized algorithm computing and synchronous instruction distribution for distributed field nodes, simplifying large-system topology and improving overall collaborative operation efficiency.

• Dual-fiber Redundant Network Fault Tolerance Equipped with dual independent fiber Ethernet ports to build redundant backbone network links. Dual links operate synchronously in real time; the system completes seamless switching instantly upon single link failure, ensuring zero interruption of control data transmission. The fiber transmission mode provides stronger electromagnetic interference resistance and longer-distance stable transmission than traditional electrical interfaces.

• Full-process Safety Redundant Control Supporting dual-controller hot standby redundant configuration, the standby node maintains full real-time synchronization of operating programs, loop parameters and field data with the master node. No parameter loss or logic reset occurs during switching, fully guaranteeing the continuous and safe operation of core production loops and meeting high-standard safety control requirements of large process industries.

• Evo Platform Exclusive Optimization Deeply adapted to Foxboro Evo system underlying architecture, with targeted optimization for system resource scheduling, data interaction mechanism and fault diagnosis logic. It delivers better operating fluency and compatibility on new-generation platforms than traditional controllers, giving full play to the intelligent and high-efficiency control advantages of Evo DCS systems.

4. Industrial Application Scenarios

Foxboro FCP280 is mainly applicable to large-scale, high-complexity and high-reliability industrial automation control scenarios. It serves core node control of super-large petrochemical integrated production bases, main loop scheduling and safety interlock management of large thermal power and new energy power generation units, high-precision stable control of large-scale fine chemical and pharmaceutical intelligent production lines, and upgrading and capacity expansion of old DCS systems for super-large process equipment. It is the preferred high-capacity core controller for building large-scale, high-stability and intelligent modern industrial distributed control systems.
