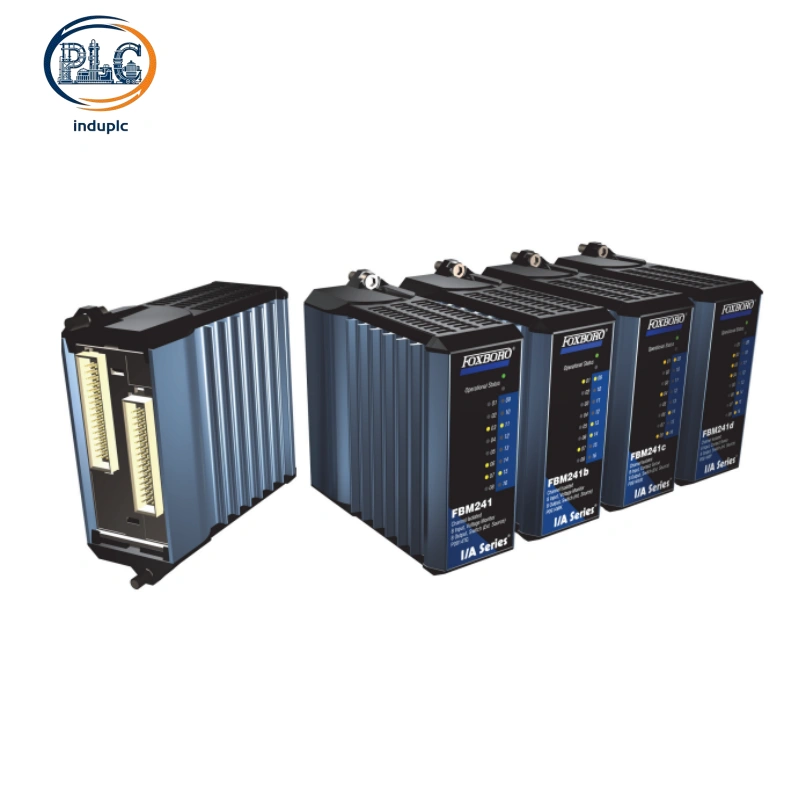

Foxboro FBM241C P0916JW 8DI/8DO Isolated Mixed Discrete I/O Module | Compact 200 Field Unit

1. Product Overview

The Foxboro FBM241C P0916JW is a compact mixed discrete input and output module tailored for the Compact 200 field I/O ecosystem. Unlike single-function digital input or output modules in the FBM series, this integrated unit combines 8-channel digital signal acquisition and 8-channel switch drive output in a single compact form factor, achieving one-card dual-purpose discrete signal processing. It is purpose-built for industrial on-site interlock logic detection, equipment status feedback and on-off actuator control, balancing system layout compactness and functional diversity.

Adopting full-channel independent galvanic isolation architecture, the module effectively isolates cross-channel interference and ground loop potential differences in complex electromagnetic environments. It supports customizable signal debounce filtering to eliminate mechanical contact jitter and false triggering, ensuring accurate and stable discrete signal identification and logic execution. Compatible with standard fieldbus redundant transmission and compliant with Class G3 harsh industrial specifications, the unit supports long-term 24/7 stable operation, perfectly adapting to medium and small-scale discrete signal control demands in process production sites.

2. Core Technical Parameters

• Channel Layout: 8 isolated discrete input channels + 8 isolated discrete output channels (8DI/8DO mixed configuration)

• Input Voltage Range: 15–60VDC on-state recognition, 0–5VDC off-state threshold

• Signal Filtering: Configurable debounce time: 0ms, 4ms, 8ms, 16ms, 32ms

• Channel Isolation: Per-channel independent electrical isolation, anti-crosstalk and surge protection

• Input Current: 1.4mA typical operating current for stable signal detection

• Communication Architecture: Redundant 2Mbps fieldbus bidirectional data transmission

• Operation Mode: Single-module independent operation, support for conventional logic configuration

• Environmental Rating: ISA Class G3 industrial vibration and corrosion resistance standard

• Working Temperature: -40°C ~ +70°C industrial wide temperature adaptive range

• Installation Method: Standard DIN rail baseplate card slot mounting

3. Core Product Features

Featuring integrated mixed I/O design and flexible signal processing capability, FBM241C P0916JW fills the gap of compact dual-function discrete control in the FBM module lineup, with unique practical advantages:

• Integrated 8DI/8DO Dual-function Integration The module integrates signal collection and switch drive output functions, replacing two separate single-function I/O cards. It greatly optimizes cabinet space utilization, reduces wiring workload and hardware procurement costs, and simplifies on-site I/O layout for small and medium-sized discrete signal control loops, delivering higher cost performance than dedicated input/output modules.

• Precision Configurable Debounce Filtering Multi-level adjustable debounce parameters target mechanical contact bounce and instantaneous signal jitter of field switches and valves. It intelligently filters unstable interference signals without affecting normal fast switching actions, effectively avoiding false interlock triggering and logic misjudgment, improving the accuracy and reliability of system sequence control.

• Full-channel Isolated Anti-interference Design Each input and output channel adopts independent isolated circuit structure. Local short circuit, overload or signal abnormality of a single loop will not spread to adjacent channels or affect the overall module operation. This fault isolation capability effectively reduces equipment failure risks and enhances system operational stability in complex industrial electromagnetic environments.

• High-adaptability Voltage Signal Recognition Optimized voltage threshold design adapts to mainstream industrial DC discrete signal specifications, compatible with field limit switches, safety contacts, solenoid valve feedback signals and other common discrete equipment. It features strong on-site compatibility and no need for additional signal conversion accessories.

• Lightweight & High-reliability Industrial Adaptation Compact reinforced hardware structure resists long-term cabinet vibration, temperature fluctuation and humid and dusty working conditions. Matching redundant fieldbus communication ensures stable real-time transmission of logic signals, meeting unattended continuous operation requirements of industrial automation systems.

4. Industrial Application Scenarios

Foxboro FBM241C P0916JW is widely applicable to general industrial discrete control scenarios requiring simultaneous signal feedback and switch output. It is commonly deployed for auxiliary equipment interlock monitoring and solenoid valve group control in petrochemical and chemical production devices, local sequence logic control of thermal power unit auxiliary systems, start-stop logic and status feedback control of small-scale production equipment in pharmaceutical and fine chemical industries, and discrete signal acquisition and execution control of environmental protection water treatment facilities. Its integrated mixed I/O design is the optimal solution for compact and economical discrete control system configuration.
