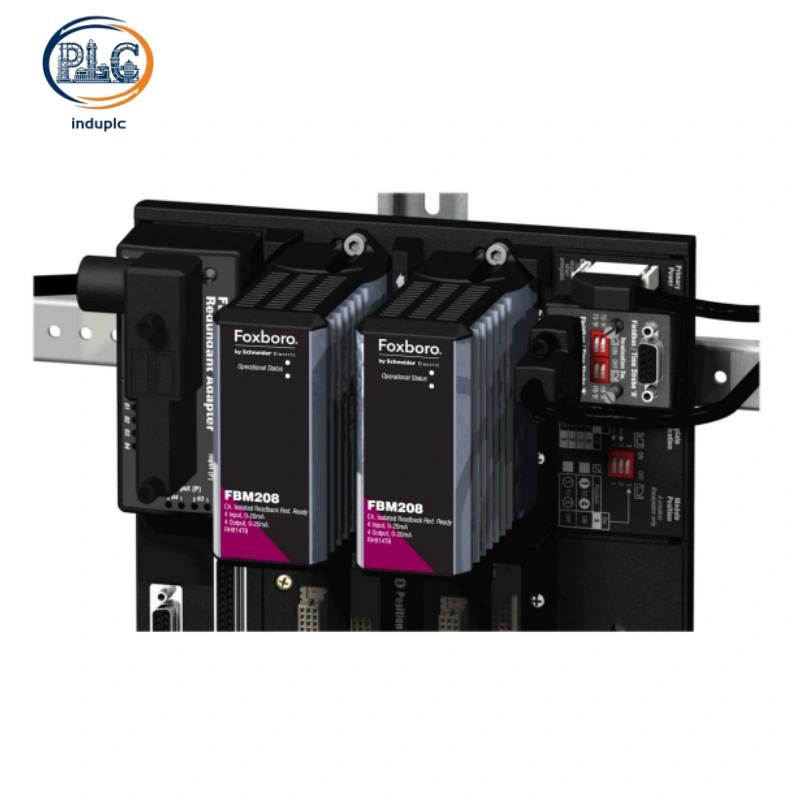

Foxboro FBM208 P0916NN Redundant 4AO Analog Output Module with Readback | I/A Series DCS Unit

1. Product Overview

The Foxboro FBM208 P0916NN is a high-reliability redundant analog output module belonging to the I/A Series Compact 200 I/O family. Different from conventional standard AO or hybrid I/O modules, this unit is uniquely designed with built-in output readback monitoring, dedicated for critical process regulating loops that demand zero drift and uninterrupted control. It delivers stable 0–20mA analog drive signals for field actuators while real-time sampling actual output current values for closed-loop signal verification.

Supporting full redundant module pairing and channel isolation protection, the FBM208 P0916NN eliminates blind spots in traditional analog output control without feedback monitoring. It adopts advanced Sigma-Delta conversion and current-limiting drive circuitry to ensure precise and safe output regulation. Compliant with G3 industrial harsh environment standards and equipped with redundant fieldbus communication, the module supports long-term 24/7 stable operation in key control sections of power, petrochemical and continuous process industries.

2. Core Technical Parameters

• Channel Configuration: 4-channel redundant analog output with readback function

• Output Signal Range: 0–20mA DC standard analog control signal

• Load Capacity: Supports maximum 750Ω field load resistance

• Output Protection: Per-channel current limiting & voltage regulation, max 35mA short-circuit current

• Resolution: 13-bit high-precision conversion resolution

• Temperature Stability: ±50ppm/°C ultra-low temperature drift coefficient

• Common Mode Rejection: ＞100dB@50/60Hz industrial frequency interference

• Communication Mode: Redundant 2Mbps fieldbus data transmission

• Power Consumption: ≤2.5W low power operation

• Environmental Grade: Class G3 anti-vibration and anti-corrosion industrial standard

• Working Temperature: -40°C ~ +85°C wide temperature operating range

• Installation Method: Standard DIN rail baseplate rack mounting

3. Core Product Features

Focusing on safety redundancy and output verifiable control, FBM208 P0916NN has exclusive technical advantages different from ordinary AO modules:

• Built-in Output Readback Monitoring Mechanism The module integrates real-time current readback function for each output channel. The system compares command output value with actual field feedback current, actively identifying signal deviation, line breakage or actuator anomaly. This closed-loop verification effectively avoids hidden faults such as invalid output and unresponsive adjustment in traditional open-loop AO control.

• Independent Channel Safety Protection Every channel adopts isolated current-limiting and voltage-stabilizing circuit design. Short circuit, overload or abnormal load on a single loop will not damage the module or interfere with other channels. The hardware current limiting function prevents actuator burnout caused by over-current output, improving field control safety.

• High-precision & Low-drift Regulation Performance With 13-bit high-resolution conversion and ultra-low temperature drift design, the module maintains highly linear and stable analog output under long-term operation and temperature fluctuation. It ensures precise adjustment of flow, pressure and liquid level loops, reducing process parameter fluctuation.

• Full Redundant Fault-tolerant Deployment Supports dual-module hot standby redundant configuration for key production loops. Automatic seamless switching during main module failure ensures continuous actuator driving output, preventing process shutdown or parameter out-of-tolerance caused by single-point hardware failure.

• Strong Industrial Anti-interference Capability Excellent common-mode interference suppression performance filters on-site power frequency clutter and electromagnetic crosstalk. Optimized circuit design guarantees stable output waveform quality in complex industrial electromagnetic environments.

4. Industrial Application Scenarios

Foxboro FBM208 P0916NN is mainly deployed in high-standard safety-critical regulation loops requiring output verification and redundant backup. It is widely used for reactor parameter adjustment and pipeline flow control in petrochemical refining devices, boiler auxiliary system regulation and unit load control in thermal power plants, precision proportional adjustment in fine chemical and pharmaceutical processes, and key water treatment automatic regulation links. The unique readback monitoring function provides reliable fault diagnosis basis for unattended intelligent operation of industrial control systems.
