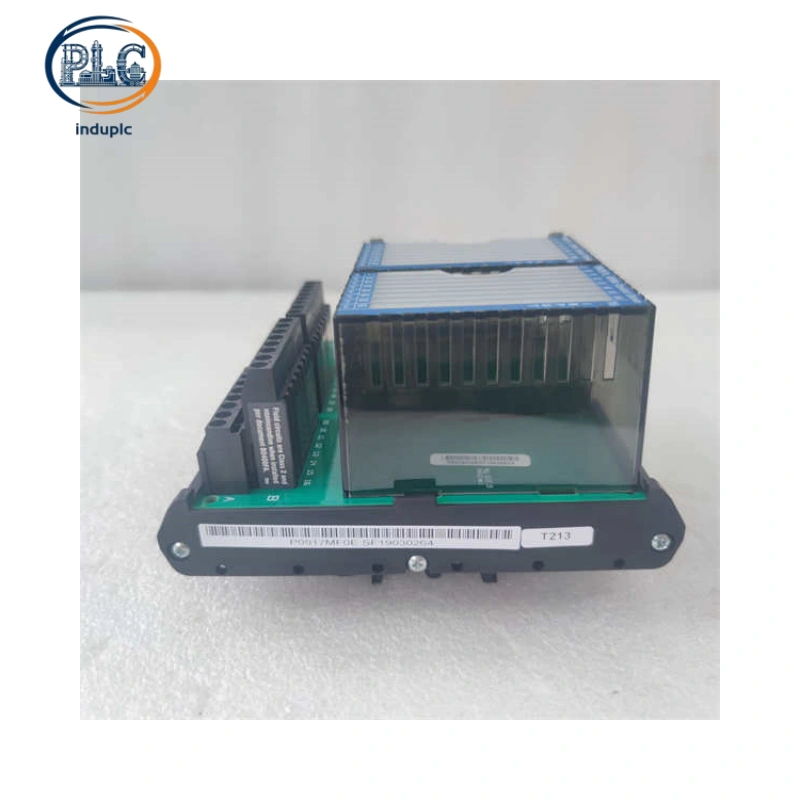

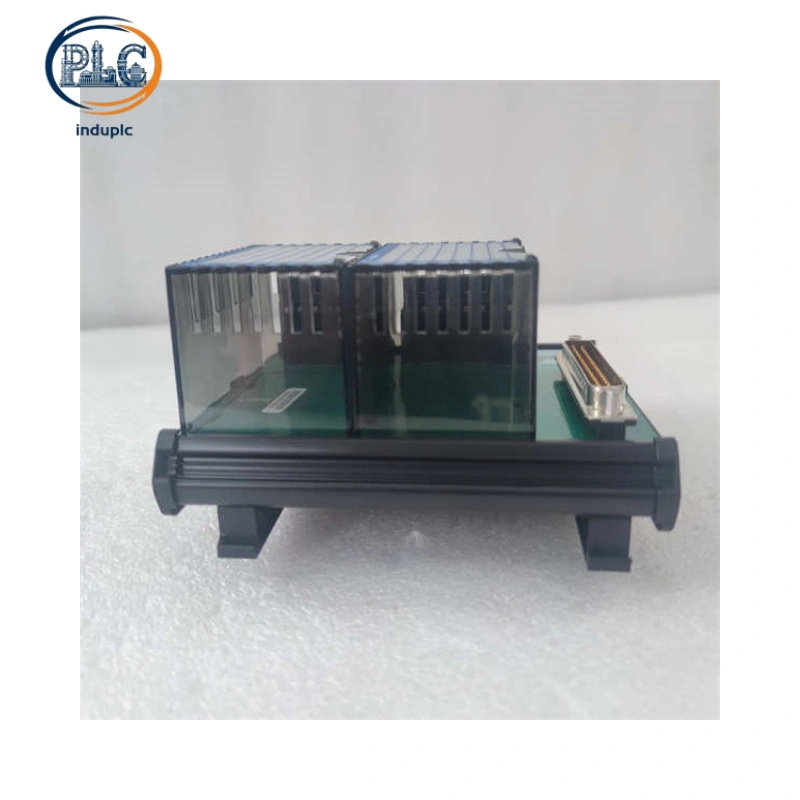

Foxboro FBM207C P0917MF 16-Channel 48VDC Contact Sense Discrete Input Module | I/A Series DCS Unit

1. Product Overview

The Foxboro FBM207C P0917MF belongs to Compact 200 I/O subsystem under I/A Series distributed control system. It serves as a dedicated discrete contact input module, specially designed for collecting on-site switch status and dry contact signals. Distinct from analog signal acquisition boards such as FBM201-FBM205, this unit focuses on digital contact state detection, supporting 48VDC contact sensing and cooperating with matched termination assemblies (TA) to complete signal conditioning. It transmits converted digital switch data to control processors through redundant fieldbus for interlock logic, equipment status monitoring and sequence-of-event recording.

Every channel adopts independent galvanic isolation architecture to avoid interference caused by potential difference and wiring crosstalk. Users can set flexible debounce filtering parameters to filter transient signal jitter on site. Supporting single and redundant module deployment modes, the hardware complies with Class G3 harsh industrial standards, and steadily runs in central control cabinets of chemical, power and energy industries for 24-hour uninterrupted equipment status monitoring.

2. Core Technical Parameters

• Channel Configuration: 16-channel isolated discrete contact input

• Signal Type: 48VDC dry contact / solid-state switch contact sense signal

• Channel Protection: Independent galvanic isolation per channel

• Debounce Setting: Configurable filtering time: 4ms, 8ms, 16ms, 32ms

• Communication Bus: Redundant 2Mbps fieldbus transmission

• Support Function: Discrete signal acquisition, pulse counting, sequence of events (SOE) recording

• Installation Accessory: Works with matched termination assembly (TA)

• Environmental Grade: Class G3 anti-corrosion and anti-vibration industrial standard

• Working Temperature: -40°C ~ +85°C wide operating temperature range

• Installation Method: Standard DIN rail baseplate rack mounting

3. Core Product Features

Developed for industrial switch signal collection, FBM207C P0917MF possesses targeted advantages compared with analog I/O modules:

• Professional 48VDC Contact Detection Design Optimized for 48V dry contact signals from valves, motors and safety switches. It reliably identifies contact closing and opening status, perfectly matching interlock signal layout of large continuous production devices.

• Configurable Signal Debounce Filtering Adjustable software debounce function eliminates instantaneous bounce interference of mechanical contacts. It prevents false triggering of interlock logic caused by transient signal fluctuation and improves control system judgement accuracy.

• Full Channel Isolation Anti-interference Structure Each channel is electrically isolated separately. Short circuit or abnormal signal on a single contact loop will not affect other switch input channels, limiting fault scope and enhancing overall system security.

• Supports SOE Sequence-of-event Recording Equipped with high-precision signal capture capability. It records the exact time stamp of equipment state change, facilitating post-fault tracing and accident analysis for process production.

• Optional Redundant Deployment Scheme The module can be configured as redundant pairs for safety-critical interlock circuits. Dual-module backup ensures continuous signal collection and avoids monitoring loss caused by single module hardware failure.

4. Industrial Application Scenarios

Foxboro FBM207C P0917MF is widely used for digital status collection in I/A Series DCS automation projects. Typical uses include valve feedback signal acquisition, motor running and fault status monitoring, safety interlock contact detection in petrochemical and chemical devices, auxiliary equipment switch signal collection for thermal power generating units, and equipment status monitoring in sewage treatment systems. As core discrete input hardware, it provides reliable digital basis for process interlock protection, equipment monitoring and production event analysis.
