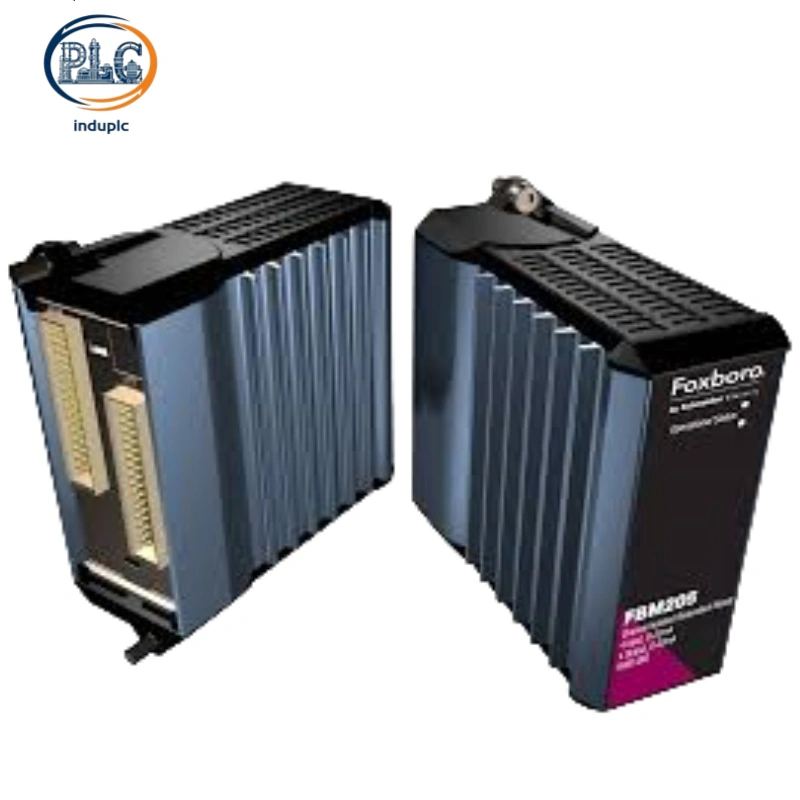

Foxboro FBM205 P0914TD Redundant 4AI/4AO Analog I/O Module | I/A Series DCS Unit

1. Product Overview

The Foxboro FBM205 P0914TD is a high-reliability redundant analog input and output module belonging to the I/A Series Compact 200 I/O system. Different from the standard non-redundant FBM204 model, this unit is purpose-built for critical process loops that require zero downtime and uninterrupted control. It integrates four analog input channels and four analog output channels with dedicated redundant channel pairing architecture, supporting hot-standby signal backup for both field acquisition and control output.

Designed for high-reliability industrial control scenarios, the FBM205 P0914TD adopts independent channel isolation and redundant fieldbus communication structure. It can automatically switch between paired redundant channels during signal anomaly, hardware failure or line fault, ensuring continuous data acquisition and regulator drive output. With G3-grade harsh environment adaptability and industrial wide-temperature design, it is widely deployed in key safety-related control loops of petrochemical, power and continuous process manufacturing systems.

2. Core Technical Parameters

• Channel Configuration: 4-channel redundant analog input + 4-channel redundant analog output (4AI/4AO)

• Signal Range: 0–20.4mA DC (fully compatible with standard 4–20mA industrial transmitters and actuators)

• Redundancy Mode: Dedicated AI/AO channel pairwise redundant backup

• Channel Isolation: Independent galvanic isolation per channel, anti-ground loop interference

• Measurement Accuracy: ±0.03% full span high linear precision

• Temperature Drift: Low temperature drift coefficient for long-term stable operation

• Communication Interface: Redundant 2Mbps fieldbus transmission

• Environmental Standard: Class G3 industrial anti-vibration and anti-corrosion grade

• Working Temperature: -40°C ~ +85°C industrial wide temperature range

• Installation Form: Standard DIN rail baseplate rack mounting

3. Core Product Features

Focusing on fault-tolerant control and uninterrupted process operation, FBM205 P0914TD has exclusive redundant design advantages that standard hybrid I/O modules cannot provide:

• Professional Redundant Channel Backup Mechanism The module supports pairwise redundant configuration of input and output channels. When a single channel fails, suffers wire breakage or signal distortion, the backup channel automatically takes over data collection and control output without manual intervention. This design eliminates single-point failure risks of key process loops and greatly improves system safety integrity.

• Isolated Anti-interference Signal Processing Every channel adopts independent galvanic isolation circuit structure, which effectively isolates on-site electromagnetic interference, ground loop potential difference and crosstalk between adjacent channels. Faults in individual loops will not spread to other measuring and control channels, ensuring overall system stability.

• Continuous Closed-loop Control Guarantee Optimized for critical PID regulation loops such as furnace pressure, reactor flow and tank liquid level. It maintains stable signal acquisition and precise actuator driving output during equipment switching and transient faults, avoiding process shutdown or parameter out-of-tolerance caused by instantaneous signal interruption.

• Adaptive Signal Filtering & Calibration Built-in configurable software filtering function suppresses high-frequency jitter and clutter interference in field signals. It supports remote parameter calibration and threshold setting through the upper system, realizing intelligent maintenance without on-site shutdown.

• High-strength Industrial Environmental Adaptability Reinforced industrial hardware structure adapts to long-term cabinet vibration, temperature fluctuation and humid working environments. It meets G3 industrial standard, supporting 24/7 unattended stable operation of key production systems.

4. Industrial Application Scenarios

Foxboro FBM205 P0914TD is specially applied for high-reliability redundant control loops in continuous process industries. It is mainly used for safety-critical parameter monitoring and regulating control in petrochemical reaction devices, uninterrupted auxiliary system control in thermal power units, key process closed-loop regulation in fine chemical and pharmaceutical production, and important water treatment system automatic control links. Its redundant I/O design effectively avoids production interruption caused by single module or channel failure, becoming the core I/O solution for high-security and high-stability DCS system construction and upgrading.
