Foxboro 873RS-AIPFGZ Online Resistivity Analyzer | 1/4 DIN High-purity Water Monitor

1. Product Overview

The Foxboro 873RS-AIPFGZ is a high-precision microprocessor-driven online resistivity analyzer tailored for ultra-pure water and high-purity liquid process monitoring. Adopting standard 1/4 DIN panel mounting design, this industrial-grade monitor features compact cabinet integration capability and stable long-cycle operation performance. Specifically configured with 120V AC power input, isolated analog output and anti-interference circuit structure, the device is developed for continuous resistivity tracking in water purification, pharmaceutical process water and semiconductor ultra-pure water loops. Different from ordinary water quality meters, the 873RS-AIPFGZ supports dual-channel sensor signal acquisition, enabling flexible switching and comparison monitoring of on-site measuring points, effectively solving single-point monitoring blind spots and data deviation problems in complex water treatment systems.

Built with industrial-grade EEPROM data storage and password protection authority, the analyzer maintains parameter retention and anti-misoperation capability during long-term unattended operation. The optimized circuit layout enhances electromagnetic compatibility, ensuring stable measurement output in industrial cabinets with dense electrical equipment and strong interference sources. It can be seamlessly connected with DCS and PLC systems to realize real-time data transmission, remote monitoring and process linkage control.

2. Core Technical Parameters

The Foxboro 873RS-AIPFGZ adopts professional electrochemical measurement algorithms and hardware calibration standards, with accurate and stable full-range technical indicators, fully meeting high-standard industrial water quality detection requirements:

• Measurement Range: Supports high-precision resistivity detection of ultra-pure water, covering conventional process water monitoring ranges for pharmaceutical, electronic and power industries, with flexible unit switching of MΩ·cm.

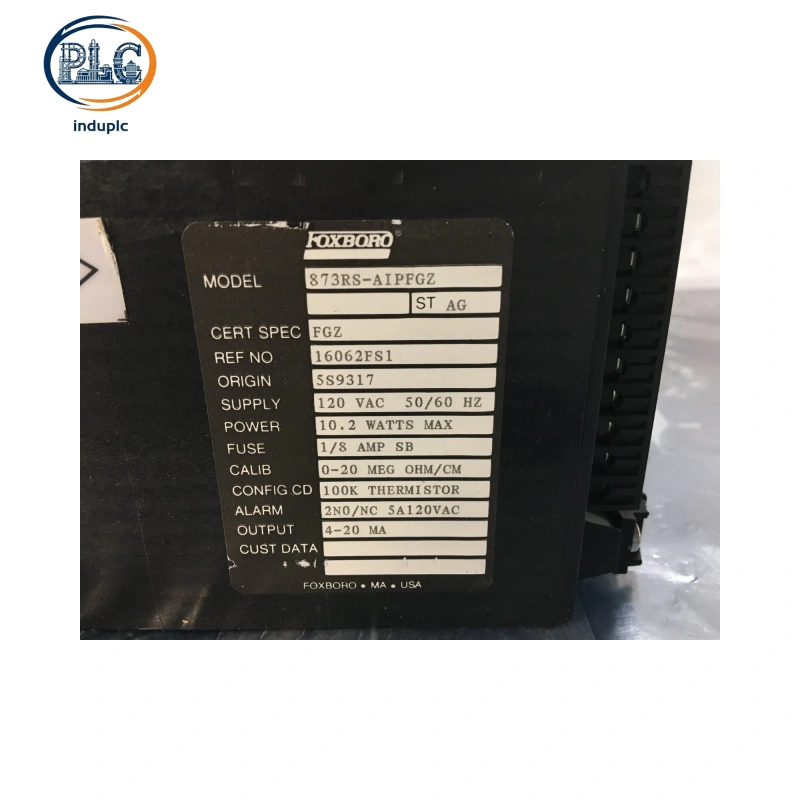

• Working Power Supply: Standard 120V AC industrial power input, adaptive to factory power distribution environment, with maximum power consumption controlled at 10.2W, achieving low-energy long-term operation.

• Signal Output Mode: Equipped with isolated 4-20mA analog signal output, which effectively eliminates ground loop interference and ensures distortion-free long-distance signal transmission.

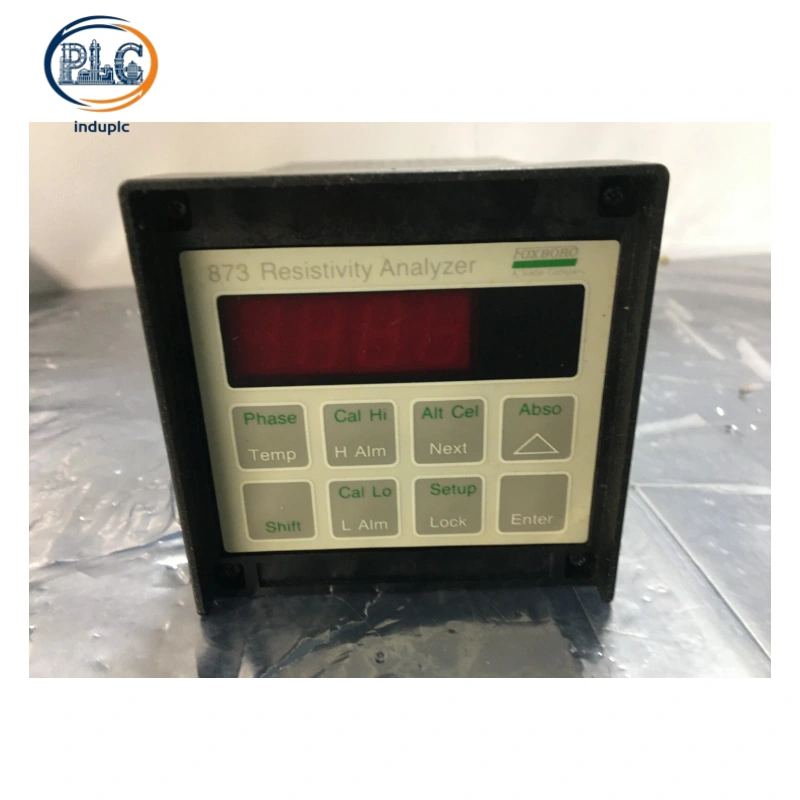

• Display Module: High-brightness four-digit red LED digital display, clear reading in dark cabinet environment, supporting real-time data refresh and stable value locking.

• Environmental Adaptability: Designed for indoor industrial cabinet installation, with stable temperature compensation mechanism, adapting to temperature fluctuation changes in conventional production workshops.

• Signal Acquisition: Dual independent sensor input channels, supporting simultaneous access of two measuring probes, realizing dual-point comparison and backup monitoring.

3. Unique Product Features & Functional Advantages

This Foxboro 873RS-AIPFGZ resistivity analyzer has multiple differentiated functional designs compared with ordinary single-channel water quality analyzers, focusing on process stability, data accuracy and on-site operability:

• Automatic Temperature Compensation Function: Built-in precise temperature sensing unit actively corrects resistivity measurement errors caused by water temperature changes. It avoids data drift in seasonal temperature switching and process water temperature fluctuation, ensuring measurement accuracy consistent throughout the whole working cycle.

• Dual-channel Independent Monitoring Design: Dual-sensor access structure supports simultaneous operation of two measuring points. Users can set single-point display, dual-point switching display or data comparison alarm, which is suitable for pipeline inlet and outlet differential monitoring and multi-loop water quality contrast detection scenarios.

• Dual Programmable Alarm Relay: The device integrates two groups of independent alarm relays, which can flexibly set upper and lower limit thresholds of resistivity. When the water quality exceeds the standard, it automatically triggers on-site alarm or system linkage to ensure timely early warning of abnormal water quality and avoid unqualified water entering the production process.

• Anti-misoperation & Data Anti-loss Mechanism: With authority password lock function, it prevents random modification of on-site parameters by irrelevant personnel. The built-in EEPROM memory can permanently store calibration parameters and configuration data, and the parameters will not be lost after power failure and restart.

• High Anti-interference Industrial Circuit: The whole machine adopts isolated circuit design and internal electromagnetic shielding structure, which can resist common industrial frequency interference and equipment crosstalk in the cabinet, ensuring stable and reliable output of monitoring data for a long time.

4. Industrial Application Scenarios

Relying on high-precision measurement capability and stable industrial adaptability, Foxboro 873RS-AIPFGZ is widely used in high-standard water quality monitoring links in multiple precision industries. It is mainly applicable to ultra-pure water loop monitoring in semiconductor and electronic manufacturing, purified water and injection water quality detection in pharmaceutical production, boiler feed water and condensate water monitoring in thermal power plants, and real-time resistivity supervision in RO reverse osmosis water treatment systems. Its dual-channel monitoring feature is especially suitable for production lines requiring dual-point comparison and differential monitoring, providing reliable data support for standardized production and water quality quality control.
