EPRO PR6423/016-011 6m Long Cable Short-thread Eddy Current Vibration Probe

The EPRO PR6423/016-011 is a special long-range short-thread eddy current sensor in the PR6423 series, featured with factory customized 6-meter full-length rigid cable and 011 low-profile short-thread structure. Developed exclusively for long-span field wiring and shallow-thread limited installation bases, it fills the application gap between 4m medium-long probes and 10m ultra-long probes. With compact thread size, excellent long-distance signal transmission stability and industrial-grade environmental adaptability, it perfectly matches MMS6000 TSI system and supporting CON series preamplifiers. It is widely adopted for shaft vibration, radial displacement and shaft position monitoring of large-scale scattered rotating equipment in thermal power, petrochemical and heavy industrial plants.

1. Short-thread Structure & Long-distance Installation Advantages

PR6423/016-011 adopts integrated one-piece stainless steel probe body with high-temperature oil-resistant and anti-corrosion passivation treatment. The optimized 011 short-thread design abandons redundant thread segments of standard probes, perfectly adapting to shallow mounting holes, thin wall equipment bases and compact bearing box installation spaces, effectively avoiding top collision and assembly interference during installation.

Maintaining standard 8mm probe diameter and universal M10 mounting thread, the probe achieves full interchangeability with conventional PR6423 series sensors without on-site drilling or thread modification. The exclusive 6m rigid cable is specially tailored for long-distance layout between dispersed field equipment and central control cabinets, solving the problem of insufficient length of 4m probes and excessive redundant wiring of 10m ultra-long probes. It features fixed rigid wiring positioning, strong anti-vibration looseness and zero maintenance after installation, suitable for long-term fixed-point monitoring of large-span equipment groups.

2. Precision Measurement & Electrical Characteristics

This long-cable short-thread probe retains series-standard core measurement parameters, with 2mm effective linear range and 8V/mm fixed sensitivity. Precisely factory-calibrated with 4140 standard steel, the full-scale linear error is controlled within ±1% FS, capable of capturing subtle shaft vibration, micro radial runout and floating displacement of high-speed rotating units, providing accurate and continuous raw data for equipment condition trend analysis and early fault identification.

It features DC-20kHz full-band frequency response, covering the whole operating cycle of rotating machinery from static turning, variable-speed adjustment to full-load high-speed operation. The wide temperature tolerance of -40℃ to +180℃ ensures stable measuring accuracy under drastic field temperature changes, with ultra-low long-term zero drift. It greatly reduces the frequency of on-site calibration and data correction, adapting to 24/7 unattended industrial monitoring requirements.

3. 6m Long Rigid Cable & Anti-interference Performance

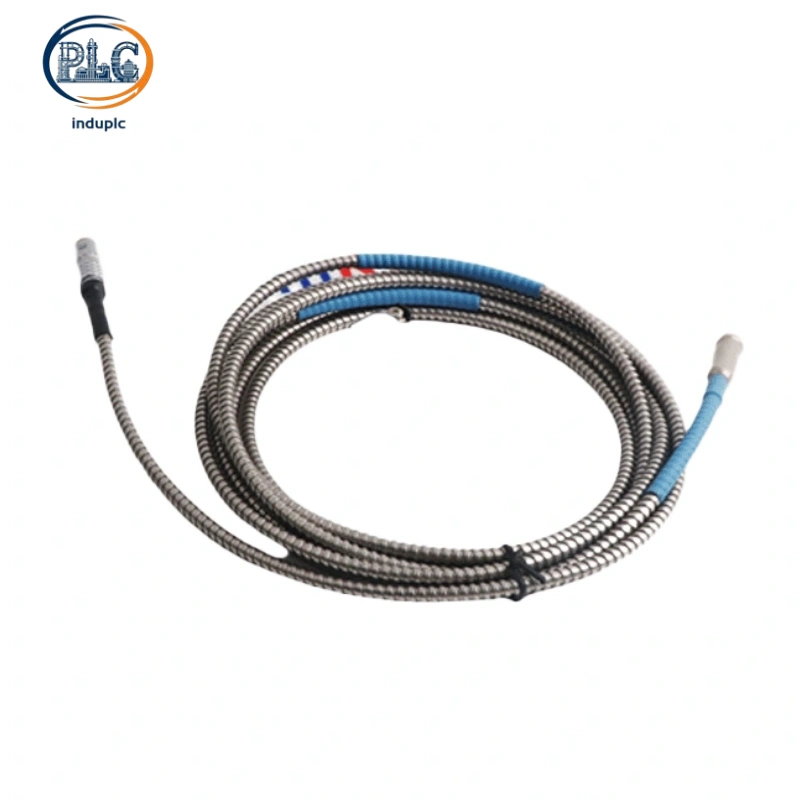

Equipped with dedicated 6-meter extended rigid cable, the sensor adopts oxygen-free copper conductor and high-strength PTFE composite insulation layer, possessing superior high-temperature resistance, oil corrosion resistance and aging resistance. The integral rigid cable structure avoids bending fatigue, sagging deformation and signal jitter common in flexible long cables after long-term static laying, ensuring stable geometric positioning and consistent transmission performance for long-distance wiring.

Adopting aluminum foil full coverage + tinned copper braid double-layer shielding technology, the cable effectively suppresses on-site high-power equipment electromagnetic radiation, power frequency coupling interference and ground loop voltage fluctuation. After professional factory long-line impedance matching, the eddy current high-frequency signal achieves low-loss and distortion-free transmission over 6m long distance, completely solving the problem of signal attenuation and waveform distortion in long-span monitoring loops.

4. Matching Preamplifier & System Adaptation Features

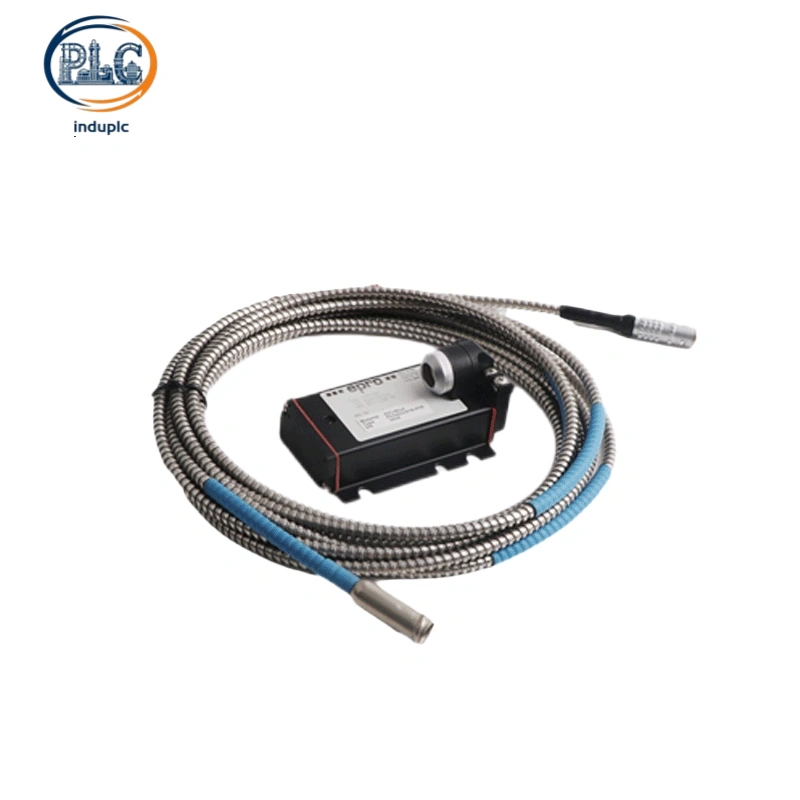

Matched with targeted CON series signal converters, PR6423/016-016 builds high-stability long-distance monitoring loops, with differentiated adaptation for different field wiring and installation scenarios, fully compatible with MMS6000 series TSI host modules:

• CON021: Cabinet DIN-rail mounted signal conditioner, optimized for long-line signal restoration, specially designed for indoor centralized cabinet deployment of 6m long-cable probes, outputting smooth and high-fidelity linear voltage signals for system acquisition.

• CON011: Field-installed waterproof explosion-proof preamplifier with high-level EMI shielding, suitable for long-distance wiring in outdoor open sites and flammable and explosive industrial areas, ensuring interference-free signal transmission in complex field environments.

• CON031: Terminal-type signal processing module, applicable for centralized terminal box wiring of dispersed multi-point long-cable monitoring points, facilitating unified line management and systematic renovation of old long-distance monitoring systems.

5. Core Product Strengths & Industrial Value

• 011 Short-thread Compact Adaptation: Low-profile thread structure solves the installation bottleneck of standard long-thread probes in shallow-hole and thin-wall equipment, realizing interference-free assembly in narrow mounting spaces.

• Exclusive 6m Long-span Cable Design: Fill the blank of 6-meter specification in PR series, perfectly matching large-span equipment-cabinet wiring, avoiding insufficient length and redundant cable chaos of adjacent specifications.

• Optimized Long-line Transmission Stability: Special impedance calibration for 6m long cables effectively suppresses long-line signal attenuation and drift, ensuring consistent measuring accuracy of long-distance monitoring points.

• Strong Field Environmental Tolerance: Integrated anti-vibration, oil-proof, high-temperature and anti-interference design adapts to harsh and scattered industrial field working conditions, reducing long-term operation failure risks.

• High Versatile Renovation Compatibility: Standard electrical parameters and mounting dimensions support direct replacement of old-spec probes, with low on-site transformation difficulty and excellent system compatibility.

6. Main Industrial Application Scenarios

• Long-distance wiring vibration and displacement monitoring of large thermal power steam turbines and auxiliary units with dispersed equipment layout

• Condition monitoring of petrochemical large centrifugal compressors and process rotating machinery with 6m span wiring distance

• Field monitoring of outdoor industrial equipment and offshore platform rotating units requiring long-line fixed wiring

• Performance upgrade and length optimization renovation of old 4m short-cable monitoring systems for large-span equipment groups
