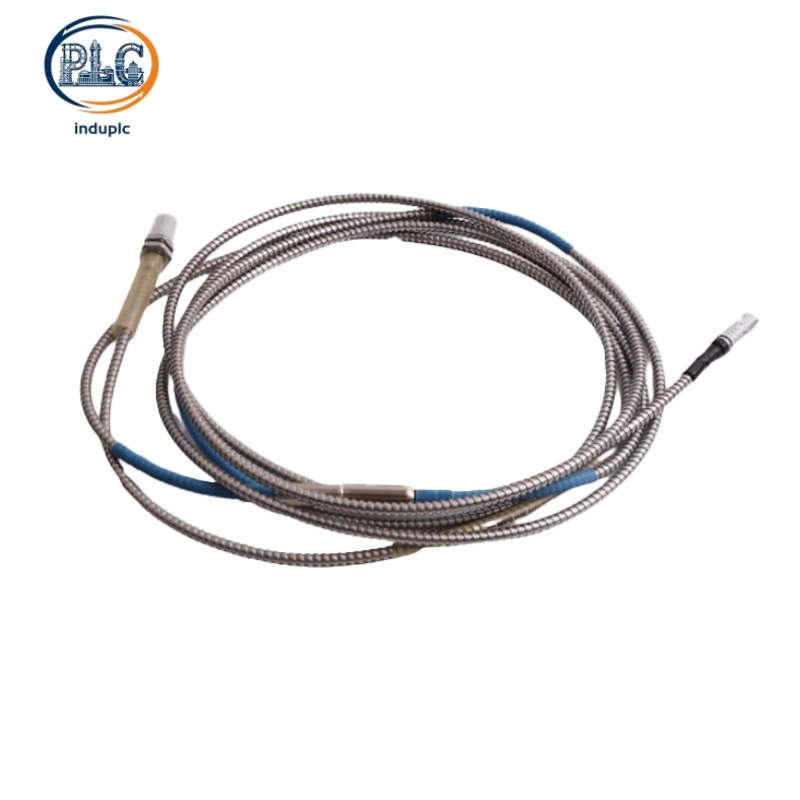

EPRO PR6423/03R-000 Extended Flexible Eddy Current Vibration Probe

The EPRO PR6423/03R-000 is an upgraded extended flexible eddy current probe in the classic PR6423 sensor lineup, designed specifically for high-temperature, narrow-cavity and complex bending wiring scenarios. Differing from standard short-cable and rigid probes, this 03R version integrates 3-meter high-temperature flexible cable and enhanced anti-fatigue structure, balancing ultra-precise non-contact measurement and superior on-site environmental adaptability. It perfectly matches CON series preamplifiers and MMS6000 TSI system modules, serving as a reliable sensing core for shaft vibration, radial displacement and eccentricity monitoring of turbines, compressors and high-speed rotating machinery in power and petrochemical industries.

1. Optimized Mechanical Structure & Installation Advantages

PR6423/03R-000 features a one-piece stainless steel probe body with oil-resistant, anti-corrosion and high-temperature passivation treatment, fully adapting to long-term operation in bearing box oil mist and high-heat equipment cavities. The standard 8mm probe head and universal thread size ensure versatile mounting compatibility, supporting direct replacement of conventional PR6423 series probes without on-site structural modification or parameter recalibration.

The core structural advantage lies in its customized 03R extended flexible cable design. Compared with ordinary fixed probes, the cable supports frequent bending, twisting and dynamic vibration displacement, solving wiring obstacles in narrow bearing gaps, curved pipeline layouts and high-vibration equipment areas. It effectively avoids cable fracture and signal interruption caused by long-term mechanical shaking.

2. Professional Measurement & Electrical Performance

Retaining the industry-standard high-precision parameters of the PR6423 series, PR6423/03R-000 delivers stable 8V/mm fixed sensitivity and 2mm linear measurement range. The full-scale linear error is strictly controlled within ±1% FS, capable of capturing micro-amplitude vibration and tiny shaft position deviations of high-speed rotating equipment, providing accurate original data for equipment fault early warning and operation trend analysis.

With a wide DC-20kHz frequency response range, the sensor tracks real-time dynamic vibration changes without signal lag or waveform distortion. It features ultra-low temperature drift and excellent thermal stability, maintaining consistent measurement accuracy in a wide temperature range from -40℃ to +125℃. Factory calibrated with standard steel materials, it guarantees outstanding repeatability and long-term operational stability, reducing routine maintenance and calibration frequency.

3. Extended Flexible Cable Material & Transmission Stability

Equipped with 3-meter customized high-elastic flexible cable, PR6423/03R-000 adopts fatigue-resistant copper core and high-temperature PTFE insulation layer. The cable body resists aging, oil corrosion and high-temperature radiation, suitable for long-distance wiring between high-temperature equipment cavities and central control cabinets. The flexible structure eliminates internal wire breakage risks under repeated bending and vibration, greatly improving service life compared with ordinary rigid cables.

Built-in double-layer shielding structure of tinned copper braid and aluminum foil fully isolates on-site electromagnetic interference, high-frequency crosstalk and ground loop drift. It realizes lossless and distortion-free transmission of high-frequency eddy current signals, with strictly matched impedance parameters to EPRO original preamplifiers, ensuring zero signal mismatch and stable long-loop monitoring data.

4. Preamplifier & System Compatibility

PR6423/03R-000 relies on EPRO original CON series preamplifiers to complete signal excitation, demodulation and analog conversion, forming a complete and stable industrial monitoring loop, fully compatible with all MMS6000 TSI system modules:

• CON021: Standard cabinet-type preamplifier, suitable for indoor centralized control rooms, providing stable linear voltage output for conventional vibration and displacement monitoring loops.

• CON011: IP67 waterproof and explosion-proof preamplifier, applicable to field hazardous areas such as refineries and offshore platforms, supporting direct field installation near bearing boxes.

• CON031: Terminal wiring preamplifier, ideal for unified wiring renovation and batch replacement of old MMS6000 system monitoring loops.

5. Core Selling Points & Industrial Values

• 3M Extended Flexible Cable Design: Standard 3-meter cable length meets long-distance cabinet wiring demands, flexible anti-fatigue structure adapts to complex installation environments that ordinary probes cannot adapt to.

• High Temperature Resistant Stability: Premium insulation and shielding materials resist high-temperature radiation and oil corrosion, maintaining stable measurement in high-heat equipment operation environments.

• Zero-error Signal Transmission: Precision impedance matching and double-layer anti-interference shielding eliminate data jitter and waveform distortion, ensuring reliable monitoring data for key equipment protection loops.

• Full Universal Compatibility: Plug-and-play interchangeable with all standard PR6423 probes, compatible with full-range MMS6000 systems and CON preamplifiers, low cost for replacement and system upgrade.

• Long Service Life & Low Maintenance: Vibration-resistant, anti-aging and anti-breakage cable structure reduces field failure rate, minimizing daily maintenance workload and equipment downtime loss.

6. Industrial Application Scenarios

• Long-distance wiring vibration monitoring for high-temperature steam turbines and gas turbines in thermal power plants

• Shaft vibration and displacement monitoring for petrochemical compressors with narrow equipment cavities and complex wiring

• High-reliability mechanical condition monitoring for offshore platforms and chemical high-temperature hazardous working areas

• Renovation and upgrade of old monitoring systems requiring extended cable length and anti-vibration optimization
