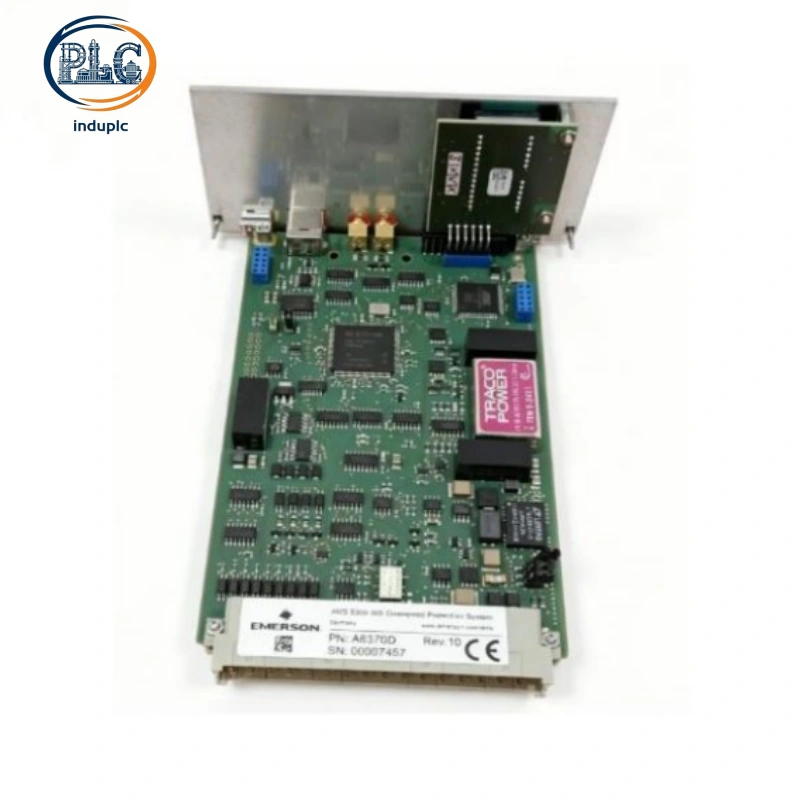

EPRO A6370D Overspeed Monitor | Matching Probes, Extension Cables & CON Series Drivers

EPRO A6370D SIL3 overspeed protection module paired with PR642X eddy current probes, high-shielded cables and CON021 preamplifiers for turbine shaft speed safety monitoring in power & petrochemical plants.

The EPRO A6370D overspeed protection system cannot operate independently. Its stable speed acquisition and protection interlock rely on matched eddy current probes, transmission cables and supporting preamplifiers. Improper matching of accessories often causes false speed alarms or protection failure during long-term industrial operation.

1. Matched Eddy Current Probe Core Features

Supporting PR642X series probes adopt integrated hardened stainless steel sensing head with anti-wear and anti-corrosion treatment, and alloy steel thread sleeve consistent with rotor journal material to avoid measurement error caused by different metal permeability. The standard installation gap is 1.5mm, effective linear range ±1mm, linearity error controlled within ±1%FS after standard steel calibration, ensuring the speed calculation accuracy of A6370D within 0.1%. The probe works steadily from -40℃ to 120℃ with low temperature drift. Optional M101 and M141.5 threads fit narrow mounting holes of bearing boxes, suitable for both new projects and old equipment retrofits. It can withstand continuous vibration on turbines and compressors without signal interruption.

2. Extension Cable Material & Practical Advantages

The matched special cable uses high-purity oxygen-free copper conductor to reduce high-frequency eddy current signal attenuation in long-distance transmission. The inner insulation layer is PTFE fluoroplastic, resistant to 200℃ high temperature and various leaked oil and chemical solvents on site. Double-layer shielding structure (tinned copper braided mesh + aluminum foil full wrapping) forms 360° interference isolation, effectively eliminating electromagnetic crosstalk and ground loop voltage drift in cabinets with inverters and high-power equipment, preventing speed value jump on A6370D. Standard lengths are 5m and 9m, customizable up to 15m. LEMO self-locking plugs for vibration-intensive areas, stripped terminals for fixed cabinet wiring. All cables pass impedance matching test before delivery to ensure reliable pairing with probes and preamplifiers.

3. CON Series Preamplifier Matching Scheme & Scenario Division

A6370D needs CON series preamplifiers to complete signal excitation and voltage conversion, different models for different working conditions:

• CON021: Standard cabinet-mounted type with IP20 protection, outputs -4~-20VDC linear signal perfectly matching A6370D dual-channel input, built-in reverse connection and short-circuit protection, the most cost-effective choice for conventional control rooms.

• CON011: IP67 waterproof upgraded version, directly installed on bearing housings, passes explosion-proof certification with safety barriers, applicable to hazardous areas such as refineries and offshore platforms.

• CON031: Terminal wiring design for large-scale old MMS6000 system renovation, consistent internal performance with CON021.

One preamplifier corresponds to one probe. Two sets of complete loops connect to two channels of A6370D, supporting 1oo2/2oo2 voting redundant protection to meet SIL3 safety requirements for rotating machinery SIS systems.

4. Core Selling Points of Complete A6370D Solution

1. Ultra-fast protection response: Trip reaction time less than 8ms, full loop interlock finished within 35ms under rated speed, effectively avoiding rotor runaway accidents for high-speed rotating equipment.

2. Multiple signal output modes: Supports 4-20mA analog, isolated pulse, fault dry contact and PROFIBUS DP communication, seamlessly connecting with DeltaV, Triconex and other mainstream DCS without additional conversion modules.

3. Regular automatic self-diagnosis: 100ms periodic BIST self-test automatically identifies probe open circuit, cable break and preamplifier faults, outputs fault codes for quick troubleshooting and reduces maintenance downtime.

4. Strong environmental adaptability: Accepts 19.228.8VDC wide voltage power supply, operating temperature -20℃60℃. 3U standard 19-inch rack mounting directly fits original MMS6000 cabinets without structural modification.

5. Full international certifications: IEC 61508 SIL3, ATEX Zone 2, UL and CE qualifications, meeting access standards for large power plants, petrochemical units and offshore energy bidding projects.

5. Typical Application Scenarios

1. Overspeed safety interlock for steam turbines and gas turbines in thermal power plants

2. Rotation speed monitoring and trip protection for centrifugal compressors and large blowers in petrochemical processes

3. Turbo machinery safety monitoring on offshore oil & gas production platforms

4. Safety loop upgrade and hidden danger rectification for aging rotating equipment automation systems
