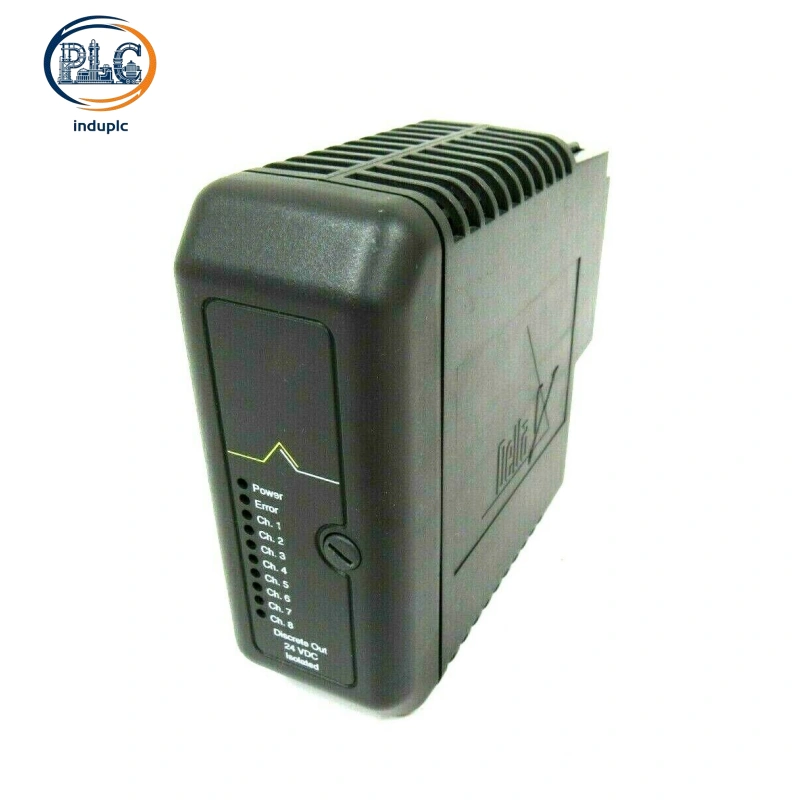

Emerson KJ3001X1-BG1 DeltaV 8-Channel Isolated Discrete Output Module

1. Product Overview

The KJ3001X1-BG1 is a high-reliability discrete output module designed exclusively for Emerson DeltaV distributed control systems. As a core digital execution hardware in industrial process control, this 8-channel isolated DO module converts controller logic commands into on-site switching actions for field equipment. Adopting Form C relay contact output design and full channel electrical isolation, it delivers safe and stable on-off control for solenoid valves, auxiliary relays, contactors and alarm devices. Built for hazardous and continuous process environments, the module features anti-misinsertion keying, comprehensive circuit protection and wide-temperature industrial adaptability, serving as a trusted digital output unit for oil & gas, chemical, power and water treatment DeltaV control cabinets.

2. Core Product Features

1. Form C Relay Contact Output Design Equipped with standard Form C relay contacts, the module supports flexible normally open and normally closed signal switching. It directly drives 24VDC low-power field equipment without intermediate relay conversion, simplifying on-site control loop configuration. The contact structure ensures stable switching capacity and long mechanical service life, suitable for frequent logic switching and interlock control scenarios.

2. High-grade Electrical Isolation & Safety Protection Each output channel achieves independent electrical isolation with a 2500V isolation rating, effectively isolating field load surge voltage and back EMF interference. This isolation design prevents cross-channel signal coupling and protects the DeltaV controller backplane from on-site load faults, greatly improving overall system safety and anti-interference performance in complex electromagnetic workshops.

3. Unique Rotary Keying Anti-misinstallation Structure Integrated rotary keying mechanism avoids mismatching between modules and terminal bases during cabinet assembly. It effectively eliminates installation errors that may cause short circuits or signal failures, standardizing field construction and reducing manual maintenance faults in large-scale I/O cabinet deployment.

4. Real-time LED Status Diagnosis Every channel is equipped with an independent LED indicator, enabling on-site technicians to visually check output status, switch actions and channel faults in real time. Intuitive status feedback drastically shortens troubleshooting time for equipment linkage failures and loop abnormality inspection.

5. Hazardous Area & Harsh Environment Adaptability Certified for hazardous area deployment, the module adapts to explosive dust and gas industrial zones. With industrial-grade component selection, it maintains stable output performance under ultra-wide temperature and non-condensing humidity conditions, resisting workshop vibration and electrical interference for long-term uninterrupted operation.

3. Technical Specifications

• Model: KJ3001X1-BG1

• Alternative Part Number: 12P0557X152 / 12P0557X162

• Product Type: 8-Channel Isolated Discrete Output (DO) Module

• Output Type: Form C Relay Contact Output

• Rated Field Voltage: 24VDC

• Single Channel Load Capacity: 2A Maximum

• Isolation Voltage: 2500V Industrial Grade Isolation

• Local Bus Power: 12VDC, 45mA Typical Consumption

• Operating Temperature: -40℃ ~ +70℃

• Working Humidity: 5%~95% RH, Non-condensing

• Structural Feature: Rotary keying anti-misinstallation design

• Status Indicator: Per-channel LED operation display

• Protection Grade: IP20 (Indoor cabinet installation)

• Compatible System: Emerson DeltaV DCS Control System

• Installation Method: Standard DeltaV DIN Rail Mounting

• Physical Dimension: 127mm × 51mm × 127mm

• Net Weight: 0.2kg

• Industrial Certification: Hazardous area compliant, CE/UL certified

4. Industrial Application Scenarios

1. Solenoid valve switching and pipeline interlock control for petrochemical reaction and refining units

2. Auxiliary equipment relay and contactor logic control in power plant DCS systems

3. Field alarm indicator and safety device triggering control for oil and gas station process systems

4. Pump and valve logic linkage output for sewage treatment and environmental protection automation projects

5. Hazardous area equipment switching control and DeltaV system I/O renovation for process industrial workshops
