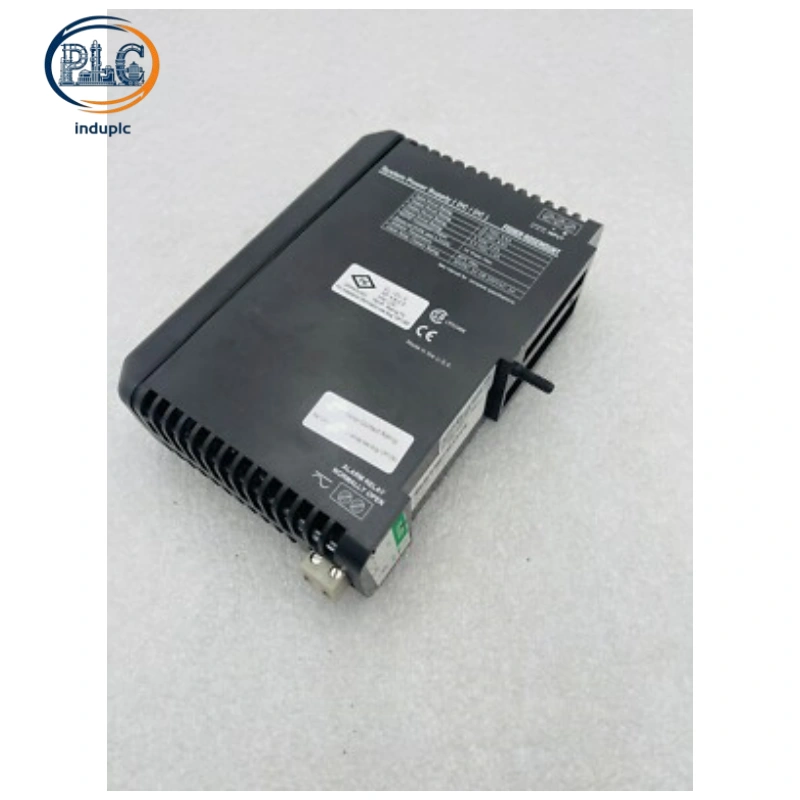

Emerson KJ1501X1-BB1 DeltaV System Passthrough Power Supply Module

1. Product Overview

The KJ1501X1-BB1 is a dedicated DC/DC passthrough power supply module designed exclusively for Emerson DeltaV distributed control systems. Serving as a core power distribution unit for DeltaV CE series I/O modules, this compact power card converts and stabilizes system voltage to supply consistent power for on-site I/O cards, communication modules and field instrumentation loops. Engineered for continuous process industry operation, it delivers reliable power regulation and overload protection, effectively preventing system fluctuation caused by voltage instability. Widely deployed in chemical, oil and gas, power and wastewater automation projects, it ensures stable and safe long-term operation of DeltaV compact control cabinets.

2. Core Product Features

1. Professional 12/12VDC Isolated Power Conversion Adopts high-efficiency DC/DC isolation conversion technology with 12VDC input and stable 12VDC output. The isolated power design eliminates ground loop interference and cross-voltage coupling issues between multiple I/O channels, maintaining clean and stable power output for high-precision signal acquisition modules.

2. Built-in Multi-level Circuit Protection Integrates overvoltage, overcurrent, short circuit and reverse polarity protection circuits. When abnormal load or circuit failure occurs, the module automatically triggers power limiting and protection shutdown to avoid burnout of rear-end I/O modules and control equipment, greatly improving overall system safety and fault tolerance.

3. Low Power Consumption & High Conversion Efficiency Optimized power circuit structure reduces heat loss during energy conversion. With low static power consumption and high working efficiency, it avoids excessive temperature rise inside the cabinet during long-term full-load operation, extending the service life of the entire control system hardware.

4. Industrial-grade Environmental Durability Constructed with high-quality industrial components, the module supports stable operation in wide temperature and humidity ranges. It complies with industrial anti-corrosion and anti-vibration standards, adapting to harsh working environments such as high-temperature workshops, humid control rooms and vibration-intensive production sites.

5. Plug-and-play Compact Installation Features standard DeltaV rail mounting structure with compact size and simple wiring. It matches perfectly with DeltaV CE series I/O modules such as CE4003S2B1 and CE4005S2B1, realizing fast assembly and modular cabinet layout for on-site construction and system renovation.

3. Technical Specifications

• Model: KJ1501X1-BB1

• Alternative Part Number: 12P0678X032

• Product Type: DeltaV System Passthrough DC/DC Power Supply Module

• Input Voltage: 12VDC

• Output Voltage: 12VDC Isolated

• Max Power Rating: 10W

• Isolation Design: Electrical isolation between input and output terminals

• Protection Mechanism: Overvoltage, overcurrent, short circuit, reverse connection protection

• Operating Temperature: -40℃ ~ +70℃

• Working Humidity: 5%~95% RH, non-condensing

• Protection Class: IP20 (cabinet indoor installation)

• Application Compatibility: Emerson DeltaV CE series compact I/O system

• Installation Method: Standard DeltaV DIN rail snap-on mounting

• Industrial Standard: Compliant with process industry EMC and anti-corrosion standards

4. Industrial Application Scenarios

1. Stable power supply support for DeltaV CE series analog and communication modules in petrochemical process control cabinets

2. Voltage regulation and power protection for field instrument loops in natural gas station automation systems

3. Hardware power distribution and anti-interference processing for fine chemical reactor monitoring systems

4. Power stabilizing configuration for wastewater treatment plant DCS signal acquisition units

5. Power supply renovation and upgrade of old DeltaV distributed control systems in power plant auxiliary workshops
