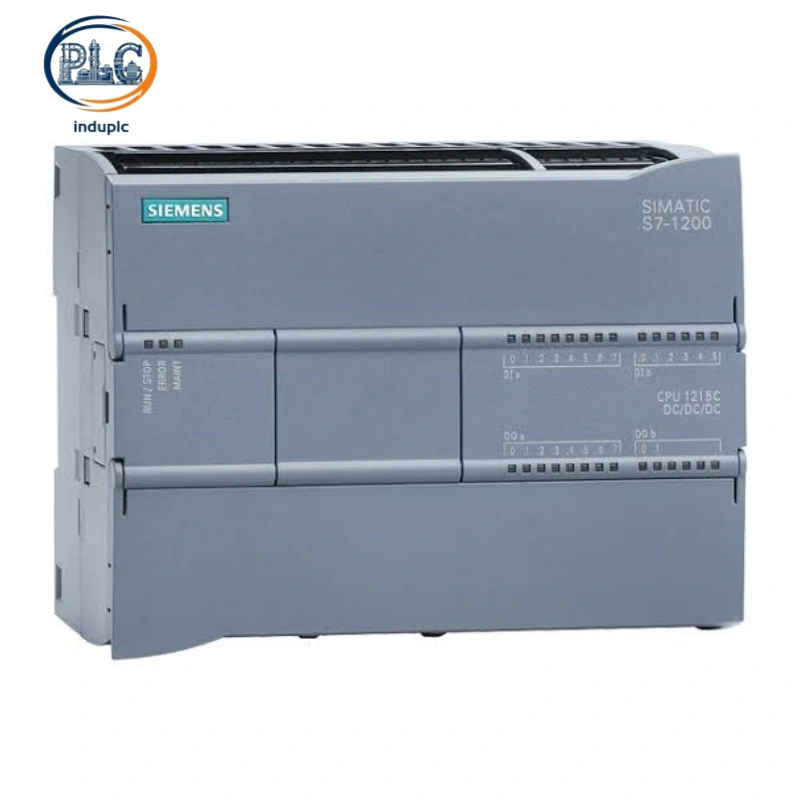

Siemens 6ES7215-1AG40-0XB0 | S7-1200 CPU 1215C DC/DC/DC Compact PLC

6ES7215-1AG40-0XB0 is a high-end compact CPU in the Siemens SIMATIC S7-1200 series. As a high-spec DC transistor output model of CPU 1215C, it is equipped with richer onboard I/O, integrated analog channels, larger memory and dual Ethernet ports. Designed for medium and high-precision automation equipment requiring multi-point control, analog acquisition and high-speed motion positioning, this module delivers excellent operational efficiency and system expandability. It serves as a high-performance core controller for complex small and medium-sized industrial automation projects.

Core Hardware and Electrical Parameters

Power Supply and Onboard I/O Configuration

The module adopts standard 24V DC industrial power supply, with a stable input voltage range of 20.4V DC to 28.8V DC, adapting to standard DC power distribution systems in industrial control cabinets. The integrated onboard I/O configuration includes 14 digital inputs, 10 digital transistor outputs, 2 analog inputs and 2 analog outputs, realizing all-in-one digital control and analog signal adjustment. The transistor output supports high-frequency pulse output, fully meeting high-precision stepping and servo motion control requirements. With 125KB program memory and 10MB data memory, it supports complex logic programming, formula storage and long-term operational data recording for sophisticated automation systems.

Communication and Motion Control Resources

6ES7215-1AG40-0XB0 features dual integrated PROFINET Ethernet ports, supporting S7 communication, TCP/IP, ISO-on-TCP, OPC UA and open user communication protocols. The dual-port design realizes network isolation, equipment cascading and simultaneous connection of upper computer and HMI, greatly improving networking flexibility. The module is equipped with 8 high-speed counters and 8 high-speed pulse output channels, supporting multi-axis synchronous high-precision positioning control without additional expansion boards. It supports full-range expansion of signal modules and signal boards, providing powerful scalability for system function upgrading and signal expansion.

Protection Grade and Anti-interference Performance

This CPU module has an IP20 industrial protection grade and is suitable for installation inside closed industrial control cabinets. The built-in high-grade EMC anti-interference circuit effectively shields electromagnetic interference from on-site inverters, contactors and variable-frequency equipment. It maintains stable 24-hour continuous operation in complex electromagnetic environments and complies with CE, UL, UKCA and other international industrial safety certifications.

Functional Highlights

1. It has an ultra-fast program scanning cycle, capable of processing complex multi-group interlock logic and synchronous motion control. The built-in high-precision PID control block realizes closed-loop constant regulation of temperature, pressure and flow signals, ensuring stable process control accuracy.

2. It supports multi-level program encryption, block protection and access authority management, effectively preventing unauthorized program copying, tampering and leakage, and fully protecting manufacturers’ core process technologies.

3. Fully compatible with TIA Portal engineering software, it supports offline simulation, online real-time monitoring, parameter modification and comprehensive fault diagnosis, greatly improving equipment debugging efficiency and reducing on-site maintenance costs.

4. High-frequency transistor output adapts to high-precision and high-speed motion control scenarios. The integrated analog input and output channels eliminate the need for external analog modules, simplifying cabinet wiring and reducing overall equipment configuration costs.

5. Dual Ethernet port design supports industrial network segmentation and device daisy chaining, meeting the networking and data transmission requirements of intelligent factory automation systems.

Environmental Adaptability and Structural Installation

6ES7215-1AG40-0XB0 adopts a compact integrated modular structure, supporting quick clamping installation on standard NS35 DIN rails with minimal cabinet space occupation. The horizontal installation operating temperature ranges from 0℃ to 55℃, and the vertical installation operating temperature ranges from 0℃ to 40℃. The storage temperature ranges from -40℃ to 70℃, adapting to long-term equipment storage and seasonal temperature fluctuations in industrial environments.

The industrial flame-retardant and anti-aging shell has excellent vibration resistance, heat dissipation and mechanical stability, supporting long-term uninterrupted operation of automated production lines and precision testing equipment.

Industrial Application Advantages

Integrated digital and analog I/O of 6ES7215-1AG40-0XB0 integrates signal acquisition, logic control and analog adjustment functions, eliminating the need for basic expansion modules and optimizing equipment cost. High-speed motion performance and dual-port Ethernet networking capability adapt to high-precision and intelligent automation scenarios. Larger memory capacity supports complex programs and multi-group recipe data storage, suitable for multi-process and multi-parameter production equipment. Strong system expandability reserves long-term upgrade space for equipment intelligent transformation.

Typical Application Scenarios

This module is widely used in high-precision and medium-complexity automation equipment, including multi-axis automatic assembly equipment, intelligent packaging production lines, precision testing and measuring instruments, automated handling and sorting systems, constant temperature and pressure closed-loop process control equipment, and automated processing machinery. It is the preferred high-performance controller for medium and high-end discrete automation and process control projects.
