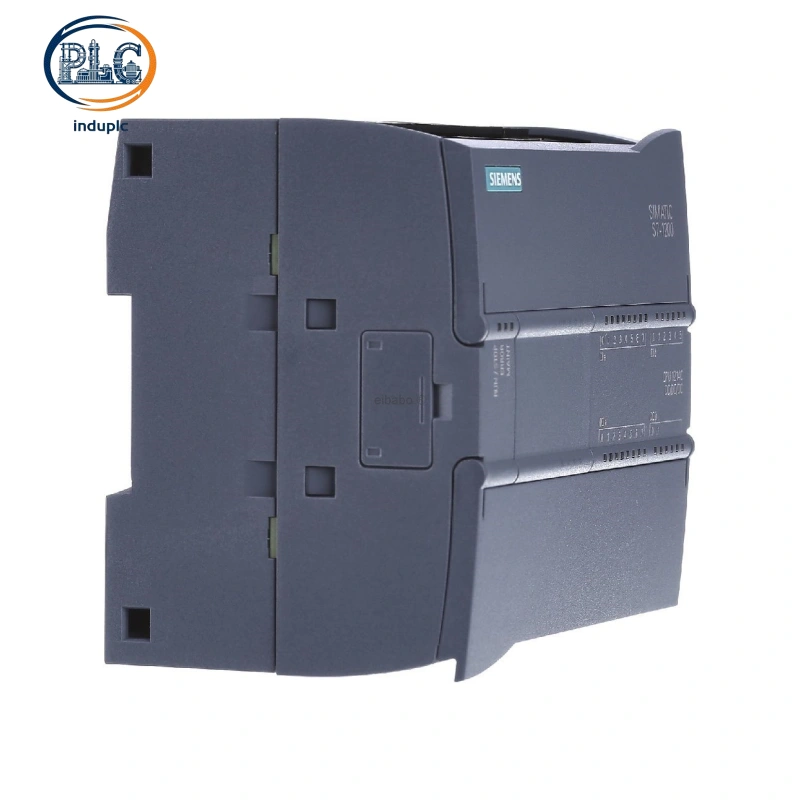

Siemens 6ES7214-1AG40-0XB0 | S7-1200 CPU 1214C DC/DC/DC Compact PLC Product Description

6ES7214-1AG40-0XB0 is a high-performance compact CPU in the Siemens SIMATIC S7-1200 series. Adopting 24V DC power supply and transistor DC output design, this controller features richer onboard I/O resources, larger memory capacity and stronger expansion performance compared with entry-level models. It is specially designed for medium and small-scale discrete automation equipment requiring multi-point signal control and simple motion control. With stable operation performance and excellent compatibility, 6ES7214-1AG40-0XB0 serves as a mainstream cost-effective core controller for standard industrial automation projects.

Core Hardware and Electrical Parameters

Power Supply and Onboard I/O Configuration

The module supports standard 24V DC industrial power supply, with a tolerable voltage fluctuation range of 20.4V DC to 28.8V DC, adapting to complex and unstable power supply environments on industrial sites. The fixed onboard I/O configuration includes 14 digital inputs, 10 digital transistor outputs and 2 analog input channels, meeting the integrated acquisition and control demands of digital signals and conventional analog signals such as temperature and pressure. Transistor output supports high-frequency pulse signal output, which can be used for high-precision stepping and servo positioning control. Equipped with 100KB program memory and 8MB data memory, it can store complex control programs, production formulas and on-site operation data, fully meeting the operation requirements of medium-complexity automation systems.

Communication and Motion Control Resources

Built with one independent PROFINET Ethernet port, the module supports multiple mainstream communication protocols including S7 communication, TCP/IP, ISO-on-TCP and open user communication. It can realize stable data interaction with HMI touch screens, upper monitoring systems and other PLC equipment, and supports network remote debugging and data upload. The module is equipped with 8 high-speed counters and 8 pulse output channels, realizing multi-axis independent motion control without additional expansion boards. It supports external expansion of multiple signal modules and signal boards, reserving sufficient upgrade space for subsequent equipment function modification and capacity expansion.

Protection Grade and Anti-interference Performance

With IP20 industrial protection grade, the module is suitable for installation inside closed industrial control cabinets. The built-in professional EMC anti-interference circuit can effectively shield electromagnetic interference generated by on-site frequency converters, contactors and other electrical equipment. It maintains long-term stable and continuous operation in complex electromagnetic environments of production workshops, and has passed multiple international industrial safety certifications to ensure reliable industrial application performance.

Functional Highlights

1. It has an ultra-fast program scanning cycle, which can quickly respond to multi-group complex interlock logic. The built-in PID control block independently completes closed-loop constant regulation of analog signals, realizing automatic and stable control of process parameters.

2. It supports multi-level program encryption and block permission protection, effectively preventing unauthorized copying, tampering and reading of programs, and protecting the core process technology and intellectual property of equipment manufacturers.

3. Fully compatible with TIA Portal engineering software, it supports offline program simulation, online real-time monitoring, parameter modification and detailed fault code diagnosis, greatly improving on-site debugging efficiency and shortening equipment maintenance cycle.

4. High-frequency transistor output meets high-precision multi-axis motion control requirements, eliminating the need for additional dedicated motion modules, simplifying cabinet electrical wiring and reducing overall equipment configuration costs.

Environmental Adaptability and Structural Installation

Adopting integrated slim modular structure, the module supports quick clamping installation on standard NS35 DIN rails, occupying minimal cabinet internal space and realizing compact and neat electrical cabinet layout. The horizontal installation working temperature ranges from 0℃ to 55℃, and the vertical installation working temperature ranges from 0℃ to 40℃. The storage temperature ranges from -40℃ to 70℃, adapting to long-term equipment storage and seasonal temperature changes in industrial environments.

The industrial flame-retardant shell has excellent vibration resistance, aging resistance and heat dissipation performance, supporting 24-hour uninterrupted long-term stable operation of equipment, and adapting to long-term continuous working conditions of industrial production lines.

Industrial Application Advantages

Rich onboard I/O resources integrate digital signal control and analog signal acquisition functions, eliminating the need for basic expansion modules and reducing equipment procurement costs. The high-precision motion control function meets the positioning requirements of automated processing and handling equipment. The standard PROFINET Ethernet interface supports equipment networking and industrial data collection, realizing intelligent monitoring and visual management of production equipment. Strong hardware expansibility and software compatibility ensure the secondary development and upgrade potential of equipment, improving the service life and practical value of automated machinery.

Typical Application Scenarios

This module is widely applicable to medium and large-scale discrete automation equipment and process control projects, including multi-station automatic assembly lines, intelligent packaging equipment, automated handling and conveying systems, precision testing and detection equipment, constant temperature and pressure closed-loop control systems, and centralized logic control of fan and water pump units. It can fully undertake complex logic control, analog signal acquisition and multi-axis motion control tasks of medium-sized automation projects.
