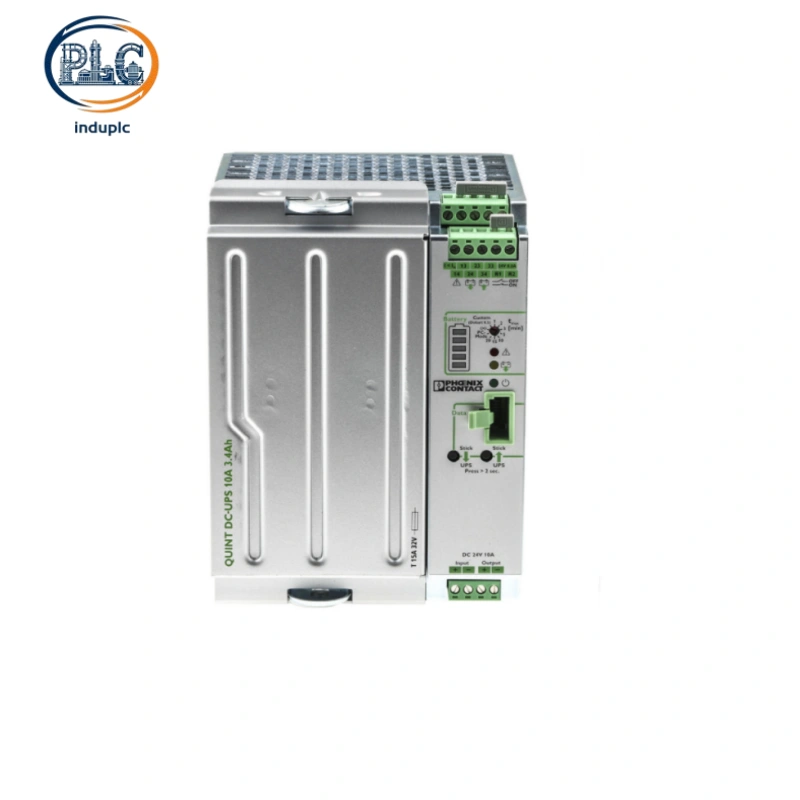

Phoenix Contact 2320267 | QUINT-UPS/24DC/24DC/10/3.4AH Integrated DC UPS

The Phoenix Contact 2320267 is a compact all-in-one industrial DC UPS with built-in AGM battery, designed for space-limited 24V control cabinet layouts. Bearing the official model QUINT-UPS/24DC/24DC/10/3.4AH, the 2320267 integrates power regulation and energy storage into a single DIN rail unit, eliminating the need for separate battery modules. This genuine Phoenix Contact 2320267 integrated UPS delivers stable 10A continuous output and intelligent power management, ideal for protecting small and medium-sized automation equipment from grid dips and sudden power outages.

Compact Integrated Design & Technical Parameters

Different from split-type UPS systems, the Phoenix Contact 2320267 adopts an integrated body structure with embedded 3.4Ah battery, greatly saving internal cabinet space while ensuring complete industrial-grade performance for long-term stable operation.

• Part Number：2320267

• Full Model Name：QUINT-UPS/24DC/24DC/10/3.4AH

• Input Voltage：18V DC ~ 30V DC wide adaptive range

• Rated Output：24V DC / 10A continuous current

• Built-in Battery：3.4Ah sealed AGM maintenance-free battery

• Max Backup Time：Up to 900 seconds under light load conditions

• Mounting Method：Standard DIN rail with UTA 107/30 adapter

• Working Temperature：-25℃ ~ +60℃ industrial wide temperature range

• Protection Feature：IP20 touch and dust protection, built-in SFB selective fuse breaking

The compact body size of the 2320267 Phoenix Contact integrated UPS simplifies on-site wiring and installation, perfectly matching compact control cabinet design standards for modern automated systems.

Core Performance & Intelligent Functional Advantages

Equipped with Phoenix Contact exclusive IQ intelligent technology, the 2320267 integrated UPS supports real-time monitoring of battery status, remaining backup time and operating temperature. The system automatically adjusts charging parameters according to battery health conditions, effectively extending the service life of the built-in battery and avoiding overcharging or aging attenuation.

The Phoenix Contact 2320267 features POWER BOOST power reserve technology, providing 1.5 times instantaneous current output to ensure reliable startup of difficult industrial loads. With IFS communication interface, the 2320267 can upload operating data and fault alarms to upper monitoring systems, realizing full-cycle predictive maintenance. The integrated maintenance-free battery design requires no daily electrolyte replacement, greatly reducing on-site operational workload.

On-Site Application & System Matching

The Phoenix Contact 2320267 all-in-one UPS is widely used in compact industrial control scenarios that require stable 24V DC uninterrupted power supply. The 2320267 10A integrated UPS is perfectly suitable for small automated production units, environmental monitoring equipment, building automation control cabinets and intelligent testing devices.

As a plug-and-play original Phoenix Contact power backup device, the 2320267 needs no additional battery accessories, supporting rapid deployment and system upgrade. It effectively protects core equipment such as PLCs, touch screens and data acquisition modules, preventing program loss and equipment shutdown faults caused by instantaneous power failure and voltage fluctuation.
