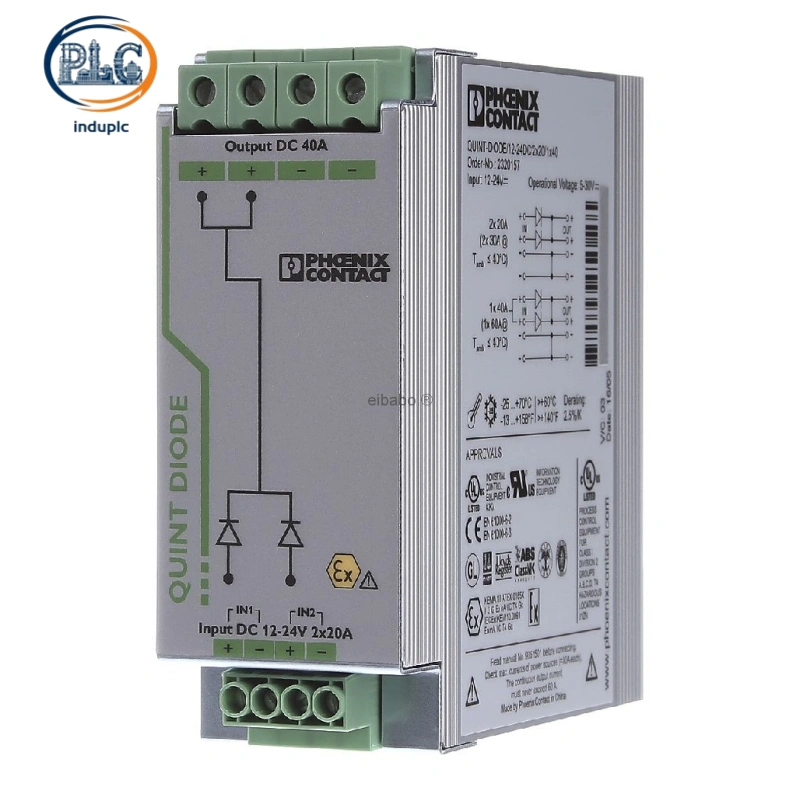

Phoenix Contact 2320157 | QUINT-DIODE 12-24DC Redundancy Module

The Phoenix Contact 2320157 is a professional DIN rail diode redundancy module designed for industrial DC power parallel systems. Modeled QUINT-DIODE/12-24DC/2X20/1X40, the 2320157 solves core power supply risks such as reverse current backflow and cross-interference in multi-power parallel operation. This genuine Phoenix Contact 2320157 redundancy module realizes fault isolation between dual power supplies, ensuring uninterrupted power output when a single power unit fails, greatly improving the stability of industrial control power systems.

Core Product Parameters & Industrial Structure

Engineered for 12V to 24V DC industrial power scenarios, the Phoenix Contact 2320157 features high-current load capacity and rugged industrial hardware design, adapting to long-term continuous operation in factory control cabinets.

• Part Number：2320157 (QUINT-DIODE/12-24DC/2X20/1X40)

• Input Voltage Range：10V DC ~ 30V DC (adapts 12VDC and 24VDC standard power systems)

• Rated Current：2×20A dual-channel input / 1×40A single-channel output

• Max Load Current：2×30A low-temperature overload capacity

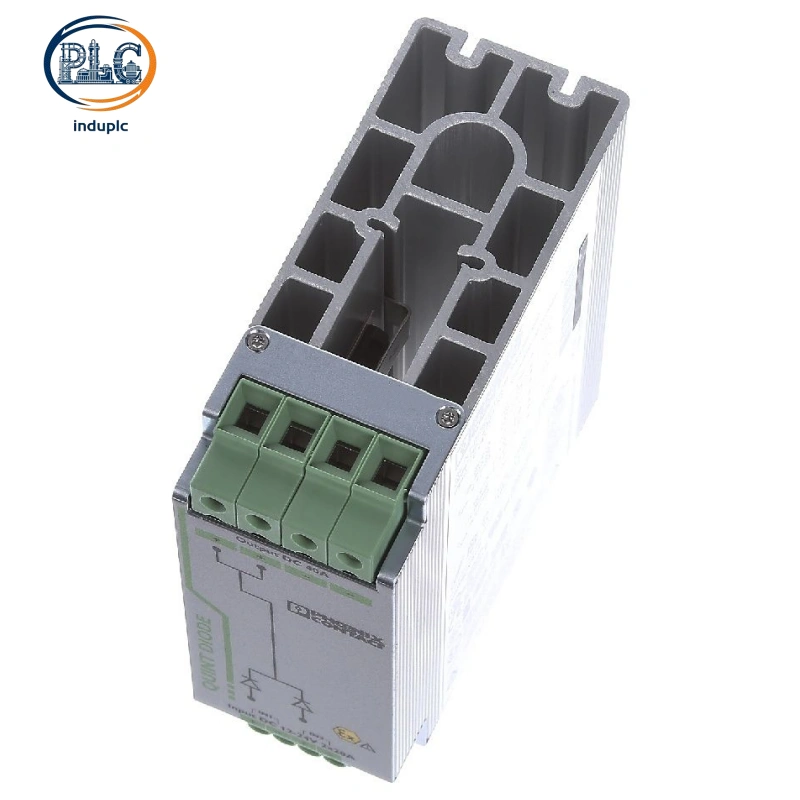

• Connection Type：Stable screw terminal wiring

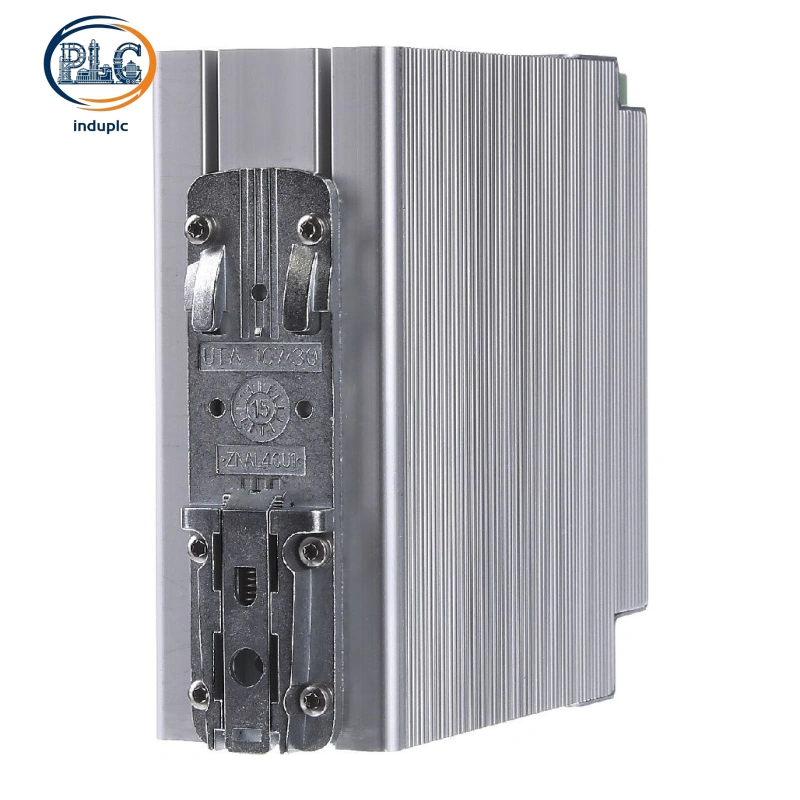

• Mounting Method：Standard DIN rail installation

• Operating Temperature：-25℃ ~ +60℃ industrial wide temperature range

The zinc-plated steel sheet housing endows the 2320157 Phoenix Contact diode module with excellent vibration and impact resistance, fully meeting industrial on-site harsh environmental adaptability requirements.

Working Principle & Core Functional Advantages

Different from ordinary single diodes, the Phoenix Contact 2320157 professional redundancy module adopts optimized diode isolation circuit, specially used for parallel redundant power supply systems. When two power supplies work in parallel, the 2320157 power redundancy module can effectively block reverse current, avoid faulty power supply dragging down the normal operating unit, and realize automatic switching and fault isolation.

The dual-input and single-output design of the Phoenix Contact 2320157 supports two power units running simultaneously. If one power supply fails, the module will automatically isolate the faulty branch without manual intervention, ensuring continuous and stable power supply for rear-end loads. It not only improves power system redundancy, but also allows on-site hot maintenance and replacement of faulty power supplies without system shutdown.

System Matching & Industrial Application Scenarios

The Phoenix Contact 2320157 is perfectly compatible with QUINT series 12V/24V DC industrial power supplies, widely deployed in key scenarios requiring uninterrupted power guarantee. The 2320157 DIN rail redundancy module is commonly used in automated production lines, petrochemical control systems, water treatment equipment and intelligent logistics power distribution cabinets.

In industrial projects with high power supply reliability requirements, installing the original Phoenix Contact 2320157 module can effectively avoid equipment shutdown, PLC program interruption and data loss caused by single power supply failure. It is also an essential core component for upgrading ordinary power systems to redundant fault-tolerant power architecture.
