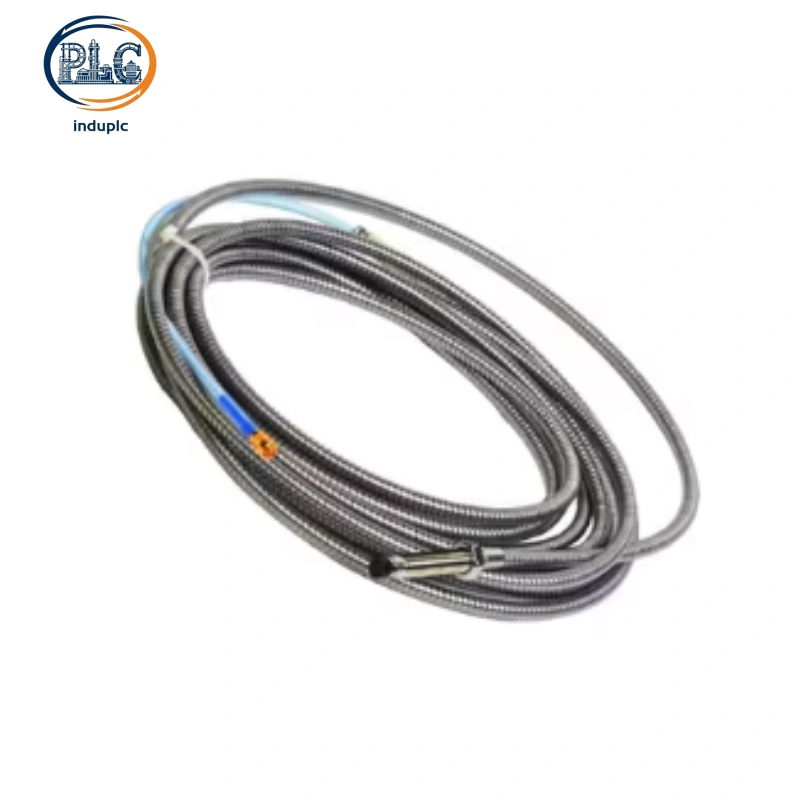

Bently Nevada 330102-00-25-05-02-00 | 3300 XL 8mm Threaded Proximity Probe

The Bently Nevada 330102-00-25-05-02-00 is a high-precision 3300 XL 8mm threaded eddy-current proximity probe, a core model in Bently Nevada’s industrial non-contact transducer series. Different from the threadless 330101 probe series, this 330102 variant features an integrated threaded probe body for direct screw-in installation, delivering ultra-stable positioning for machinery vibration and displacement monitoring. Designed for critical rotating equipment including steam turbines, centrifugal compressors and generators, it accurately measures shaft radial vibration, axial thrust position and rotor eccentricity via high-frequency eddy-current induction technology. Equipped with a 25-meter factory molded integral cable and standard linear range configuration, it offers excellent on-site adaptability for large-span equipment layout and long-distance cabinet wiring. Fully compatible with 3300 XL proximitor sensors and 3500 series TSI machinery protection systems, it is widely adopted in power, petrochemical and heavy industrial safety monitoring projects.

1. Core Technical Specifications

Full Part Number：330102-00-25-05-02-00

Product Series：3300 XL 8mm Threaded Proximity Transducer System

Measurement Principle：High-frequency eddy-current non-contact electromagnetic induction

Probe Diameter：8mm standard industrial probe size

Mounting Structure：Integrated threaded probe body, direct screw-in fixed installation

Standard Sensitivity：7.87 V/mm (200 mV/mil) factory precision calibrated, consistent with 3300 XL series standard sensitivity

Linear Measurement Range：0–2mm (0–80mil) standard linear range for conventional industrial vibration monitoring

System Resolution：High micro-displacement resolution, capturing subtle rotor vibration and position deviation in real time

Cable Configuration：25-meter factory integrated non-armored FEP insulated shielded cable

Operating Temperature Range：-40℃ ~ +85℃ wide industrial temperature resistance

Target Material Adaptation：Standard ferromagnetic metal targets (carbon steel, alloy steel turbine/compressor rotors)

Shielding Performance：Multi-layer integrated shielding structure, effectively resisting on-site EMI electromagnetic interference and signal crosstalk

Structure Grade：Hermetically sealed stainless steel probe body, oil-proof, dust-proof, corrosion-resistant and anti-aging

System Compatibility：Perfectly matches 330180 series proximitor sensors and 3500/42, 3500/45 TSI monitoring modules

Industry Compliance：Fully compliant with API 670 machinery protection system mandatory standards

Certification：CSA, ATEX, IECEx hazardous area explosion-proof safety certification

2. Full Ordering Code Parsing (330102-00-25-05-02-00)

The 330102 series six-segment coding fully defines the probe’s mechanical structure, cable length, range and electrical configuration. This model features threaded body structure and 25-meter ultra-long factory cable, suitable for large-site long-distance wiring scenarios.

3. Matching System & Supporting Accessories

4. Core Product Advantages

The 330102-00-25-05-02-00 threaded probe solves the positioning instability problem of threadless probes, featuring integrated thread structure for direct and fast installation with high positioning accuracy and strong anti-vibration capability. Adopting standard 0–2mm linear range and industry-unified 7.87V/mm sensitivity, it delivers highly consistent and repeatable measurement data, fully matching mainstream TSI system calibration standards. Equipped with a 25-meter factory one-piece cable, it eliminates on-site cable welding and intermediate joint faults, greatly improving signal transmission stability and construction efficiency.

With non-contact eddy-current measurement principle, the probe has no mechanical friction loss and ultra-long service life, suitable for long-term 7×24-hour online monitoring. The fully sealed stainless steel body and multi-layer shielding design resist dust, oil pollution and strong electromagnetic interference on industrial sites. Standard industrial certification and API 670 compliance ensure reliable operation in conventional and hazardous explosive environments. Compared with short-cable probes, the 25-meter ultra-long cable adapts to large-span equipment layout and remote cabinet installation, with wider on-site applicability.

5. Industrial Application Scenarios

This threaded long-cable proximity probe is widely used for fixed-point precision monitoring of core rotating machinery in large industrial sites. In thermal power plants, it is applied to steam turbine shaft vibration, thrust bearing displacement and rotor swing monitoring, providing stable and accurate data support for unit TSI protection systems. In petrochemical and natural gas industries, it monitors high-speed centrifugal compressors, turbo-expanders and process pressurization equipment, adapting to remote cabinet wiring layout of large petrochemical units. It is also suitable for generator sets, large industrial pumps and blower equipment monitoring, perfectly fitting scenarios requiring fixed thread installation and ultra-long-distance signal transmission, effectively improving the overall stability and accuracy of machinery safety monitoring systems.
