1. Core Technical Specifications

Part Number：125840-01

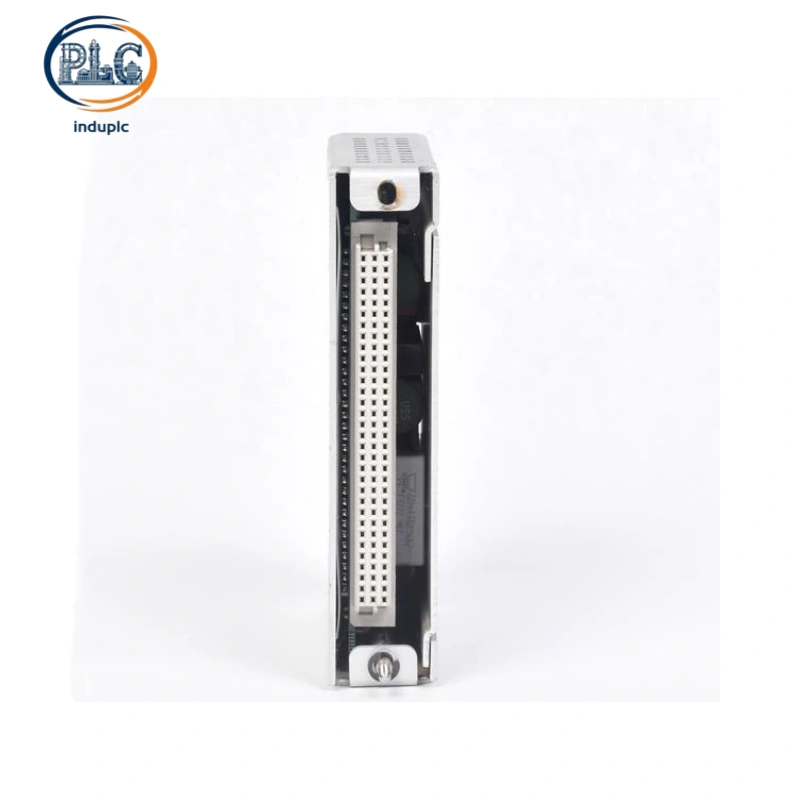

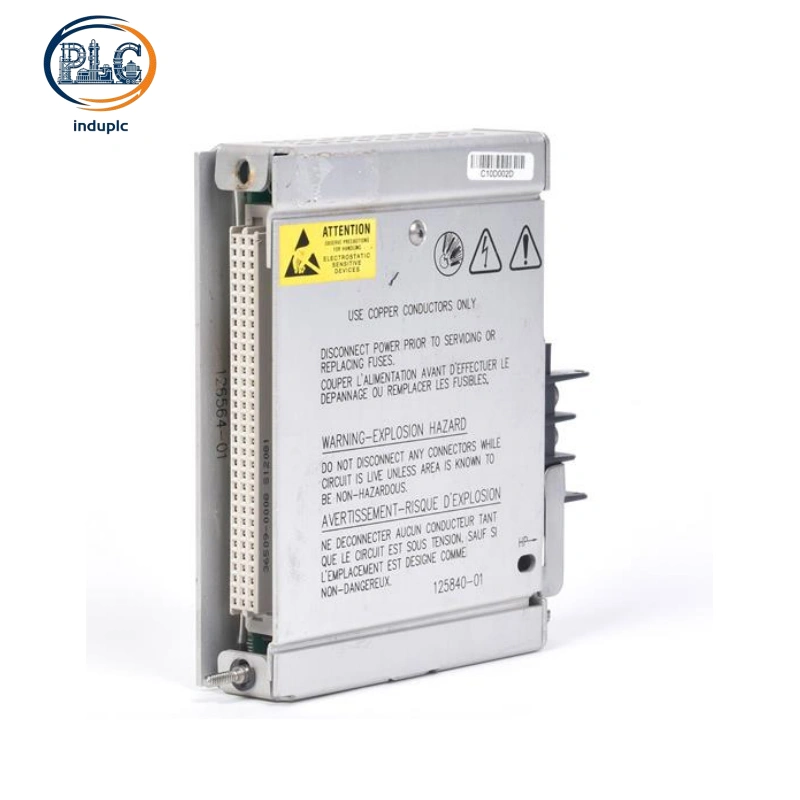

Applicable Model：3500/15 High Voltage Industrial AC Power Supply Module

Module Type：Half-height rack-mounted high-voltage AC-DC conversion power core board

Input Voltage Range：85–264 VAC ultra-wide high-voltage industrial mains input

Input Frequency：47–63Hz global universal industrial power frequency adaptation

Output Performance：Multi-group isolated low-ripple DC output, supporting full 3500 rack heavy-load stable operation

Core Protection Mechanism：High-voltage over-voltage, under-voltage, over-current, short-circuit and lightning surge secondary protection

Filter Performance：Three-stage high-grade EMI filter, effectively suppressing high-voltage mains clutter and industrial frequency interference

Deployment Mode：Supports single independent power supply and dual AC/DC mixed redundant hot backup power supply

Hold-On Time：60s power-off hold-up delay, ensuring complete transient data storage and safe system shutdown

Structure Feature：Half-height compact structure, dedicated fixed slot installation on the left side of 3500 rack

Operating Temperature：-30℃ ~ +65℃ continuous industrial working temperature range

Storage Temperature：-40℃ ~ +85℃

Environmental Humidity：0–95% non-condensing humidity tolerance

Industry Compliance：Compliant with API 670 machinery protection system mandatory standards

Product Status：Officially discontinued, supports professional stock replacement and compatible upgrade

2. Model Matching & Official Definition

Full Matching Unit：3500/15-02-00-00 High Voltage AC Power Supply Version

Core Board Positioning：125840-01 is the exclusive internal high-voltage AC conversion core board for 3500/15 high-spec power modules, responsible for high-voltage mains step-down, isolation, voltage regulation and filtering core functions

Supporting Rear Board：Matched with dedicated high-voltage AC isolation rear terminal board to form a complete power supply assembly

System Compatibility：100% compatible with all standard 3500 series chassis and functional modules, supporting mixed deployment with DC power modules without system conflict

Difference from 127610-01：125840-01 supports lower limit 85VAC ultra-low voltage startup, adapting to unstable high-voltage mains; 127610-01 is standard 175VAC startup for stable mains scenarios

3. Core Product Advantages

The 125840-01 high-voltage AC power core board is an enhanced upgraded power solution for early 3500 series systems, featuring ultra-wide voltage adaptation that ordinary AC power boards cannot match. The 85–264VAC full-range input design perfectly copes with severe industrial mains fluctuations, low-voltage startup and high-voltage surge impact, avoiding frequent system crashes and restarts caused by unstable factory power supply. Equipped with secondary surge protection and three-stage EMI filtering structure, it can effectively resist strong electromagnetic interference from high-power frequency converters and industrial equipment, providing ultra-pure power supply for high-precision vibration, displacement and keyphasor acquisition modules. The 60-second power-off hold-up function ensures that the system completely records fault transient data during sudden power failure, providing accurate data basis for equipment fault analysis. It supports flexible redundant deployment of dual AC power or AC-DC mixed power, realizing non-inductive switching and zero-downtime operation of the system. With mature high-voltage circuit design, low failure rate and strong environmental adaptability, it is the preferred spare part for maintenance of old high-voltage mains 3500 systems.

4. Industrial Application Scenarios

The 125840-01 high-voltage AC power core board is mainly applicable to industrial sites with unstable high-voltage mains power distribution and harsh power environment. In thermal power and hydropower generation plants, it is widely used in steam turbine and generator TSI monitoring racks, adapting to large-scale unit load switching and mains fluctuation scenarios to ensure continuous and stable operation of protection systems. In petrochemical, natural gas and coal chemical hazardous area projects, it supports long-term unattended operation of large compressor units and process equipment monitoring systems, meeting industrial high-voltage power supply safety standards. It is also commonly used in metallurgical heavy industry, mining equipment and old industrial park power renovation scenarios, solving the problems of low-voltage startup failure and high-voltage surge damage of ordinary power modules, and improving the overall operational stability and fault tolerance of 3500 series machinery protection systems.

5. Replacement & Maintenance Instructions

The 125840-01 has been officially discontinued by Rockwell Bently Nevada. For on-site faulty module replacement, original stock 125840-01 parts can be used for direct plug-and-play maintenance to ensure consistent system parameters. For system upgrade and long-term stable operation, official universal high-voltage AC upgraded modules are recommended to replace the old version, optimizing circuit anti-aging and surge resistance while retaining original installation dimensions and electrical parameters, with zero adaptation cost.
