1. Core Technical Specifications

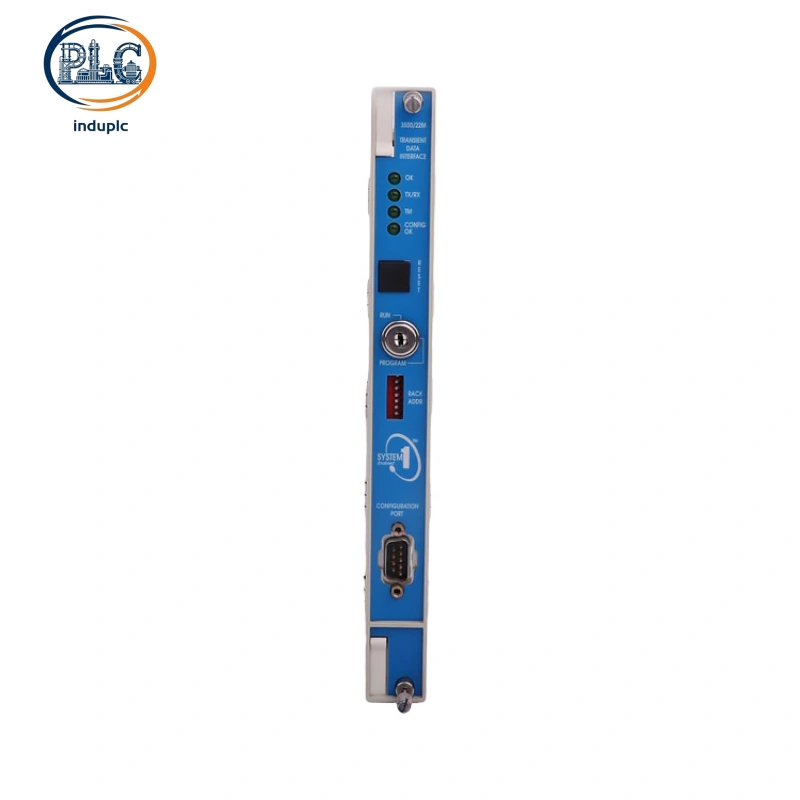

Module Type：3500/22 Transient Data Interface (TDI) Communication Module

Specific Model：3500/22-01-01-00 Standard Ethernet Data Transmission Version

System Compatibility：Full compatibility with Bently Nevada 3500 series rack systems and M-series monitor modules

Installation Position：Dedicated RIM (Rack Interface Module) slot of 3500 rack

Communication Interface：10Base-T/100Base-TX adaptive Ethernet port

Core Data Capacity：Supports steady-state static data + high-frequency transient waveform synchronous acquisition

Signal Bandwidth：Up to 20 kHz high-frequency data sampling and transmission bandwidth

Software Matching：Fully adapted to Bently Nevada System 1 machinery condition monitoring software

Data Synchronization：Supports full-rack multi-channel data synchronous transmission without frame loss

Operating Mode：Automatic real-time data polling + fault trigger transient data capture

Structure Specification：Half-height compact slot design, saving rack installation space

Operating Temperature：-20℃ ~ +70℃ industrial wide-temperature working range

Storage Temperature：-40℃ ~ +85℃

Certification：Class I Div 2, CSA, ATEX, IECEx hazardous area safety compliance

2. Official Ordering Code Definition & Exact Model Parsing

Standard Ordering Model：3500/22-AA-BB-CC

AA Code: Transient Data Interface Type

BB Code: Communication I/O Configuration

CC Code: Safety Certification & Approval Grade

Front & Rear Board Official Matching List

3. Core Product Advantages

The 3500/22-01-01-00 TDI module integrates dual functions of rack interface and high-speed transient data communication, eliminating the equipment redundancy and cost waste caused by separate deployment of traditional rack interface and communication processors. Adopting 10/100M adaptive Ethernet transmission technology, it realizes low-delay and lossless transmission of 20 kHz high-frequency transient waveforms, ensuring that subtle fault vibration signals and instantaneous mutation data are completely recorded and uploaded. It supports synchronous data collection of all monitoring modules in the rack, realizing unified timing and centralized transmission of multi-point vibration, displacement and speed data, avoiding data dislocation and analysis deviation caused by asynchronous acquisition. The half-height compact structure occupies only the dedicated RIM slot without occupying conventional monitoring channel slots, greatly optimizing rack space utilization. Compatible with System 1 professional analysis software, it supports automatic capture of transient data during equipment faults, provides complete data support for fault recurrence and root cause analysis, and significantly improves the accuracy of industrial equipment predictive maintenance. With industrial-grade anti-interference performance, it adapts to strong electromagnetic interference environments on site and maintains long-term stable data transmission quality.

4. Industrial Application Scenarios

The 3500/22-01-01-00 transient data interface module is a necessary core communication component for high-precision 3500 monitoring systems, widely used in high-value rotating equipment monitoring scenarios in power, petrochemical, metallurgical and energy industries. In thermal power plant steam turbine TSI systems, it collects real-time steady-state operating data and transient vibration waveform data of turbine shafts and casings, providing core data support for unit thermal state analysis and abnormal fault diagnosis. In petrochemical centrifugal compressors, gas pressurization units and refining process equipment, the module captures instantaneous mutation data during equipment load changes and abnormal vibration, helping maintenance personnel quickly locate hidden faults such as rotor imbalance and shaft misalignment. It is also widely deployed in large fan clusters, turbo-generator sets and industrial high-speed pump monitoring systems, serving as a key data transmission bridge between on-site hardware and upper-level management software, realizing full-cycle digital monitoring and intelligent predictive maintenance of mechanical equipment.
