1. Core Technical Specifications

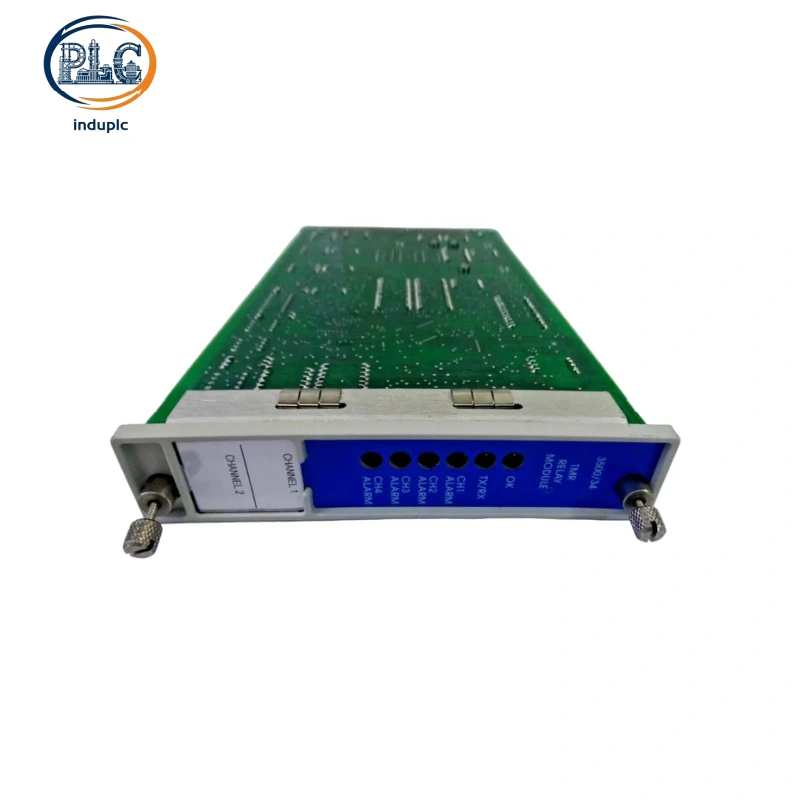

Module Type：3500/34 TMR Triple Modular Redundant Safety Relay Module

System Compatibility：Bently Nevada 3500 series machinery protection rack system

Core Architecture：Triple Modular Redundant (TMR) fault-tolerant circuit design

Output Channel：Integrated high-reliability safety relay output loop

Safety Level：Compliant with industrial SIL 2 safety integrity requirements

Working Mechanism：Three-circuit voting judgment, fault self-diagnosis and isolation

Contact Characteristic：High-load industrial safety contact, anti-arc and anti-surge performance

Response Speed：Fast protection response, suitable for emergency shutdown linkage scenarios

Self-Diagnosis Function：Real-time monitoring of internal circuit health and contact status

Structure Specification：Full-height front module + full-height rear I/O module dual-slot structure

Operating Temperature：-30℃ ~ +65℃ industrial working range

Storage Temperature：-40℃ ~ +85℃

Certification：Class I Div 2, CSA, ATEX, IECEx full hazardous area compliance

2. Official Ordering Selection & Front/Rear Board Matching

Standard Ordering Model：3500/34-AA-BB-CC

AA Code: Safety Logic Mode

BB Code: Contact Load Grade

CC Code: Safety Certification Grade

Front & Rear Board Official Matching List

3. Core Product Advantages

The 3500/34 stands apart from ordinary 3500 series relay modules with its industry-leading TMR triple redundant fault-tolerant design, completely solving the single-point failure defect of traditional single-circuit relay output systems. Through built-in three-channel independent circuit voting mechanism, the module can automatically identify and isolate faulty single-circuit signals, ensuring the safety loop still operates normally even if one internal circuit fails, effectively avoiding dangerous situations such as failure to trip or false trip. Equipped with full real-time self-diagnosis function, it continuously monitors internal circuit status, contact aging and signal abnormalities, and uploads fault alarm information in time for maintenance troubleshooting. The industrial-grade arc-suppression contact design resists current impact and contact ablation during long-term frequent switching, greatly extending service life and improving system operational stability. Fully compliant with mainstream industrial safety certification standards, it can directly meet SIL-level safety system construction requirements, eliminating the need for additional safety redundant hardware and effectively reducing overall system engineering costs and rack occupancy space.

4. Industrial Application Scenarios

Focusing on high-standard safety protection scenarios, the 3500/34 TMR relay module is mainly deployed in core safety loops of high-risk industrial production lines that require zero single-point failure. In thermal power generation industries, it undertakes turbine unit ESD emergency shutdown and main equipment fault interlock output tasks, ensuring rapid and reliable equipment shutdown under abnormal operating conditions. In petrochemical and natural gas fields, it is widely used in compressor unit safety protection systems and flammable and explosive process equipment linkage loops, providing fault-tolerant safety guarantee for high-risk production links. It is also the preferred safety output module for large-scale industrial safety instrument systems (SIS), helping enterprises pass industrial safety level assessment and standardized acceptance, and effectively preventing major safety accidents and production shutdown losses caused by safety loop failure.
