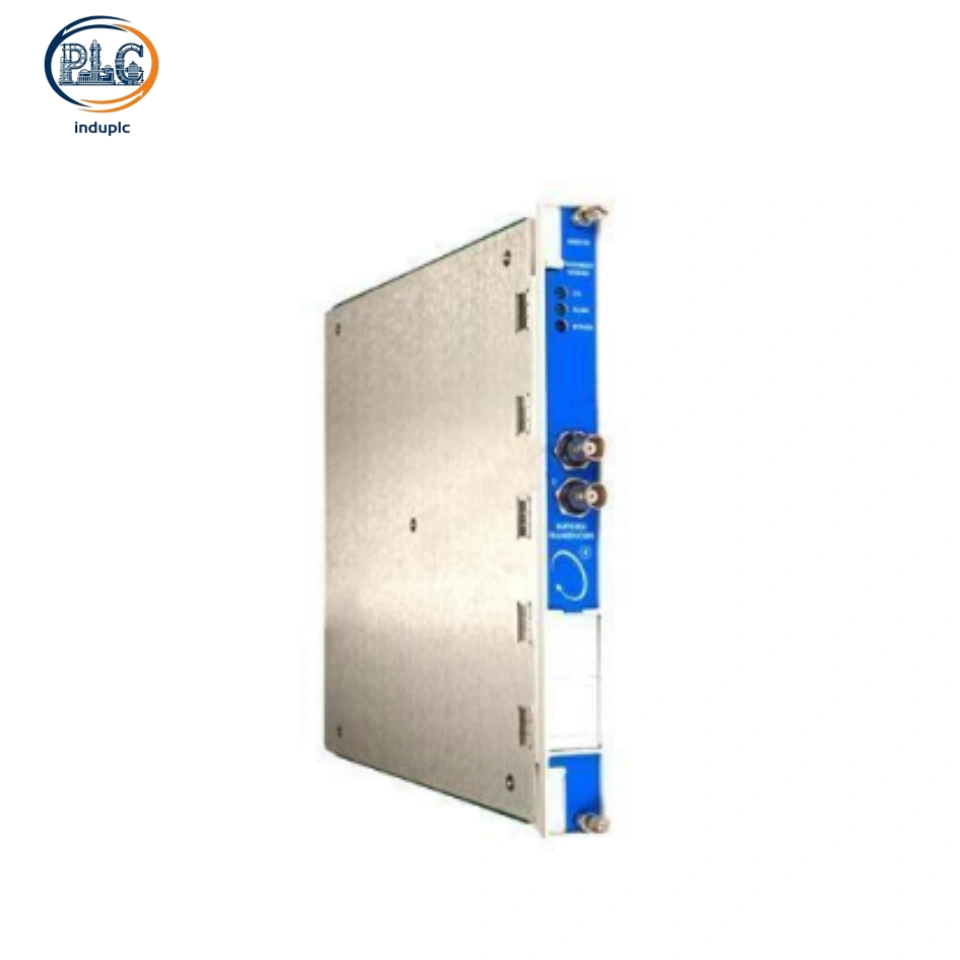

The Bently Nevada 3500/46M is a high-density four-channel vibration monitoring module designed for comprehensive dynamic condition tracking of rotating machinery within the 3500 protection rack platform. Engineered to process both velocity and acceleration vibration inputs, this multi-functional hardware eliminates the need for separate dedicated vibration acquisition cards, simplifying system cabinet layout for large-scale equipment groups. It specializes in capturing high-frequency mechanical vibration fluctuations generated by turbine rotors, compressor shafts, blower assemblies and other high-speed rotating equipment. By converting raw vibration sensor data into actionable trending parameters, the 3500/46M enables maintenance teams to identify early-stage mechanical faults such as rotor imbalance, bearing wear, shaft misalignment and structural loosening before catastrophic equipment failure occurs.

1. Core Technical Specifications

Module Type：3500/46M 4-Channel Multi-Function Vibration Monitor Module

System Compatibility：Bently Nevada 3500 series rack system

Channel Configuration：4 independent synchronous vibration monitoring channels

Supported Sensors：Velocity transducers, industrial accelerometers, standard vibration probes

Monitoring Parameters：Vibration velocity, acceleration, peak value, real-time trend data

Frequency Response Range：Wide industrial vibration frequency band for rotating machinery

Data Resolution：High-resolution dynamic sampling for subtle vibration anomaly capture

Alarm Logic：Configurable alert, danger trip and fault diagnosis threshold settings

Structure Specification：Full-height front module + full-height rear I/O module dual-slot structure

Operating Temperature：-30℃ ~ +65℃ industrial working range

Storage Temperature：-40℃ ~ +85℃

Certification：Class I Div 2, CSA, ATEX, IECEx full hazardous area compliance

2. Official Ordering Selection & Front/Rear Board Matching

Standard Ordering Model：3500/46M-AA-BB-CC

AA Code: Sensor Input Mode

BB Code: Sampling & Filter Grade

CC Code: Safety Certification Grade

Front & Rear Board Official Matching List

3. Core Product Advantages

The 3500/46M stands out in the 3500 vibration module lineup due to its dual-parameter compatible acquisition design, delivering versatile monitoring capabilities in a single hardware unit. Instead of deploying separate modules for low-frequency and high-frequency vibration detection, this integrated card supports mainstream vibration sensor types, greatly reducing rack slot occupancy and overall system procurement costs. Each of the four channels features independent signal shielding and sampling circuits, completely eliminating inter-channel signal crosstalk even during full-load synchronous acquisition. The module adopts adaptive noise reduction filtering technology, which automatically filters out environmental vibration interference while retaining valid fault characteristic signals, ensuring accurate fault judgment in complex industrial sites. Its flexible threshold grouping function allows independent parameter configuration for different equipment nodes, adapting to diverse vibration protection standards for turbines, compressors and auxiliary machinery. Designed for long-term unattended operation, the hardware features stable component performance and low drift, minimizing routine calibration frequency and reducing field maintenance workload.

4. Industrial Application Scenarios

As a universal high-density vibration monitoring core module, the 3500/46M is widely deployed in full-condition mechanical protection systems across power, petrochemical, metallurgical and energy industries. In thermal power plants, it monitors shaft and casing vibration of steam turbine auxiliary units, feed water pumps and large cooling fans to ensure stable unit operation. For oil and gas industries, the module tracks real-time vibration status of natural gas compressors and pipeline pressurization equipment, preventing mechanical fatigue failure caused by long-term vibration. Metallurgical high-speed rotating transmission equipment and industrial large blower clusters also rely on this module for multi-point synchronous vibration trending analysis. It is especially suitable for medium and large monitoring racks that require centralized multi-equipment vibration management, realizing efficient and unified mechanical condition oversight.
