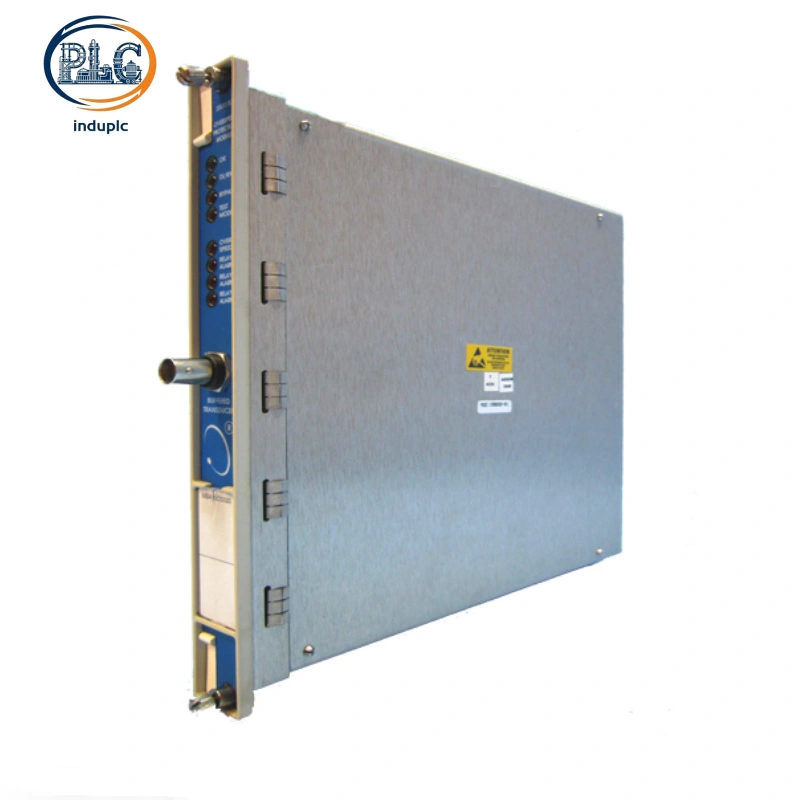

The Bently Nevada 3500/53 serves as the primary relay output and safety interlock driver for the entire 3500 machinery protection platform. While monitoring acquisition modules collect vibration, temperature and displacement data, this module acts as the system’s physical execution layer, converting digital alarm states and protection logic into hard-wired dry-contact switch signals. Designed for mission-critical industrial safety systems, it bridges the gap between monitoring rack logic and external PLCs, trip circuits, alarm annunciators and emergency shutdown systems. Its isolated channel architecture prevents cross-circuit interference and external surge damage, delivering dependable safety action for turbines, compressors and other high-value rotating assets.

1. Core Technical Specifications

Module Type：3500/53 4-Channel Programmable Relay Output Module

System Compatibility：Bently Nevada 3500 series rack system

Channel Configuration：4 independent isolated relay output channels

Output Type：Industrial isolated dry contact relay signal output

Contact Load Capacity：Standard industrial relay contact load specification

Programmable Logic：Custom alarm output, fault interlock, delay trigger and status linkage logic

Response Performance：Fast relay action response for protection trip interlock

Structure Specification：Full-height front module + full-height rear I/O module dual-slot structure

Operating Temperature：-30℃ ~ +65℃ industrial working range

Storage Temperature：-40℃ ~ +85℃

Certification：Class I Div 2, CSA, ATEX, IECEx full hazardous area compliance

2. Official Ordering Selection & Front/Rear Board Matching

Standard Ordering Model：3500/53-AA-BB-CC

AA Code: Contact Output Specification

BB Code: Logic Function Version

CC Code: Safety Certification Grade

Front & Rear Board Official Matching List

3. Core Product Advantages

The 3500/53 differentiates itself from lower-channel relay modules through fully isolated four-channel circuitry, which eliminates common-mode noise and cross-talk between independent safety loops. Each relay channel operates independently, so a fault or short circuit on one loop will not affect other alarm or trip outputs—a critical feature for high-reliability safety instrumentation systems. The module supports flexible programmable delay logic and multi-parameter gating, allowing engineers to build customized protection sequences that avoid false trips caused by transient signal spikes. Built-in electrical isolation protects the sensitive 3500 rack backend from external field surge voltages and inductive load kickback. With industrial-grade contact durability and wide-temperature tolerance, it maintains consistent switching performance over years of continuous operation, minimizing unplanned maintenance and improving overall system safety integrity level.

4. Industrial Application Scenarios

Field integrators deploy the 3500/53 in complex multi-loop safety interlock systems that require multiple independent alarm and trip outputs. It is widely used in thermal power generation turbine protection racks to execute shaft vibration trip, thrust position fault alarm and casing abnormal condition interlock signals. In oil and gas compression stations, the module drives ESD emergency shutdown loops, local alarm beacons and remote SCADA status feedback. Process industries also utilize this unit for pump and fan cluster protection, enabling graded fault response including early warning prompts, auxiliary equipment linkage and main unit shutdown protection. It is the preferred relay module for medium and large-scale 3500 protection systems requiring multi-channel safety logic expansion.
