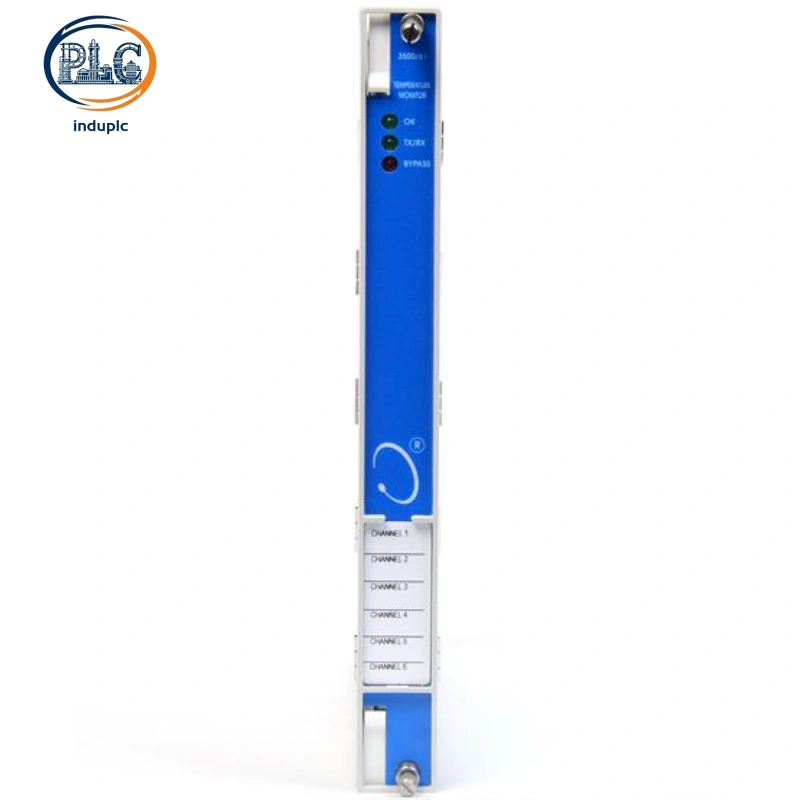

The Bently Nevada 3500/61 serves as a dedicated single-point precision temperature monitoring unit within the 3500 machinery protection platform. Unlike multi-channel temperature modules designed for bulk auxiliary monitoring, this hardware is engineered specifically for critical single-point thermal oversight on high-value rotating equipment. It pairs with industry-standard RTD sensors to capture ultra-fine temperature changes on turbine thrust bearings, compressor core housings and other mission-critical components. Designed for process industries that demand zero data drift and high-accuracy condition tracking, the module delivers reliable thermal protection that prevents gradual overheating failures often missed by standard monitoring hardware.

1. Core Technical Specifications

Module Type：3500/61 1-Channel High-Precision Temperature Monitor Module

System Compatibility：Bently Nevada 3500 series rack system

Channel Configuration：1 exclusive high-precision independent monitoring channel

Supported Sensors：High-precision industrial RTD temperature sensors

Measurement Range：-80℃ ~ +550℃ core industrial precision temperature range

Measurement Accuracy：±0.15℃ ultra-high single-point measurement precision

Alarm Mode：Independent high/low temperature alarm and sensor fault alarm output

Structure Specification：Full-height front module + full-height rear I/O module dual-slot structure

Operating Temperature：-30℃ ~ +65℃ industrial working range

Storage Temperature：-40℃ ~ +85℃

Certification：Class I Div 2, CSA, ATEX, IECEx full hazardous area compliance

2. Official Ordering Selection & Front/Rear Board Matching

Standard Ordering Model：3500/61-AA-BB-CC

AA Code: Temperature Precision Grade

BB Code: Signal Anti-Interference Grade

CC Code: Safety Certification Grade

Front & Rear Board Official Matching List

3. Core Product Advantages

The 3500/61 stands out in the 3500 temperature module lineup thanks to its fully isolated single-channel architecture, a design choice that eliminates cross-channel noise entirely. Most multi-point temperature modules face minor signal coupling issues in high-EMI plant environments, but this dedicated single-channel hardware maintains consistent readouts even near large motors and high-power rotating equipment. Its refined micro-calibration system captures subtle temperature shifts that precede bearing wear and lubrication degradation, allowing maintenance teams to schedule repairs before unplanned downtime occurs. The module also integrates independent sensor fault detection, instantly alerting operators to broken wiring or failed probes instead of outputting incorrect data. With industrial-grade component selection and full hazardous area approvals, it delivers long-term stability with minimal routine calibration requirements.

4. Industrial Application Scenarios

Field engineers primarily deploy the 3500/61 for high-stakes single-point thermal monitoring where data accuracy cannot be compromised. It is widely installed on steam turbine main thrust bearings, where even minor temperature spikes indicate internal mechanical wear. Natural gas compressor core bearing housings also rely on this module for continuous thermal trending. Additionally, the unit serves precision temperature supervision on critical process machinery in chemical plants and power generation facilities, acting as a dedicated safety watchdog for the most vital equipment nodes within full-scale 3500 protection rack systems.
