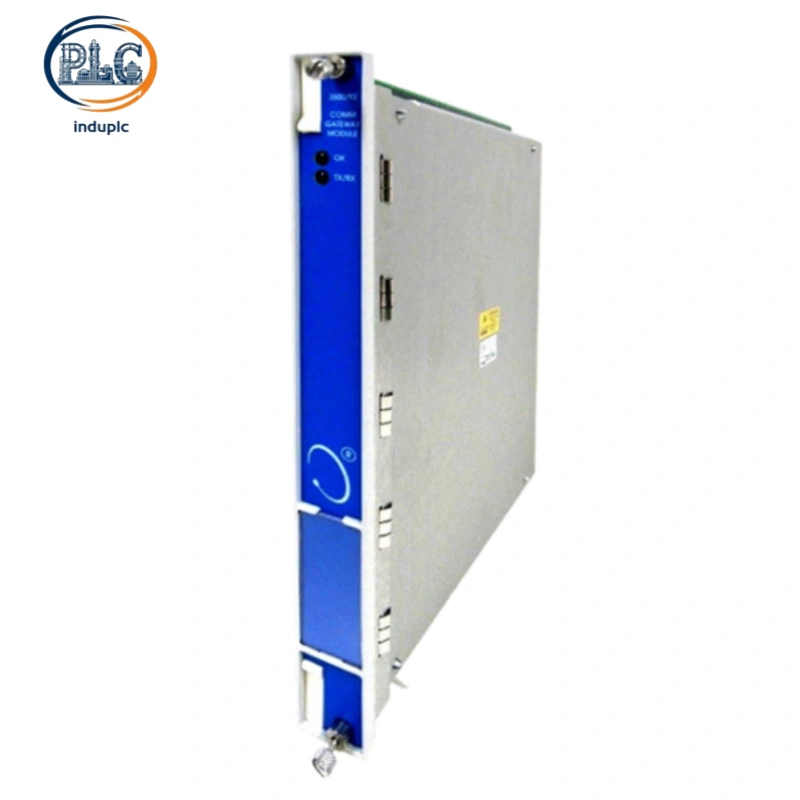

Bently Nevada 3500/92 is a high-performance dedicated communication gateway module for the Bently Nevada 3500 machinery protection and condition monitoring rack system. Designed for industrial rack data transmission and system interconnection, the 3500/92 converts internal rack monitoring data into standard Ethernet and serial protocol signals for upper-level DCS, PLC and SCADA system integration. The module delivers stable, high-speed data exchange for turbine, compressor and rotating machinery monitoring racks, serving as the core data interface for industrial machinery condition monitoring networking.

1. Core Technical Specifications

Module Type：3500/92 System Communication Gateway Module

System Compatibility：Bently Nevada 3500 series rack system

Ethernet Interface：RJ45 port, 10BASE-T Ethernet, IEEE 802.3 compliant

Serial Interface：RS232 / RS422 / RS485 multi-mode serial communication

Supported Protocols：Modbus/TCP, TCP/IP, Custom configurable Modbus register

Typical Power Consumption：5.0W (Ethernet version); 5.6W (Modbus serial version)

Data Transmission Mode：Real-time rack data upload, event log and alarm data output

Diagnostic Indicators：OK status LED, TX/RX communication LED

Structure Specification：Full-height front gateway module + full-height rear I/O module dual-slot structure

Operating Temperature：-30℃ ~ +65℃ industrial wide temperature range

Storage Temperature：-40℃ ~ +85℃

Environmental Humidity：5%–95% non-condensing humidity

Certification：Class I Div 2, CSA, ATEX, IECEx hazardous area compliance

2. Official Ordering Selection & Front/Rear Board Matching

Standard Ordering Model：3500/92-AA-BB-CC

AA Code: Communication Interface Type

BB Code: Function & Firmware Version

CC Code: Safety Certification Grade

Front & Rear Board Official Matching List

3. Core Product Advantages

The Bently Nevada 3500/92 module serves as the exclusive industrial-grade communication gateway for full-series 3500 machinery protection racks. Multiple mainstream industrial communication interfaces and flexible protocol configurations support seamless data docking between 3500 monitoring systems and external automation platforms. Upgraded configurable Modbus register utility improves data customization flexibility, allowing field engineers to adjust data upload parameters according to on-site project requirements. Low power consumption and wide temperature resistance ensure stable data transmission in high-temperature, humid and high-electromagnetic-interference industrial workshops. Complete LED diagnosis indicators deliver real-time working status and communication fault feedback to simplify daily operation troubleshooting and system maintenance.

4. Industrial Application Scenarios

The Bently Nevada 3500/92 communication gateway module supports data networking and centralized monitoring for various heavy industrial machinery protection systems. Typical deployment scenarios include thermal power steam turbine monitoring racks, petrochemical compressor condition monitoring systems, metallurgical large fan and pump vibration protection cabinets, and energy industry rotating machinery safety monitoring platforms. The 3500/92 module realizes unified data transmission and remote centralized management for distributed 3500 monitoring equipment.
