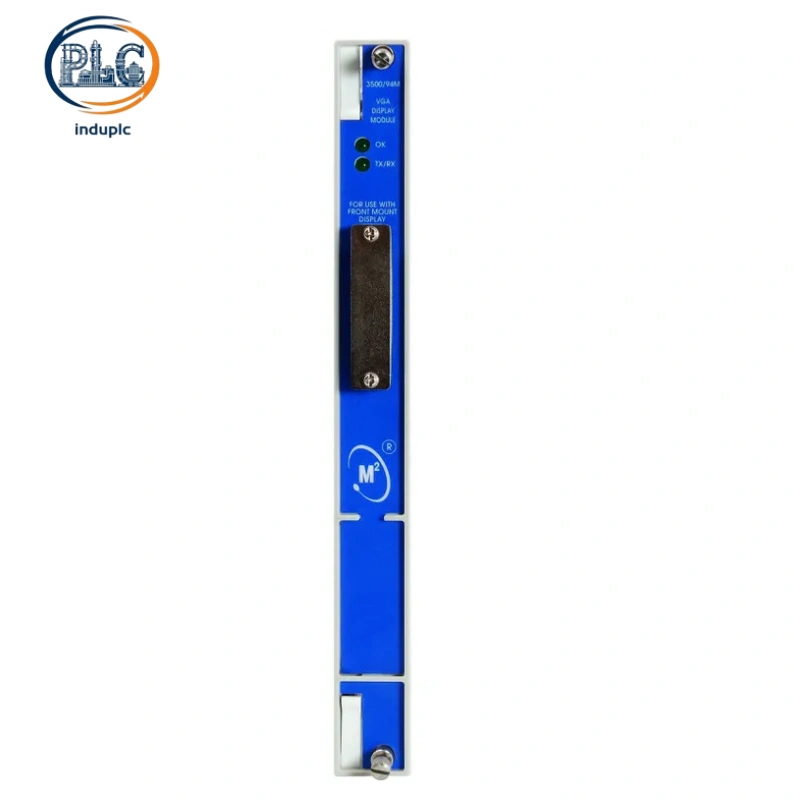

Bently Nevada 3500/94 | 3500 System VGA Touch Screen Display Module
Product Description
Bently Nevada 3500/94 (3500/94M) is a dedicated full-height VGA touch screen display module for the 3500 machinery protection and condition monitoring system. Serving as the local human-machine interface for 3500 rack systems, it supports real-time data viewing, alarm monitoring, system event checking and custom screen configuration. Designed for turbine, compressor and rotating machinery monitoring racks, it is the official standard display solution for on-site local operation and system status visualization. This industrial touch screen module features 10/15-inch display options, multi-rack monitoring capability and hazardous area certification, delivering stable local visualization for industrial machinery protection systems.
1. Core Technical Specifications
Module Type：3500/94M Industrial VGA Touch Screen Display Module
System Compatibility：Bently Nevada 3500 series rack system
Display Size Option：10-inch / 15-inch industrial touch screen
Max Display Distance：6.1m (20ft) standard; 305m (1000ft) with KVM extender
Custom Screen Function：Up to 9 custom user-defined display pages
Multi-Rack Management：Monitor up to 4 sets of 3500 racks via router box
Power Consumption：Max 4.6W operating power
Operating Temperature：-20℃ ~ +65℃
Structure Specification：Full-height front module + full-height rear I/O module (dual-slot)
Certification：Class I Div 2, CSA, ATEX, IECEx
2. Official Ordering Selection & Front/Rear Board Matching
Standard Ordering Model：3500/94M-AA-BB-CC
AA Code: Display Size & Installation Method
|
AA Code |
Configuration Description |
|
00 |
Router box only, no display, multi-rack centralized monitoring |
|
01 |
10-inch display, face mount |
|
02 |
10-inch display, 19-inch standard rack mount |
|
03 |
10-inch display, panel mount |
|
04 |
10-inch display, independent separate mounting |
|
05 |
15-inch display, 19-inch standard rack mount |
|
06 |
15-inch display, panel mount |
|
07 |
Router box configuration without local display |
BB Code: KVM Extender & Cable Length
|
BB Code |
Configuration Description |
|
00 |
Standard version, no KVM extender |
|
01 |
KVM extender with 250ft communication cable |
|
02 |
KVM extender with 500ft communication cable |
|
03 |
KVM extender with 1000ft communication cable |
|
12 |
20ft dedicated cable for multi-rack router box |
CC Code: Safety Certification Standard
|
CC Code |
Configuration Description |
|
00 |
General industrial version, no explosion-proof certification |
|
01 |
CSA/NRTL/C Class I Div 2 hazardous area certification |
|
02 |
Full global certification: CSA + ATEX + IECEx |
Front & Rear Board Official Matching List
|
Hardware Description |
Part Number |
Matching Instruction |
|
Front Display Main Board |
184826-01 |
Universal core board for all 3500/94M configurations, must match rear I/O board |
|
Standard Rear I/O Board |
190214-01 |
For rack mount and panel mount display models, general signal transmission |
|
Special Rear I/O Board |
190214-02 |
Power-only I/O board, dedicated for face-mount display installation |
|
Multi-Rack Router Box |
149356-01 |
Used with router box code for 4 sets of 3500 racks synchronous monitoring |
3. Core Product Advantages
The Bently Nevada 3500/94M is the official dedicated local HMI for the entire 3500 TSI machinery protection system. It achieves full real-time data synchronization with all rack modules without data delay or offset. Operators can locally view real-time vibration, displacement, speed and temperature data, check historical alarm records, and query system fault events. The module supports custom grouping and personalized screen layout, adapting to different unit monitoring requirements. With long-distance signal extension and multi-rack centralized monitoring functions, it effectively solves the problems of scattered equipment racks and inconvenient on-site inspection. The industrial-grade touch structure resists high temperature, dust and strong electromagnetic interference, ensuring long-term stable operation in thermal power, petrochemical and heavy industrial environments.
4. Industrial Application Scenarios
Bently Nevada 3500/94 display modules are widely used in thermal power plants, petrochemical industries, metallurgy and pharmaceutical factories. Typical applications include steam turbine TSI monitoring racks, centrifugal compressor condition monitoring systems, large fan and pump vibration protection cabinets, and multi-unit centralized machinery condition monitoring platforms.
