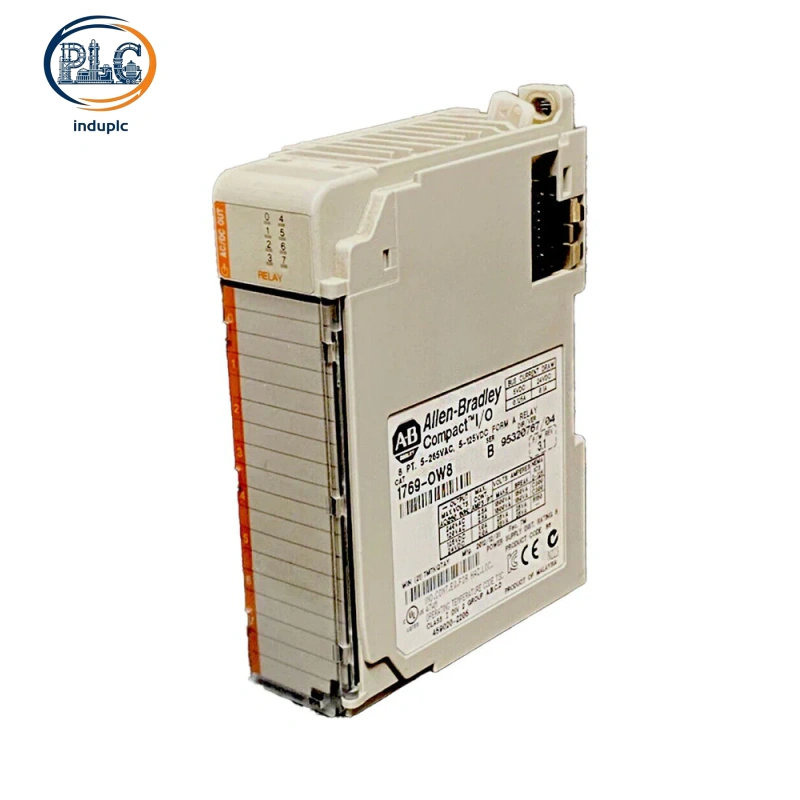

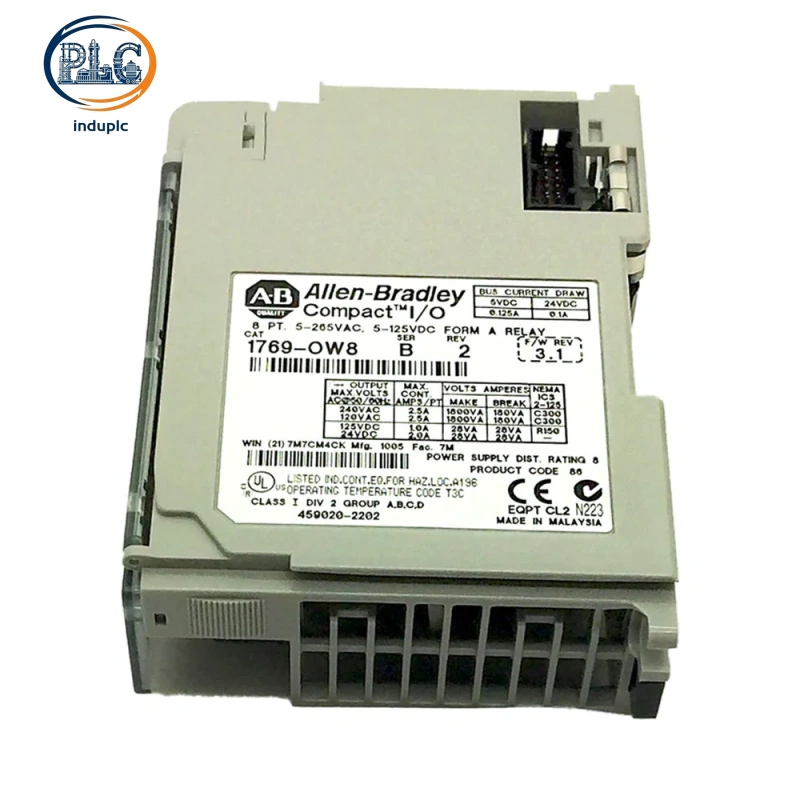

Allen-Bradley 1769-OW8 is a universal 8-channel mechanical relay output module designed for 1769 CompactLogix automation systems. Adopting industry-standard SPDT single-pole double-throw relay structure, it supports both AC and DC high-current load switching, completely different from solid-state-only 1769-OB16/OB32 DC and 1769-OA16 AC dedicated modules. With contact dry-switch characteristics and strong overload tolerance, it serves as the optimal solution for mixed-signal load control and on-site high-power actuator switching scenarios.

Core Technical Parameter Specifications

Channel Configuration：8 independent SPDT relay output channels

Output Type：Mechanical relay dry contact switching (universal AC/DC)

Load Voltage Range：Max 250VAC / 125VDC wide universal voltage

Per-Point Rated Current：2.5A maximum continuous resistive load current

Signal Response Speed：Max 10ms turn-on / 10ms turn-off delay

Off-State Leakage：0mA zero leakage, no residual voltage interference

Insulation Grade：1836VAC (1s) / 2596VDC reinforced isolation rating

Total Power Dissipation：2.83W full-load stable power consumption

Backplane Power Draw：120mA @ 5VDC low bus power occupation

Mechanical Lifespan：Long-cycle relay switching durability

Operating Temperature：0℃ ~ +60℃ continuous industrial operation

Certifications：UL, CSA, CE global industrial safety compliance

SPDT Relay Dry-Contact & Universal Load Performance

The core advantage of 1769-OW8 is its universal mechanical relay dry-contact design. Unlike solid-state modules limited to single AC or DC signal types, each OW8 channel features independent SPDT contacts, supporting free switching of AC and DC loads. Zero off-state leakage completely eliminates residual current interference, ensuring thorough circuit cut-off and higher operational safety for on-site equipment.

With 2.5A single-point large current capacity, it drives high-power loads that ordinary solid-state modules cannot carry, including high-current solenoid valves, contactor coils, indicator light groups and auxiliary power loop switches. Mechanical relay contact structure delivers stronger impact resistance and overload tolerance, adapting to unstable power grid and complex load environments. Each channel comes with independent status indicators for real-time working state feedback, simplifying on-site debugging and fault judgment.

Flexible Compatibility & On-Site Retrofit Advantages

AllenBradley 1769-OW8 features standard 1769 backplane protocol and single-slot compact layout, fully compatible with all CompactLogix L2x/L3x series controllers and 1769-series I/O racks. It solves the on-site pain point of mixed AC/DC load wiring, avoiding the need to deploy multiple dedicated AC and DC solid-state modules, effectively simplifying cabinet layout and reducing overall system costs.

It is widely used for legacy automation system upgrades and replacement. Plug-and-play installation requires no program modification or cabinet structural adjustment, perfectly replacing aging relay output modules. Matched with EtherNet/IP adapters, it realizes stable remote high-current loop switching control for distributed automation architectures, suitable for incremental renovation of old factories and multi-type load integrated control projects.

Industrial Application Scenarios

AllenBradley 1769-OW8 is extensively deployed in scenarios requiring mixed AC/DC switching and high-current load control, including packaging machine auxiliary circuit control, production line contactor switching, environmental protection equipment power loop control, industrial lighting system adjustment and mechanical equipment safety auxiliary switching.

North American mechanical OEMs adopt OW8 for universal mixed-load standardized design to reduce module model types. Latin American manufacturing factories deploy relay modules for high-current actuator stable switching and anti-interference operation. European industrial maintenance teams rely on its zero-leakage dry-contact performance to improve equipment safety and reduce circuit failure rates.
