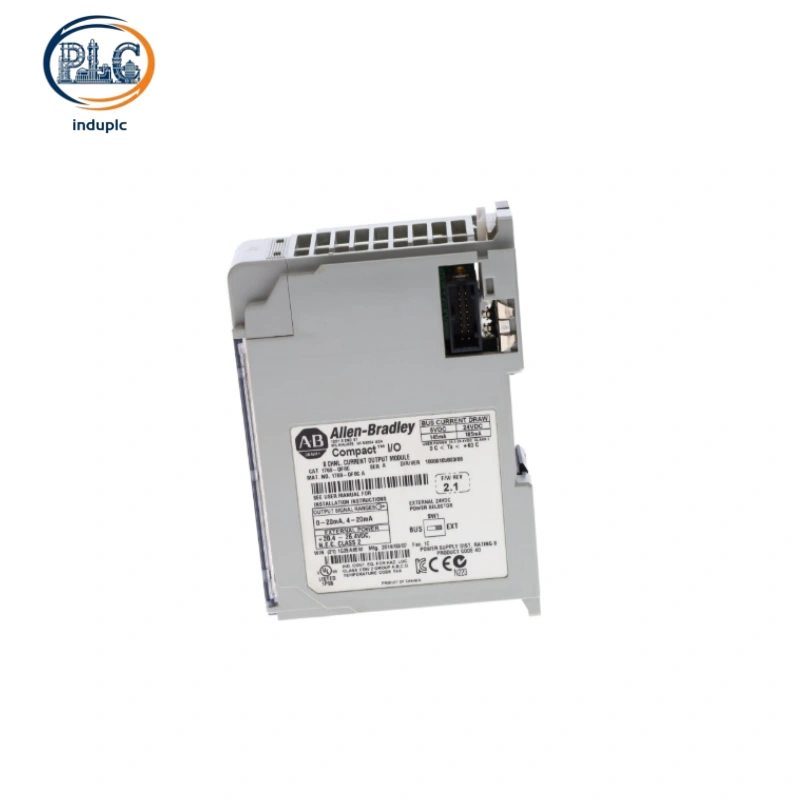

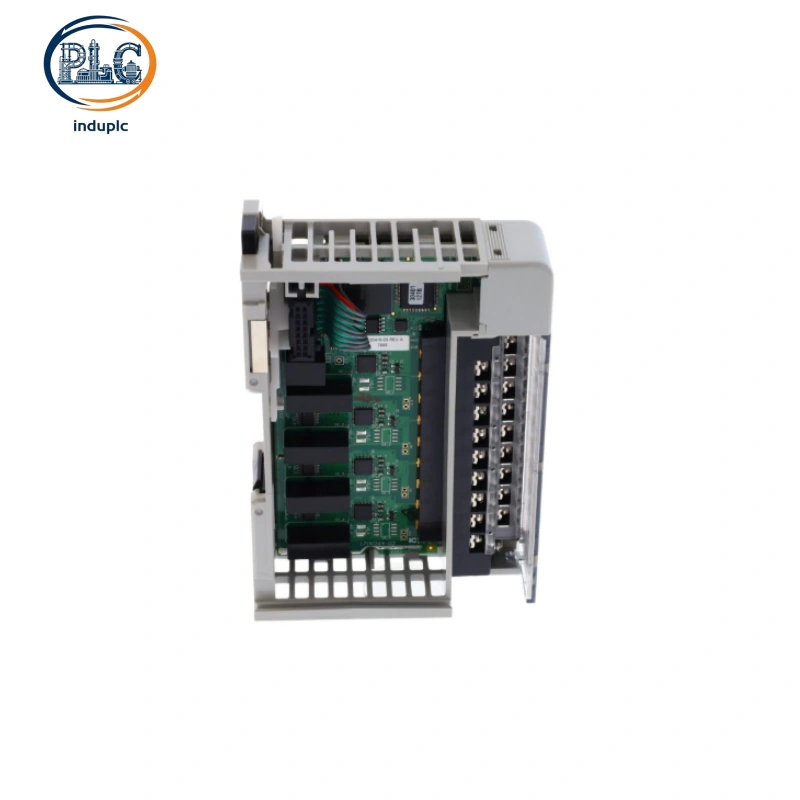

Allen-Bradley 1769-OF8C is a high-end 8-channel fully isolated analog output module for 1769 CompactLogix systems. Upgraded from standard group-isolated 1769-OF8, it adopts exclusive per-channel full isolation design, combining 8-channel high-density layout with superior anti-crosstalk performance. It is dedicated to high-noise industrial environments and multi-point high-precision process control scenarios that ordinary analog modules cannot stabilize.

Core Technical Parameter Specifications

Channel Configuration：8-channel high-density fully isolated analog output

Core Feature：Per-channel complete electrical isolation (C-version core upgrade)

Resolution Performance：16-bit DAC conversion (15.5-bit effective precision)

Output Mode：Software programmable voltage / current dual signal output

Current Output Ranges：0–20mA, 4–20mA standard industrial loop signals

Voltage Output Ranges：0–10V, ±10V, 0–5V, 1–5V configurable ranges

Full-Scale Accuracy：±0.3% voltage error / ±0.4% current error

Stability Index：±0.05% ultra-low nonlinearity and repeatability error

Response Speed：Fast millisecond-level analog dynamic response

Isolation Grade：500VAC per-channel reinforced isolation (no group sharing)

Protection Design：Built-in overvoltage, short-circuit and surge protection

External Power：20.4–26.4VDC industrial regulated power supply

Operating Temperature：0℃ ~ +60℃ continuous industrial operation

Certifications：UL, CSA, CE, RoHS global industrial safety compliance

Full Channel Isolation Upgrade & Extreme Anti-Interference Performance

The biggest upgrade of 1769-OF8C compared with regular 1769-OF8 is the full per-channel isolation architecture. Standard OF8 uses group isolation, which is prone to signal crosstalk, drift and jitter when multiple analog channels work simultaneously in high-noise workshops. In contrast, every channel of 1769-OF8C is equipped with independent isolation circuits, completely cutting off mutual interference between channels.

This high-grade isolation design effectively resists electromagnetic interference from inverters, high-power motors and frequency conversion equipment, maintaining consistent high-precision output in complex field environments. Each channel supports independent range switching via Studio 5000, compatible with proportional valves, transmitters, flow regulators and precision analog instruments. Built-in multi-protection structure avoids module damage caused by wiring faults, ensuring long-term stable continuous operation of multi-point analog systems.

High-Density Integration & High-Standard Retrofit Compatibility

AllenBradley 1769-OF8C integrates 8 fully isolated analog channels in a single slot, achieving both high cabinet density and high signal stability. It solves the industry pain point that high-density analog modules cannot take into account anti-interference performance, perfectly balancing equipment integration and control accuracy.

Fully compatible with all 1769 Compact I/O racks and CompactLogix L2x/L3x series controllers, it features identical installation size and bus protocol with standard OF8 modules, supporting one-click plug-and-play upgrade. It is the optimal replacement for group-isolated analog modules in high-precision renovation projects, eliminating on-site signal instability problems. Cooperating with EtherNet/IP adapters, it builds stable high-density isolated analog regulation for distributed process control systems.

Industrial Application Scenarios

AllenBradley 1769-OF8C is widely used in high-noise, high-precision and multi-point process automation scenarios, including chemical production lines, pharmaceutical precision control systems, sewage treatment multi-station regulation, food and beverage batch processing and environmental monitoring equipment.

North American high-end process OEMs adopt 1769-OF8C for anti-interference high-density analog design. Latin American chemical and environmental protection factories deploy fully isolated modules to solve long-term signal drift and crosstalk problems. European intelligent manufacturing projects rely on its full isolation performance to improve process parameter stability and finished product yield.
