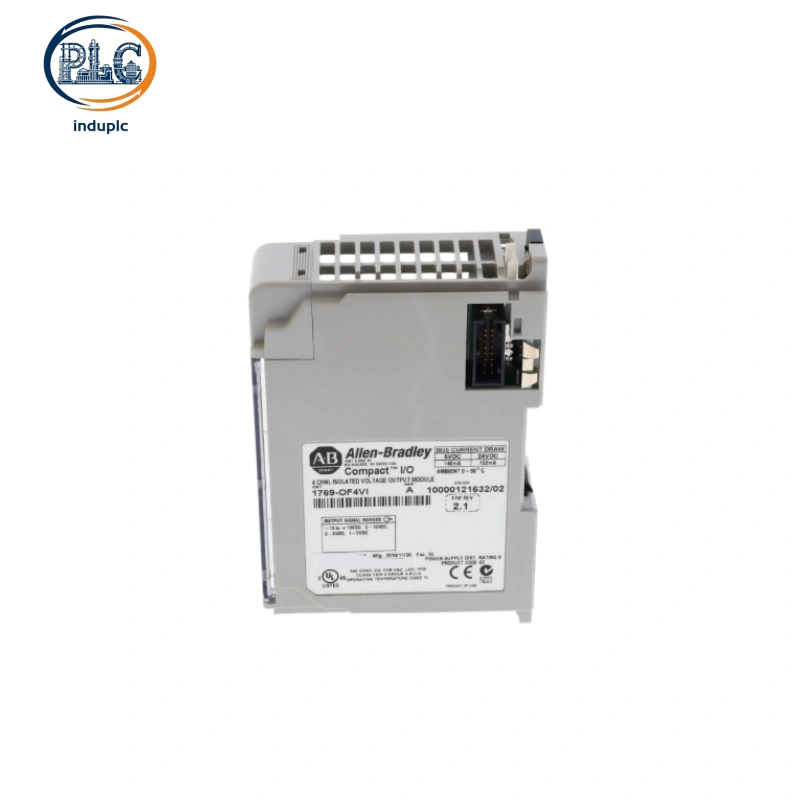

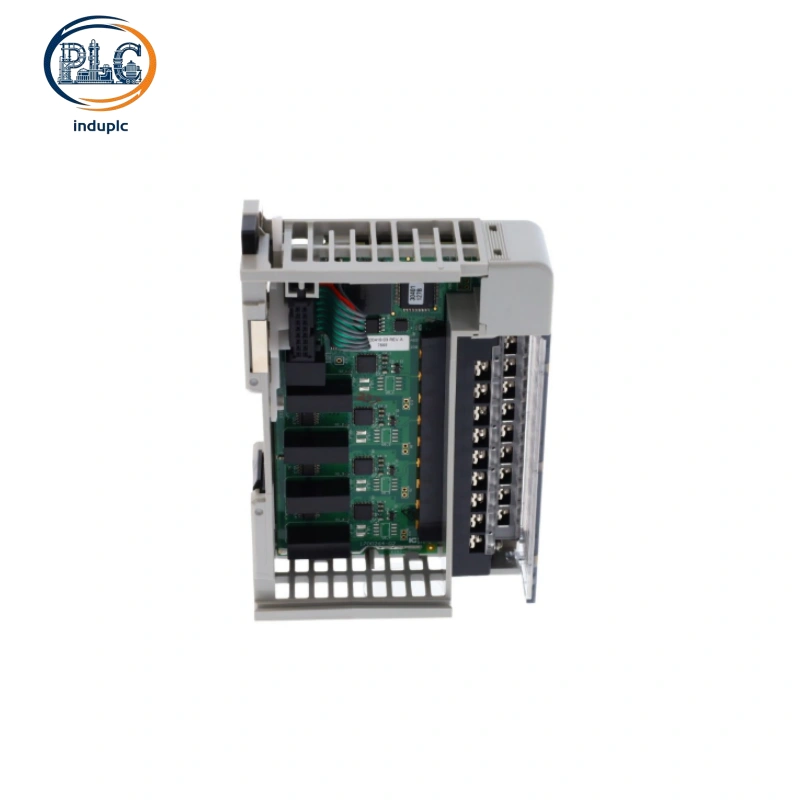

Allen-Bradley 1769-OF4VI is a high-performance dedicated analog output module for 1769 CompactLogix automation platforms. It integrates two core upgrades: voltage-only dedicated signal output and independent per-channel full galvanic isolation, differentiating it from universal OF4, group-isolated OF4CI and non-isolated OF8V modules. Optimized for high-noise process environments with ground loop risks, it delivers drift-free pure voltage regulation without redundant current circuits, balancing anti-interference performance and cost efficiency for 4-point voltage control projects.

Core Technical Parameter Specifications

Channel Configuration：4 independent fully isolated voltage analog output channels

Output Type：Voltage-only dedicated output (no 4–20mA current signal support)

Resolution：15-bit plus sign bipolar high-precision DAC conversion

Configurable Voltage Ranges：±10V, 0–10V, 0–5V, 1–5V software selectable via Studio 5000

Full-Scale Accuracy：±0.2% FS ultra-low voltage output error

Isolation Standard：500VAC / 710VDC per-channel reinforced isolation (1-minute withstand test)

Total Conversion Time：120ms for all four channels synchronous refresh

Max Heat Dissipation：2.0W low power consumption full-load operation

External Power Requirement：20.4–26.4VDC Class 2 regulated industrial power supply

Built-in Protection：Overvoltage, short-circuit and surge suppression per channel

Mounting Method：Standard DIN rail and metal panel dual mounting design

Operating Temperature：0℃ ~ +60℃ continuous stable industrial operation

Certifications：UL, CSA, CE, Class I Div 2 hazardous location compliance; IEC EMC anti-interference certified

Per-Channel Isolation + Pure Voltage Exclusive Dual Core Advantages

Two exclusive design features separate 1769-OF4VI from other analog output modules in the 1769 lineup: 1. Full independent channel isolation: Unlike standard 1769-OF4 (group isolation) and OF8V (no channel isolation), every voltage channel carries standalone galvanic isolation barriers. It completely eliminates cross-channel signal crosstalk and ground loop drift caused by potential difference between field equipment and control cabinet ground, ideal for long-distance analog wiring and multi-ground distributed process systems. 2. Dedicated voltage-only circuit optimization: Remove redundant current output hardware compared with universal OF4/OF4CI modules. The internal circuit is purely tuned for voltage signal stability, achieving lower temperature drift and tighter full-scale accuracy for proportional valves, frequency converter voltage speed regulation and analog instruments that only require voltage input.

Equipped with multi-level EMC protection circuits, the module resists electromagnetic noise from high-power motors and inverters in heavy industrial workshops. Independent channel fault diagnosis via Studio 5000 enables single-channel abnormality positioning without affecting other output loops. Front panel LED indicators provide real-time module running, communication and channel fault feedback to simplify on-site debugging and maintenance.

Targeted Expansion & System Retrofit Compatibility

AllenBradley 1769-OF4VI adopts unified single-slot form factor and standard 1769 backplane bus protocol, fully compatible with all CompactLogix L2x/L3x series controllers and Compact I/O racks. For projects that only need voltage analog control and face severe signal interference, it avoids two sets of module configurations (isolated universal module + voltage-only module), cutting cabinet space occupation and overall procurement cost.

It supports plug-and-play replacement for ordinary group-isolated analog modules during factory renovation, with no cabinet modification or program reconstruction required. Matched with EtherNet/IP communication adapters, it builds stable isolated multi-point voltage regulation for distributed process control architectures. Compared with 8-channel isolated OF8C/OF8V series, the 4-channel layout avoids function redundancy for small-scale 2–4 point voltage closed-loop control, achieving higher cost performance.

Industrial Application Scenarios

AllenBradley 1769-OF4VI is widely deployed in high-noise, ground-loop-prone process automation that only requires voltage analog output: chemical production precision valve adjustment, pharmaceutical closed-loop temperature/pressure control, water treatment multi-station voltage regulation, packaging machinery frequency converter speed analog control, environmental monitoring instrument calibration and outdoor distributed analog control equipment.

North American high-standard process OEMs adopt OF4VI for isolated voltage standardized equipment design to guarantee long-term signal consistency. Latin American chemical and sewage factories deploy the module to solve chronic voltage signal jitter and drift issues. European precision manufacturing projects rely on its per-channel isolation performance to improve finished product uniformity and reduce production reject rates.
