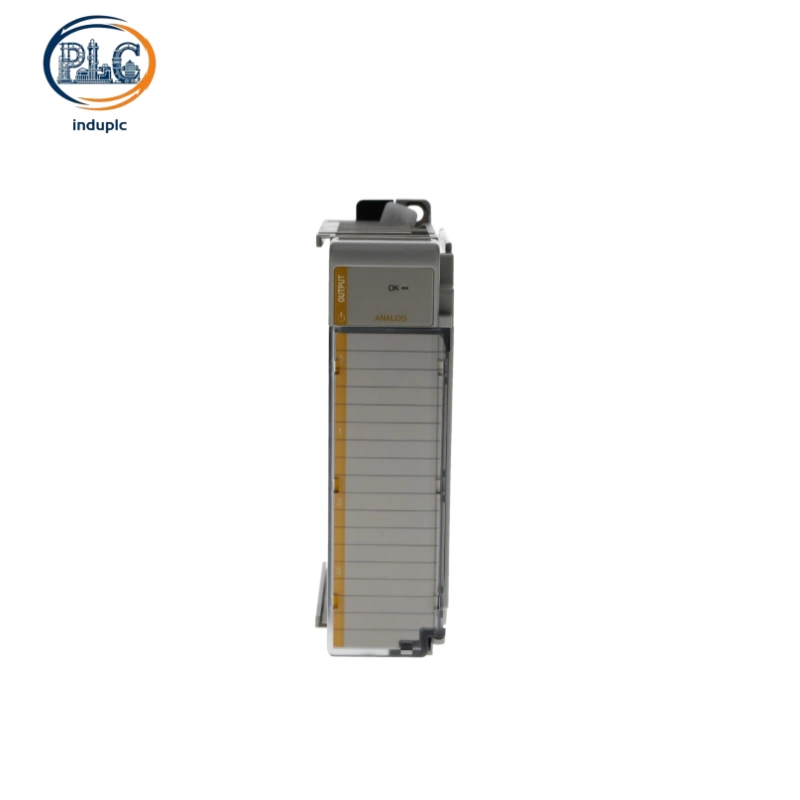

Allen-Bradley 1769-OF4 is a high-density 4-channel universal analog output module designed for 1769 CompactLogix automation systems. As an upgraded expansion model of the 2-channel 1769-OF2, it supports programmable voltage and current dual signal output in a single slot. With reinforced isolation, stable precision and multi-range adaptability, it is ideal for medium-scale process control, multi-point analog actuator regulation and factory system upgrade projects.

Core Technical Parameter Specifications

Channel Configuration：4 independent universal analog output channels

Output Signal Type：Programmable dual-mode voltage / current output

Voltage Output Ranges：±10V, 0–10V, 0–5V, 1–5V configurable via software

Current Output Ranges：0–20mA, 4–20mA standard industrial loop signals

Output Accuracy：Voltage ±0.3% FS / Current ±0.4% FS full-scale error

Stability Performance：±0.05% nonlinearity and repeatability error

Signal Response Speed：Less than 10ms fast analog response

Isolation Rating：500VAC / 710VDC group-to-backplane reinforced insulation

Built-in Protection：Short-circuit protection and overvoltage protection

External Power Supply：20.4–26.4VDC industrial regulated power

Operating Environment：0℃ ~ +60℃ continuous working temperature

Certifications：UL, CSA, CE global industrial safety compliance

Multi-Channel Expansion & Universal Analog Regulation Performance

Different from the dual-channel 1769-OF2, the AllenBradley 1769-OF4 provides four independent analog output channels in one slot, effectively improving cabinet I/O density and meeting multi-point process regulation demands. Each channel supports free switching of voltage and current modes through Studio 5000, adapting to diverse field analog devices including variable frequency drives, proportional regulating valves, transmitters and analog display meters.

Equipped with professional temperature drift suppression circuits and anti-interference design, the module maintains high output precision under variable temperature and complex electromagnetic workshop environments. Independent channel isolation eliminates cross-signal crosstalk, while built-in overload protection avoids module burnout caused by wiring errors. Real-time channel fault diagnosis function supports rapid abnormality positioning, greatly simplifying daily system maintenance and debugging work.

High-Density Expansion & Legacy System Retrofit Advantages

AllenBradley 1769-OF4 features standard 1769 backplane bus protocol, fully compatible with all CompactLogix L2x/L3x series controllers and Compact I/O racks. Its 4-channel high-density design is more cost-efficient for medium-scale multi-point analog control scenarios, avoiding repeated module stacking and optimizing cabinet space layout compared with low-channel analog modules.

It serves as an ideal upgrade replacement for outdated low-density analog output modules. Consistent installation dimensions and communication protocols support plug-and-play replacement without cabinet modification or program restructuring. Matched with EtherNet/IP adapters, it realizes stable remote multi-channel analog output control, perfectly adapting to incremental renovation of hybrid-brand process control systems and automated production lines.

Industrial Application Scenarios

AllenBradley 1769-OF4 is widely deployed in medium-scale process automation and multi-point precision regulation scenarios, including multi-station temperature and pressure closed-loop control, multi-group flow valve adjustment, equipment speed analog regulation and batch production parameter calibration systems.

North American process equipment OEMs adopt the module for standardized multi-channel analog control design to improve equipment integration. Latin American light industry and chemical auxiliary factories deploy 1769-OF4 for stable multi-point analog signal output of batch production lines. European automation projects rely on its high-density and high-precision performance to enhance overall process control stability and product consistency.
