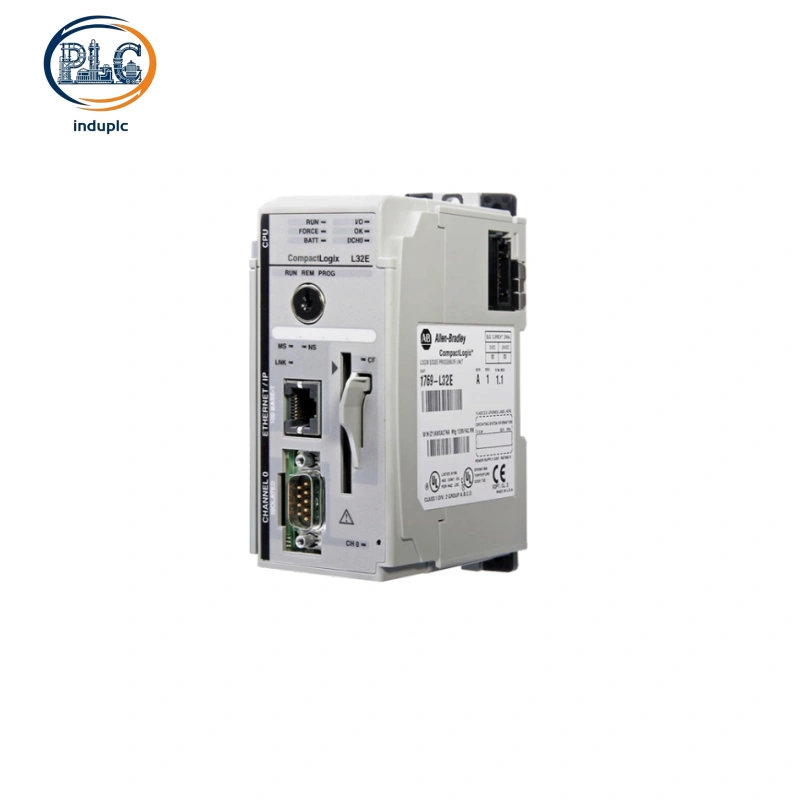

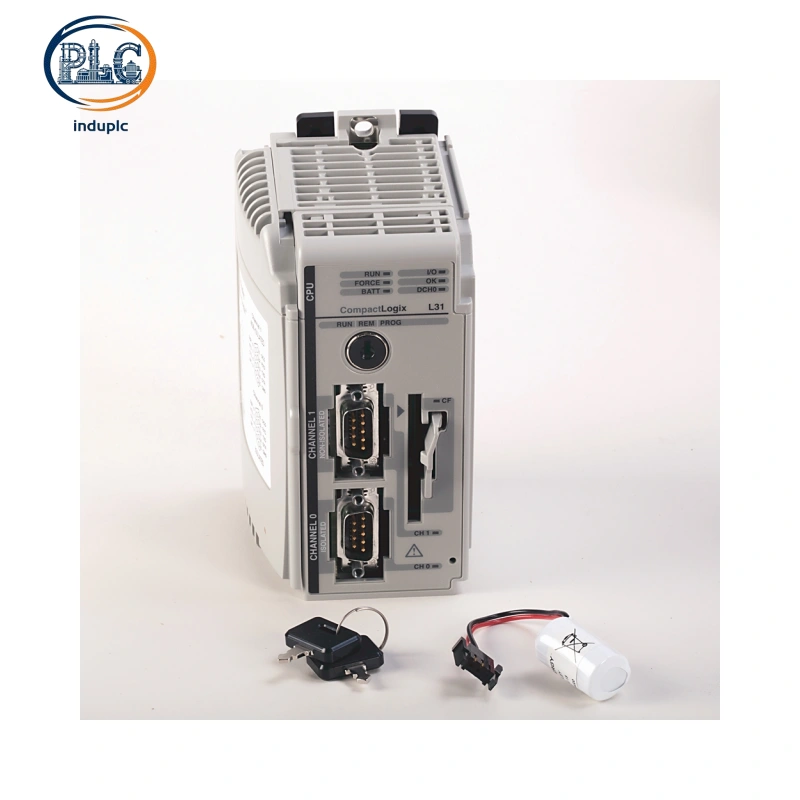

Allen-Bradley 1769-L32E is a legacy single-EtherNet/IP CompactLogix PLC controller with 750KB user memory. Designed for mid-size discrete automation and Ethernet-based distributed I/O systems, it serves as a mainstream retrofit replacement for aging serial and ControlNet CPUs, widely used in existing factory maintenance and equipment upgrade projects.

Core Technical Parameter Specifications

User Memory：750KB program and data storage capacity

Network Port：Single 10/100Mbps EtherNet/IP Ethernet port

Auxiliary Port：Isolated RS-232 serial port (max 38.4kbps baud rate)

Local I/O Capacity：Supports up to 16pcs 1769 Compact I/O modules

I/O Configuration：Max 3 configurable I/O banks

Backplane Current Draw：660mA @5VDC, 90mA @24VDC

Extended Storage：Supports 1784-CF64 CompactFlash memory card

Operating Temperature：0℃ ~ +60℃ industrial working range

Certifications：UL, CSA, CE, Class I Div 2 hazardous location compliance

Lifecycle Status：Discontinued (End of Sale: Dec 16, 2020)

Single Ethernet Architecture & Dual Communication Compatibility

Different from ControlNet-based 1769-L32C and dual-port modern L30ER series, the 1769-L32E adopts classic single-Ethernet design, focusing on stable standard EtherNet/IP network communication. It supports controller networking, HMI connection, and remote I/O data transmission, fully meeting conventional factory Ethernet architecture demands.

The reserved isolated RS-232 serial port provides flexible secondary communication, compatible with DF1, DH-485 and ASCII protocols. It allows direct connection with barcode scanners, weighing instruments and legacy serial field devices without additional communication modules. Unified Studio 5000 programming ensures consistent project development, debugging and fault diagnosis workflows.

Mid-Range Control Performance & Legacy System Retrofit Value

With 750KB memory, 1769-L32E delivers stronger logic processing capability than entry-level L31 serial controllers, supporting complex sequence control, data logging and multi-device interlock logic. The 16-module local I/O expansion capacity balances cost and performance, ideal for medium-sized standalone machinery and small-batch production lines.

As a widely used legacy PLC model, 1769-L32E is the preferred drop-in replacement for outdated CompactLogix CPUs. It features full compatibility with all 1769 I/O racks and modules, requiring no cabinet or wiring modifications during upgrades. It effectively bridges legacy serial/ControlNet systems and modern Ethernet automation architectures, lowering factory renovation costs.

Industrial Application Scenarios

AllenBradley 1769-L32E is extensively applied in traditional discrete manufacturing equipment, including packaging machinery, material handling systems, assembly lines and factory auxiliary monitoring systems. It is primarily used for old equipment maintenance, spare part replacement and incremental system upgrades.

North American mechanical OEMs utilize the controller for after-sales maintenance of old Ethernet automated machines. Latin American manufacturing plants deploy 1769-L32E to stabilize mid-sized production line logic control. European industrial automation teams rely on its mature compatibility for long-term operation and incremental transformation of legacy factory systems.
