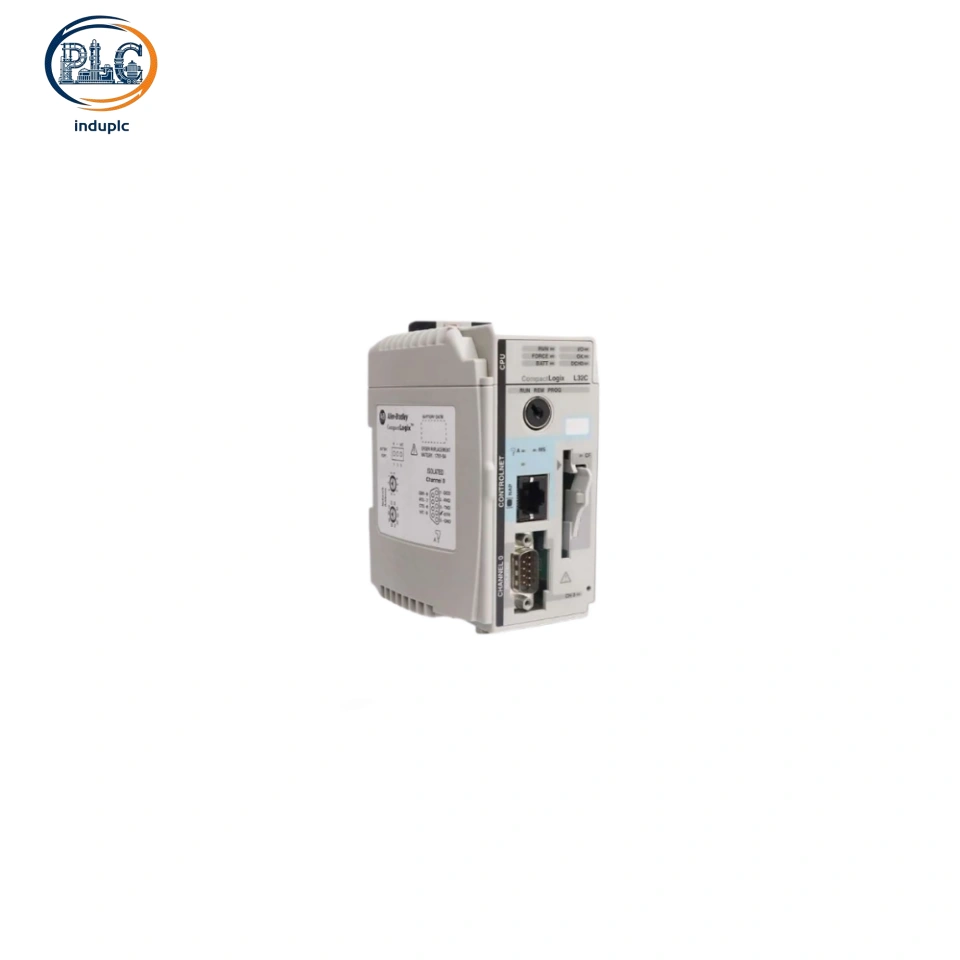

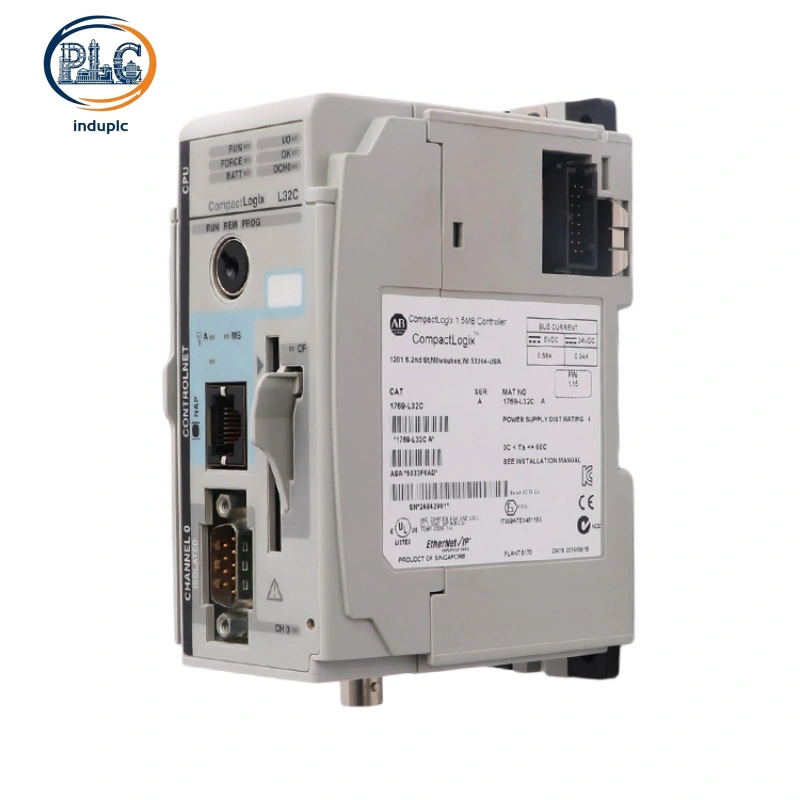

Allen-Bradley 1769-L32C is a dedicated ControlNet-based CompactLogix PLC controller with 750KB user memory. Integrated with native ControlNet communication and auxiliary RS-232 serial ports, it provides stable medium-scale logic control and deterministic network scheduling for industrial bus-based automation systems and legacy ControlNet retrofit projects.

Core Technical Parameter Specifications

User Memory：750KB program and data storage capacity

Main Network Interface：Integrated ControlNet Channel A port

Auxiliary Communication：Isolated RS-232 serial interface

Network Function：Built-in ControlNet network coordinator

Max Local I/O Expansion：Supports up to 16 pieces of 1769 Compact I/O modules

I/O Bank Quantity：Maximum 3 configurable I/O banks

Data Backup：Compatible with 1769-BA backup battery for data retention

Operating Temperature：0℃ ~ +60℃ continuous industrial operation

Industry Certifications：UL, CSA, CE global EMC safety compliance

ControlNet Deterministic Bus & Multi-Communication Compatibility

Different from serial-only 1769-L31 and Ethernet-based L30ER series controllers, the AllenBradley 1769-L32C centers on ControlNet deterministic bus control. It features fixed-cycle data scheduling and precise network synchronization, eliminating random communication delay issues, which is critical for high-stability industrial production and process control scenarios.

The reserved RS-232 serial port supports DF1, DH-485 and ASCII protocols, enabling flexible connection with serial scanners, instruments and auxiliary field devices. Unified Studio 5000 programming environment simplifies configuration, logic editing and network diagnosis. The automatic network backup function prevents configuration loss and ensures long-term stable bus system operation.

Medium-Scale Control & Legacy Bus System Retrofit

AllenBradley 1769-L32C delivers upgraded 750KB memory performance, supporting more complex sequential control, data logging and interlock logic compared with entry-level CompactLogix CPUs. Its 16-point I/O expansion capacity and 3-bank layout fully meet medium-sized automated equipment and small production line control demands.

It serves as the core replacement unit for aging ControlNet-based PLC systems. Fully compatible with all standard 1769-series I/O modules, it requires no cabinet modification or wiring overhaul during upgrades. The native ControlNet protocol ensures seamless docking with legacy bus drives, HMI and remote I/O equipment, greatly reducing renovation costs and project downtime.

Industrial Application Scenarios

AllenBradley 1769-L32C is widely deployed in industrial scenarios requiring deterministic bus communication, including process auxiliary control, automated assembly lines, material handling systems and traditional ControlNet factory network renovation projects.

North American industrial enterprises adopt the controller for stable bus network control of medium-sized production lines. Latin American manufacturing factories deploy 1769-L32C to upgrade and maintain legacy ControlNet automation systems. European industrial maintenance teams rely on its deterministic transmission performance to ensure consistent operation of high-precision process control equipment.
