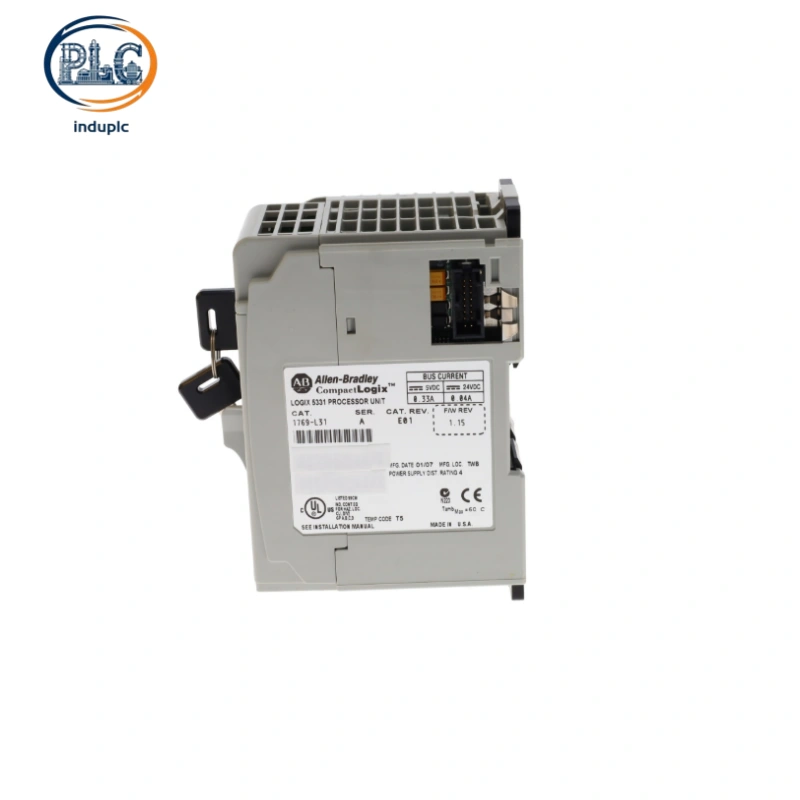

Allen-Bradley 1769-L31 is a classic CompactLogix serial-based PLC controller built for lightweight industrial automation and legacy system retrofits. Equipped with 512KB user memory and dual RS-232 serial ports, it delivers stable standalone logic control and serial device communication for small-scale machinery and traditional factory control architectures.

Core Technical Parameter Specifications

User Memory：512KB program and data storage capacity

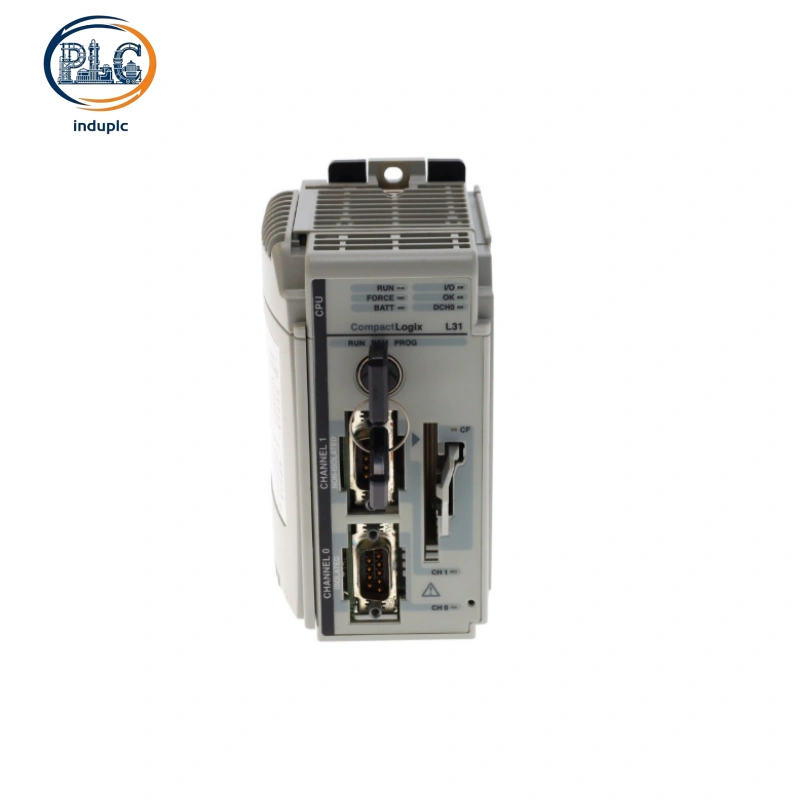

Communication Ports：Dual RS-232 serial interfaces (CH0 isolated / CH1 non-isolated)

Serial Protocols：Supports DF1, DH-485 and ASCII industrial protocols

Max Baud Rate：38.4 kbps high-speed serial transmission

I/O Expansion Capacity：Supports up to 16 local 1769 Compact I/O modules

Data Backup：Compatible with 1747-BA battery and CF memory card storage

Insulation Grade：Basic 30V continuous system insulation protection

Operating Temperature：0℃ ~ +60℃ standard industrial range

Certifications：UL, CSA, CE global industrial compliance

Dual Serial Port Design & Legacy Communication Compatibility

Unlike modern Ethernet-based CompactLogix CPUs, the AllenBradley 1769-L31 focuses purely on serial communication control, making it a core solution for old workshop equipment retaining RS-232 field devices. The dual-port differentiated design enables multi-task communication: the isolated CH0 port ensures stable data transmission in interference-prone environments, while the non-isolated CH1 port handles system-level debugging and auxiliary communication tasks.

Supporting mainstream industrial serial protocols, this controller seamlessly connects with traditional serial printers, barcode scanners, weighing instruments and old third-party sensors. Adopting standard Studio 5000 programming logic, it maintains consistent Logix control architecture, lowering program migration difficulty during equipment renovation.

Lightweight Control & System Retrofit Advantages

AllenBradley 1769-L31 features a compact single-slot structure and flexible I/O expansion, perfectly matching small-batch production equipment and standalone automated machinery. The 512KB memory fully meets simple logic control, timing counting and serial data acquisition demands, achieving cost-effective lightweight automation deployment.

It serves as the optimal replacement for aging compact controllers in legacy factory upgrades. Retaining complete compatibility with all 1769-series I/O modules, it requires no chassis and wiring modifications. Its exclusive serial positioning fills the gap of non-Ethernet industrial control scenarios, adapting to old production lines that do not need EtherNet/IP networking transformation.

Industrial Application Scenarios

AllenBradley 1769-L31 is widely used in small discrete manufacturing equipment, standalone packaging machines, auxiliary workshop monitoring systems and legacy production line renovation projects that rely on serial communication.

North American light machinery OEMs deploy the controller for low-cost standalone automation equipment. Latin American traditional processing factories adopt 1769-L31 to maintain and upgrade old serial control systems. European industrial maintenance teams utilize this classic serial CPU for stable long-term operation of reserved legacy production lines.
