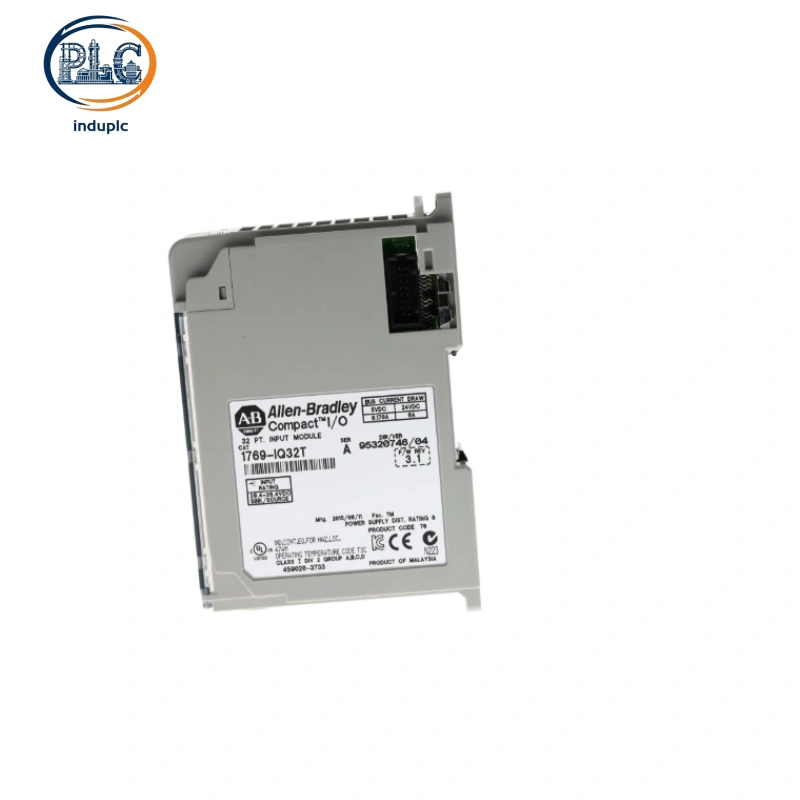

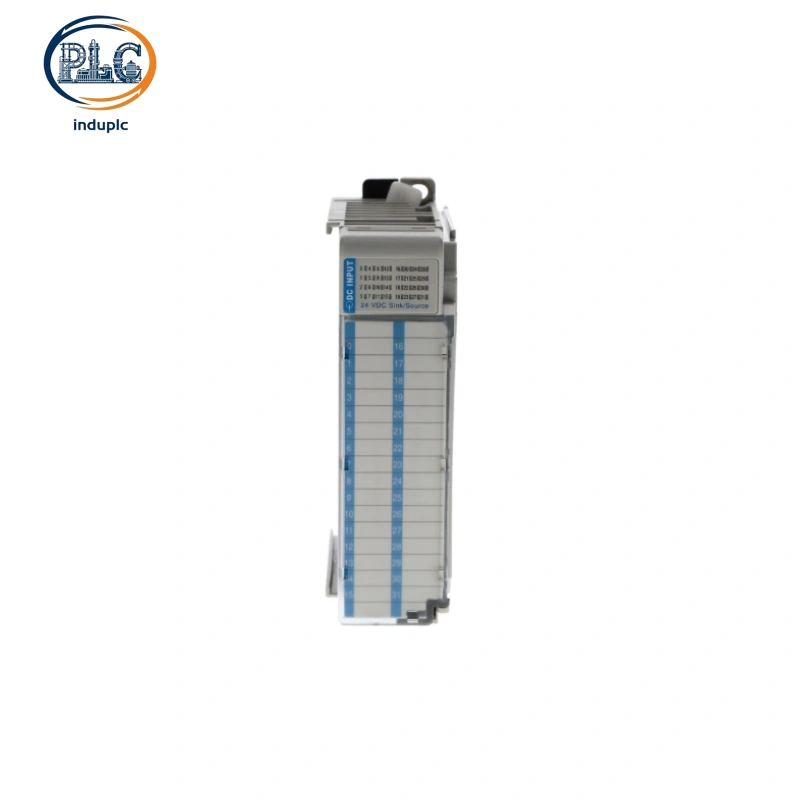

Allen-Bradley 1769-IQ32T is a high-density terminated 24VDC digital input module for 1769 CompactLogix systems. Featuring integrated terminal design, it eliminates external terminal blocks and simplifies field wiring, delivering efficient large-scale discrete signal acquisition for compact industrial automation and equipment retrofits.

Core Technical Parameter Specifications

Channel Configuration：32-point high-density terminated DC input channels

Signal Wiring Mode：Universal sink/source dual-mode compatibility

Filter Delay Options：Multi-grade adjustable filtering (100μs to 8ms)

Backplane Power Consumption：170mA maximum current @5VDC

Insulation Rating：1200VAC one-minute reinforced dielectric isolation

Operating Temperature：0℃ ~ +60℃ continuous industrial operation

Design Feature：Built-in terminated interface, no external terminals required

Certifications：UL, CSA, CE global industrial safety compliance

Integrated Terminated Design & Wiring Optimization Advantages

Different from standard 1769-IQ32 modules, AllenBradley 1769-IQ32T adopts a factory-terminated integrated structure, removing the need for matching external terminal blocks. This one-piece design cuts wiring accessories and assembly steps, effectively reducing on-site wiring errors and improving construction efficiency.

The module supports flexible multi-speed digital filtering to adapt to different field interference environments, filtering instantaneous voltage jitter and electromagnetic noise from inverters and power equipment. Compatible with full Studio 5000 configuration functions, AllenBradley 1769-IQ32T supports real-time signal monitoring, channel status diagnosis and parameter debugging, lowering daily system maintenance costs.

Space-Saving Expansion & Factory Retrofit Adaptability

AllenBradley 1769-IQ32T retains full compatibility with all 1769 Compact I/O chassis and CompactLogix L2x/L3x series controllers. The integrated terminal structure further optimizes cabinet space utilization, making it ideal for ultra-compact equipment cabinets and high-density I/O layout scenarios.

It serves as an upgraded replacement for traditional high-density DC input modules in legacy factory renovation projects. The unified sink/source wiring mode matches all mainstream 24VDC sensors and switch devices. Paired with EtherNet/IP adapters, it achieves stable mass discrete signal transmission, supporting seamless integration of hybrid-brand automation systems.

Industrial Application Scenarios

AllenBradley 1769-IQ32T is widely deployed in discrete manufacturing scenarios requiring dense signal collection and simplified wiring, including automated assembly lines, high-speed packaging machinery, logistics sorting systems and intelligent processing equipment.

North American equipment OEMs use AllenBradley 1769-IQ32T for standardized machine I/O design to reduce after-sales wiring faults. Latin American manufacturing factories deploy the module for efficient signal monitoring of batch production lines. European automation projects rely on its integrated terminal design to optimize cabinet layout and enhance long-term operational stability of automated systems.
