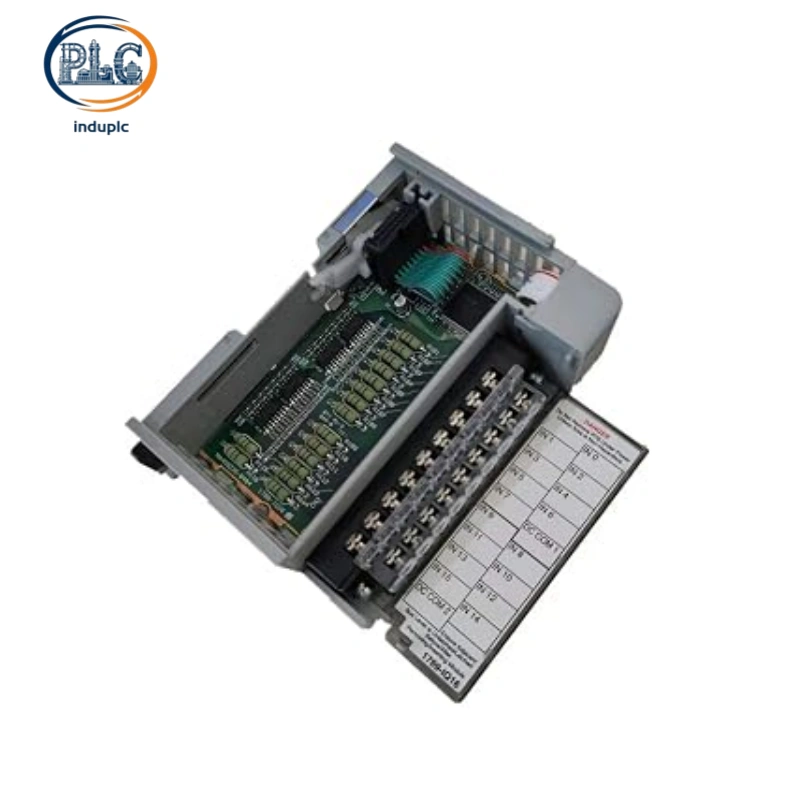

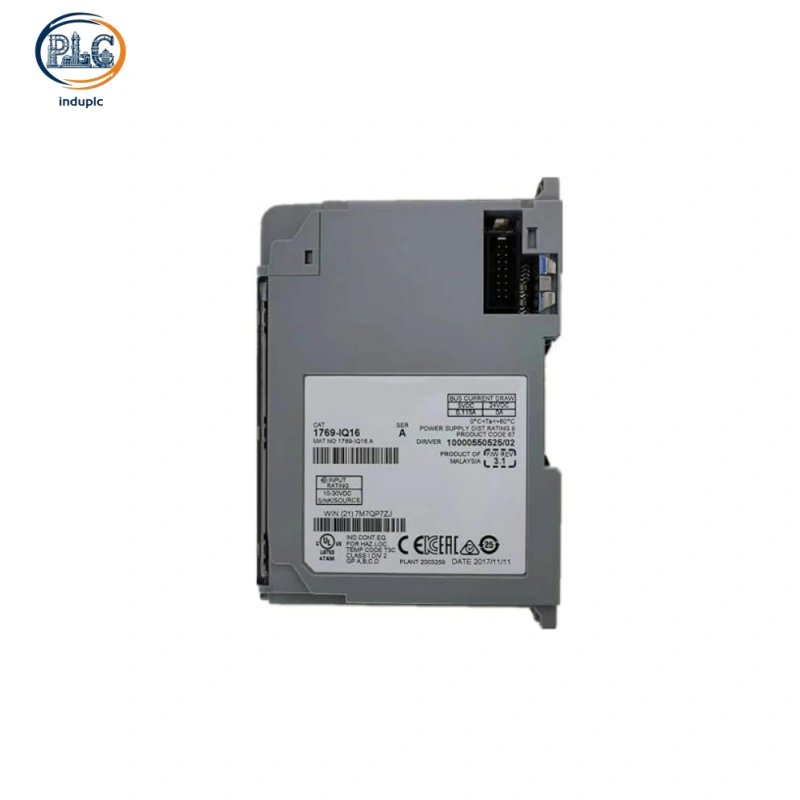

Allen-Bradley 1769-IQ16 is a high-density 16-channel DC digital input module designed for Rockwell 1769 CompactLogix I/O systems. Supporting universal sink/source signal mode, it delivers flexible 24VDC signal acquisition for high-volume discrete sensor and switch monitoring in automated manufacturing environments.

Core Technical Parameter Specifications

Input Channel Density：16 points grouped in 2 isolated banks (8 points each)

Signal Input Mode：Universal sink/source dual-mode compatibility

Dynamic Operating Voltage：10–30VDC (@30℃) / 10–26.4VDC (@60℃)

Fixed Input Response Delay：8ms on-delay & 8ms off-delay standard timing

Backplane Power Consumption：115mA maximum current draw at 5.1VDC

Dielectric Insulation Rating：1200VAC 1-minute reinforced isolation protection

Continuous Operating Temperature：0℃ ~ +60℃ industrial ambient range

Industrial Compliance：UL, CSA, CE certified for global factory deployment

High-Density Layout & Flexible Signal Compatibility

AllenBradley 1769-IQ16 features high-density 16-point input design, saving cabinet slot space compared with low-channel I/O modules. The dual 8-point group isolation structure limits fault propagation, ensuring abnormal signals in one group will not interfere with normal operation of another channel bank.

A key advantage of AllenBradley 1769-IQ16 is its universal sink/source support, which eliminates the need to replace modules for different field sensor wiring modes. Fixed 8-millisecond input filtering effectively filters out instantaneous voltage jitter and industrial electromagnetic interference, maintaining stable and accurate signal recognition in high-frequency workshop operating conditions. The module supports one-click configuration via Studio 5000, simplifying field debugging and routine signal calibration.

Compact System Expansion & Retrofit Adaptability

AllenBradley 1769-IQ16 is fully compatible with all standard 1769 Compact I/O chassis and CompactLogix controller series. Its single-slot high-density design is ideal for cabinet space-constrained production lines, allowing users to expand more monitoring points without modifying cabinet layout.

For legacy factory renovation projects, AllenBradley 1769-IQ16 serves as a versatile replacement for older low-density DC input modules. It matches mainstream 24VDC proximity sensors, photoelectric switches and mechanical limit switches on the market. With standard backplane bus protocol, the module can stably dock with third-party EtherNet/IP gateways, realizing seamless signal integration for hybrid-brand automation systems.

Global Industrial Deployment & Typical Application Scenarios

AllenBradley 1769-IQ16 is widely deployed in global discrete manufacturing fields that require large-scale DC signal collection. Its high-density, low-power and strong anti-interference features make it suitable for automated assembly lines, packaging machinery, material handling and logistics sorting equipment.

North American automotive component factories use AllenBradley 1769-IQ16 to collect mass sensor signals for assembly station state feedback. Latin American packaging and food processing plants adopt the module for high-density switch signal monitoring on high-speed production lines. European mechanical automation OEMs integrate AllenBradley 1769-IQ16 into standardized machine control systems to improve equipment signal acquisition efficiency and operational stability.
