Core Technical Specifications

Analog Input Channels：8 channels Input Signal Range：4–20 mA / 0–10 VDC selectable A/D Conversion Resolution：16 bit Full Scale Accuracy：±0.1% F.S. Galvanic Isolation Rating：500 VAC channel-to-bus Single Channel Update Time：1 ms Operating Temperature Range：-20℃ ~ +70℃ Mounting Compatibility：ABB S800 I/O backplane

Regional Deployment & Project Applications

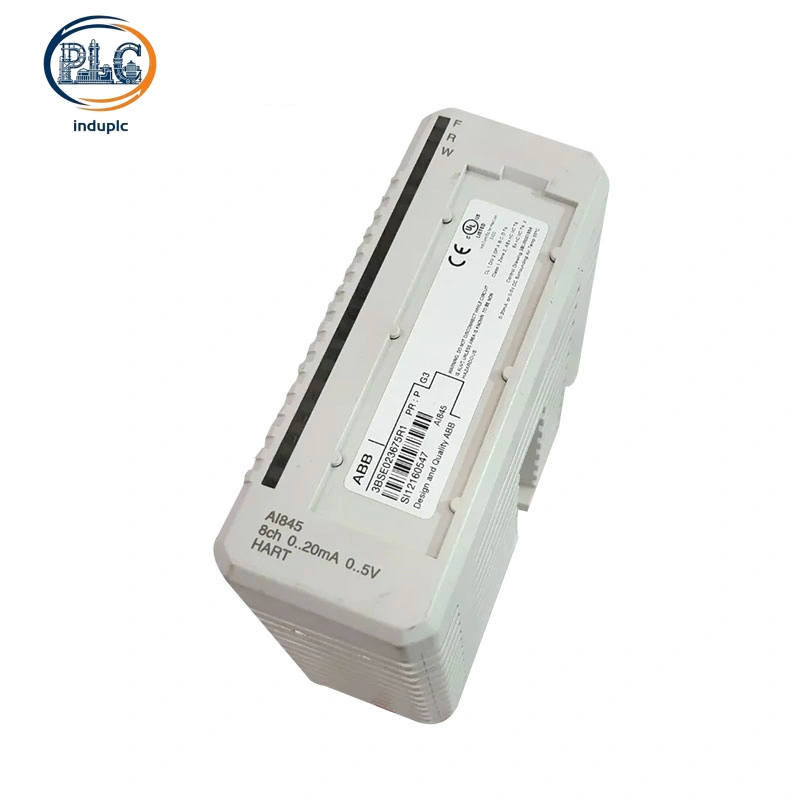

ABB AI845 delivers stable analog signal acquisition for industrial projects across the Middle East, Western Europe and Nordic regions. Oil and gas production facilities in UAE and Saudi Arabia deploy ABB AI845 to collect pipeline pressure, flow and temperature transmitter data. Medium-voltage distribution substations in Sweden and Finland use the module for real-time transformer operating parameter tracking. Wastewater treatment plants in Germany and Norway rely on ABB AI845 for continuous filtration system and chemical dosing process monitoring. Food and beverage production lines in Benelux countries apply the module for raw material processing variable acquisition and closed-loop control feedback.

System Compatibility & Expandability

Same-brand Ecosystem Integration

ABB AI845 natively fits ABB S800 series I/O backplanes and ModuleBus communication architecture. The module works seamlessly with ABB AC800M, AC800F process controllers and 800xA DCS platforms. No extra adapters are required for rack mounting and data transmission with ABB PM8xx CPU units. Built-in channel self-diagnosis function supports ABB Asset Management Software for predictive maintenance scheduling.

Third-party Hardware Compatibility

Exclusive S800 communication protocol blocks direct backplane docking with non-ABB PLC control systems. Standard 4-20mA and 0-10V input standards allow ABB AI845 to connect with most mainstream field transmitters without extra signal conditioning. Protocol gateway devices are required to build data linkage between the module and Siemens, Schneider control racks. No internal circuit modification is needed for signal reception from third-party pressure, level and temperature field instruments.
