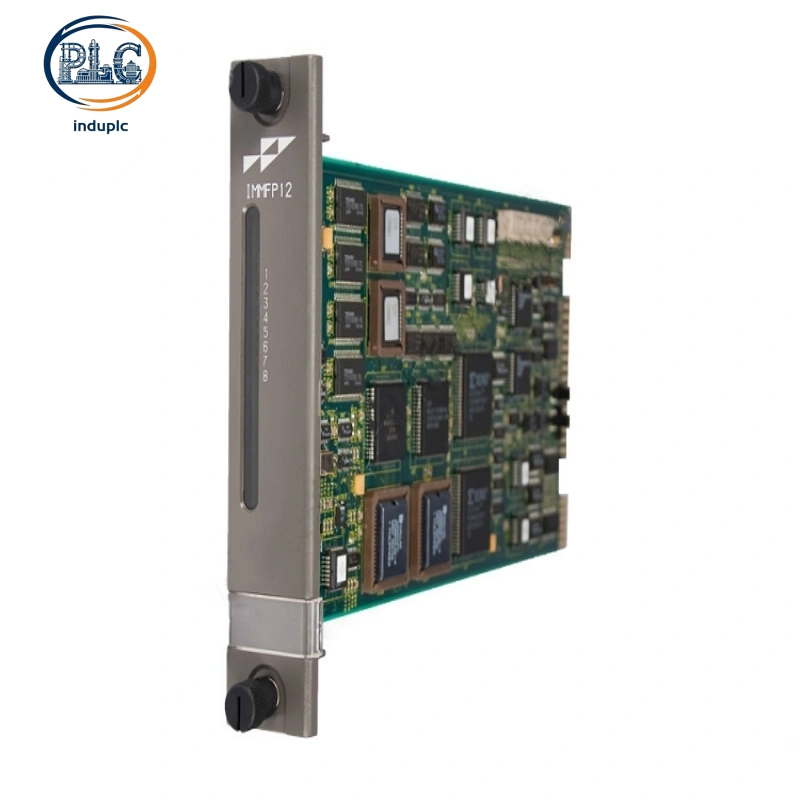

ABB IMMFP12 acts as core logic processing unit for legacy Bailey Infi 90 distributed control systems, delivering reliable sequential and continuous control for heavy industrial sites.

Core Technical Parameters

• Supply Voltage：5 VDC
• Core Architecture：16-bit embedded processor
• On-board Memory：128KB RAM + 128KB EPROM
• Serial Communication Ports：2 x RS-232
• Minimum Logic Scan Time：10 ms
• Operating Ambient Temperature：0℃ ~ +60℃
• Backplane Form Factor：Standard Infi 90 rack slot
• Channel Isolation Rating：1500 VAC

Regional Application & Project Deployment

North American thermal power retrofit projects deploy ABB IMMFP12 for boiler combustion loop control, extending service life of existing 300MW generator unit DCS hardware. Middle East seawater desalination plants integrate ABB IMMFP12 into feedwater pump control sequences, maintaining stable system pressure under variable seasonal load conditions. Southeast Asian pulp and paper production lines apply the processor for pulp washing consistency regulation, cutting raw material waste during round-the-clock continuous production runs. Western European fine chemical facilities leverage the module for batch reaction safety interlock control, aligning with EU industrial process safety specifications.

Compatibility & Expansion Capability

Bailey Ecosystem Compatibility

ABB IMMFP12 mounts directly into standard Infi 90 rack slots, pairing with Bailey IM series digital and analog I/O modules to build complete process control loops without auxiliary conversion hardware. Multi-rack configuration supports parallel deployment of multiple processor units to expand control coverage for large-scale production workshops.

Third-party System Interoperability

Proprietary backplane communication protocol restricts direct installation of ABB IMMFP12 onto non-Bailey control racks. External Modbus serial gateways enable data interconnection with mainstream third-party PLCs, with no internal circuit rework required for basic signal exchange.
