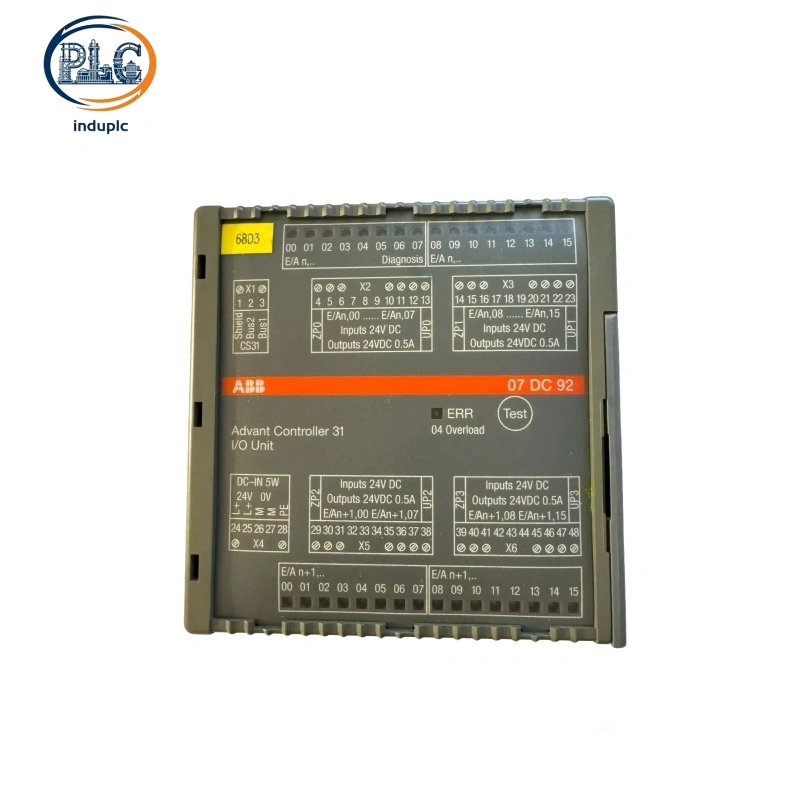

Technical Specifications

Rated Input Voltage：24 VDC Total Input Channels：16 channels Per-channel Input Current：7 mA Galvanic Isolation Voltage：250 VAC Typical Response Time：0.5 ms Operating Temperature Range：0 °C to +55 °C Mounting Method：DIN rail mounting Protection Rating：IP20 (front side)

Regional Deployment & Project Applications

ABB 07DC92 handles discrete signal acquisition for industrial projects across Western Europe, the Middle East, and Southeast Asia. In German automotive stamping workshops, ABB 07DC92 collects conveyor position switch signals and safety door status data for production line control systems. In UAE onshore oilfield auxiliary facilities, the module transmits pump running feedback and valve limit switch signals to local control cabinets under high-temperature operating environments. In Thai municipal sewage treatment plants, ABB 07DC92 connects with SCADA systems to monitor liquid level switch states and filter equipment operation status.

Compatibility & Expandability

Same-brand Compatibility

ABB 07DC92 natively matches ABB Advant AC31 series PLC mainframes. The module plugs directly into standard AC31 backplane slots with no additional adapter hardware. The module exchanges real-time signal data with AC31 CPU units via the internal system bus. The module supports synchronous operation with other AC31 digital and analog I/O modules.

Cross-brand Compatibility

ABB 07DC92 cannot dock directly with third-party PLC backplanes due to proprietary AC31 bus protocol limitations. External protocol conversion devices are required to transmit collected data to Siemens S7 series or Schneider Modicon control systems. The universal 24VDC input standard supports signal reception from most mainstream field contact sensors.
